High Quality Wire Braiding Machine for Metal Hose, High Speed Braiding Machine in China@

Comflex Industrial Co., Ltd.

Name：Stainless Steel Wire Braiding Machine
Wire Diameter：0.3mm To1.0mm
Gbg24- Gbg128：Braiding ID4 Till 400mm
ID of The Braids：4mm to 600mm
No.of Spindles：24 to 156 Spindle Braiding Machine
Material of Wires：Stainless Steel,Galvanized Carbon

Base Info

Model NO.：HLT
Application：for Metal Hose,Rubber Hose
Payment Term：T,T
Package：Standard Export Package
Warrant：One Year
Transport Package：Standard Seaworthy Package
Specification：GBG16 till GBG128 carrier
Trademark：HLT
Origin：Jiangsu, China
HS Code：844790900
Production Capacity：500 Sets,Year

Description

single decker Wire Braiding Machine
Type No.	Braid ID (mm)	rotation speed of spindle r/min	braiding angle	Pitch(mm)	pulling speed (m/h)	no.of carriers	Motor power(KW)
BG-16	4-10	24.8	54°44'	9-22	13-33	16	Y132M1-6 4.0KW
BG-20	6--13	19.8	54°44'	13-29	15-34.5	20	Y132M1-6 4.0KW
BG-24	10--31	14.25	54°44'	22--69	21--66	24	Y132M1-6 4.0KW
BG-36	15--45	10	54°44'	33--100	22--66	36	Y132M1-6 5.5KW
BG-48	30--75	7.25	54°44'	66--166	29--72	48	Y132M1-6 7.5KW
BG-64	51--110	4.56	54°44'	67--240	18.6--102	64	Y160L-6 11KW
BG-72	80--150	4.25	54°44'	170--330	44--83	72	Y160L-6 11KW
BG-96	150--400	2.75	54°44'	240--750	50--120	96	Y160L-6 11KW

Double decker wire braiding machine

Type No.Braid ID
(mm)rotation speed of spindle
r/minbraiding anglePitch(mm)pulling speed
(m/h)no.of carriersMotor power(KW)BG-2S164-1024.854°44'9-2213-3332Y132M1-6 5.5KWBG-2S206--1319.854°44'13-2915-34.540Y132M1-6 5.5KWBG-2S2410--3114.2554°44'22--6921--6648Y132M1-6 5.5KWBG-2S3615--451054°44'33--10022--6672Y132M1-6 6.0KWBG-2S4830--757.2554°44'66--16629--7296Y132M1-6 9.5KW

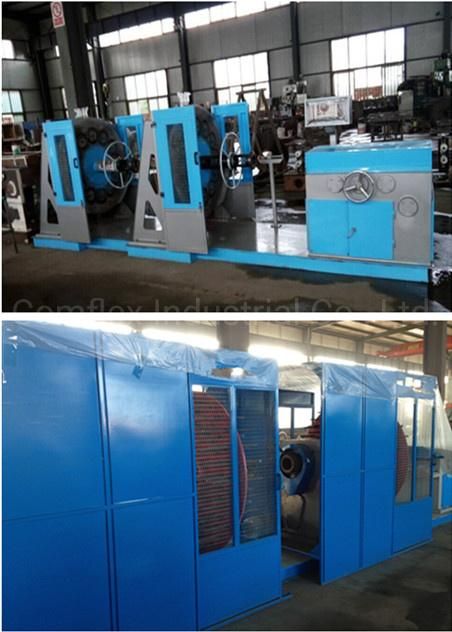

Double decker wire braiding machine
High Quality Wire Braiding Machine for Metal Hose, High Speed Braiding Machine in China@

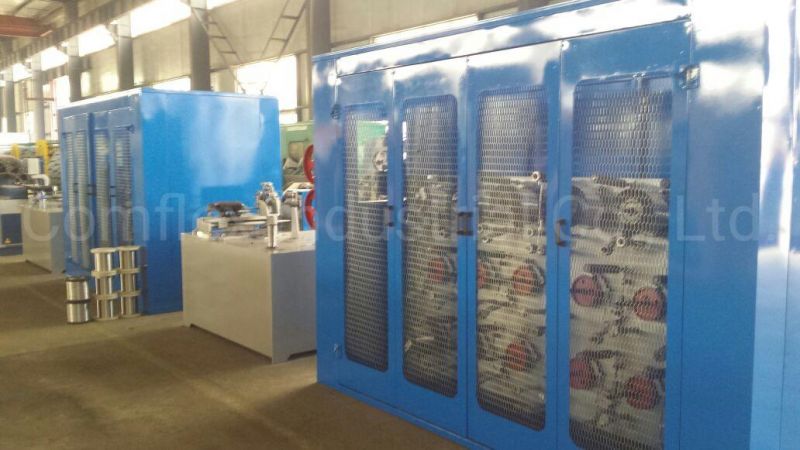

Single decker wire braiding machine

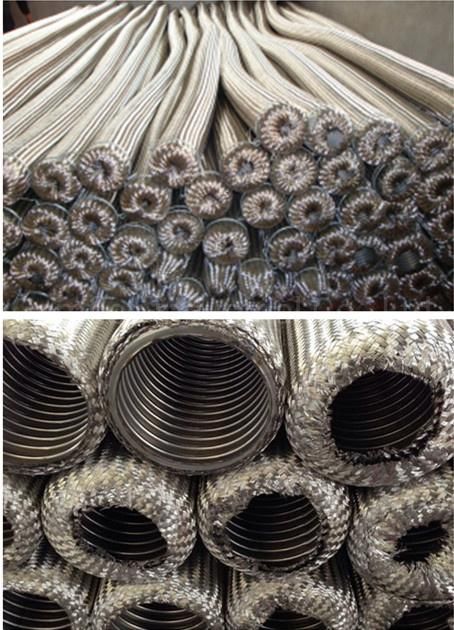

Picture of Wire Braided hose

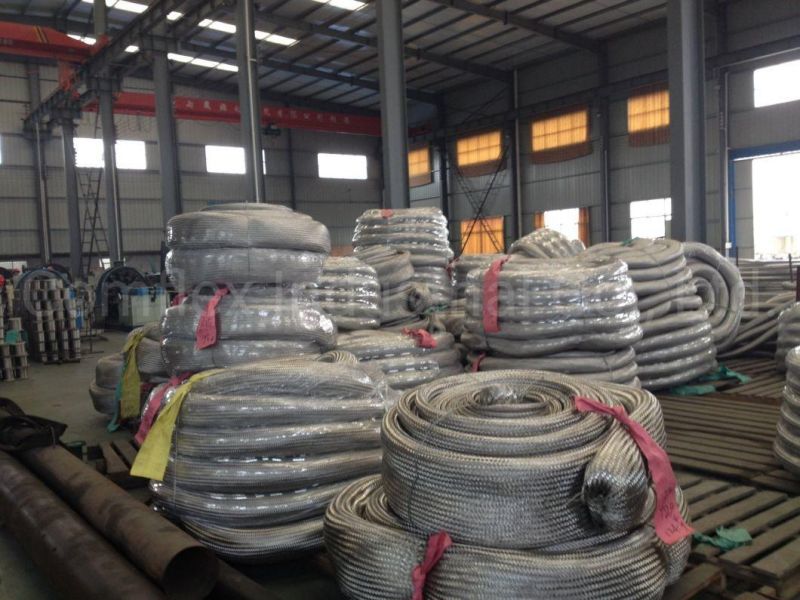

Wire braids

Related machine-Rewinding machine

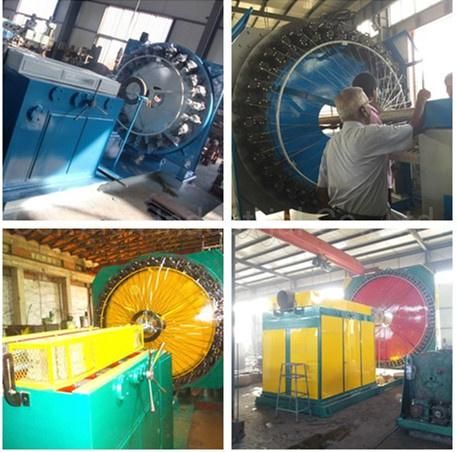

Our customer

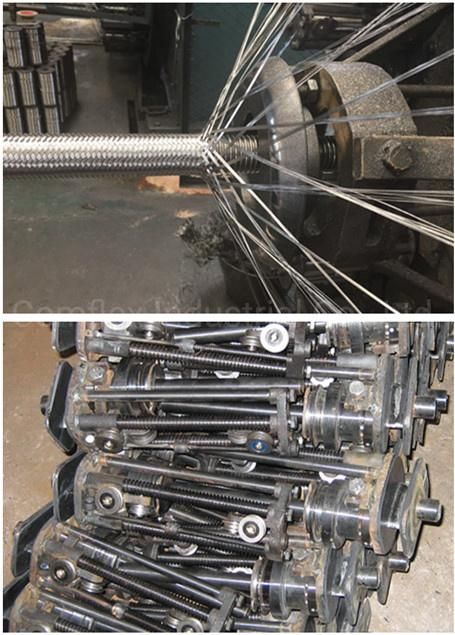

Parts of machine
High Quality Wire Braiding Machine for Metal Hose, High Speed Braiding Machine in China@

Certification

Package & Delivery

Company information
We are professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing.The sizes cover 16 carrier from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. Our braiding machines are horizontal types which enable heavy tensile strength.

Our service
Warranty period of one year
standard seaworthy package
Engineers available to service machinery overseas

FAQ for Steel Wire Braiding Machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc.
