• Model NO.：FMP1530
• Key Word：CNC Flame Plasma Cutting Machine
• Control System：Starfire , Start, Flmc-F2300
• Plasma Supply：Hypertherm Power , Lgk Power
• Auto Height Controller：Included
• Cutter Head：Plasma Cutter Head and Flame Cutter Head
• Motor：Step Motor (Optional Servo Motor )
• Plasma Current：65A, 85A, 100A, 160A, 200A
• Table-Board：Steel Blade Saw Tooth Mesa
• Support Software：Fastcam Nesting Software
• Transport Package：Standard Export Wooden Case
• Specification：3.5m*2.2m*1.6m
• Trademark：FIRMCNC
• Origin：Jinan Shandong China
• HS Code：8456401000
• Production Capacity：100 Set,Month

Basic Info.

Model NO. FMP1530 Key Word CNC Flame Plasma Cutting Machine Control System Starfire / Start/ Flmc-F2300 Plasma Supply Hypertherm Power / Lgk Power Auto Height Controller Included Cutter Head Plasma Cutter Head and Flame Cutter Head Motor Step Motor (Optional Servo Motor ) Plasma Current 65A, 85A, 100A, 160A, 200A Table-Board Steel Blade Saw Tooth Mesa Support Software Fastcam Nesting Software Transport Package Standard Export Wooden Case Specification 3.5m*2.2m*1.6m Trademark FIRMCNC Origin Jinan Shandong China HS Code 8456401000 Production Capacity 100 Set/Month

Product Description

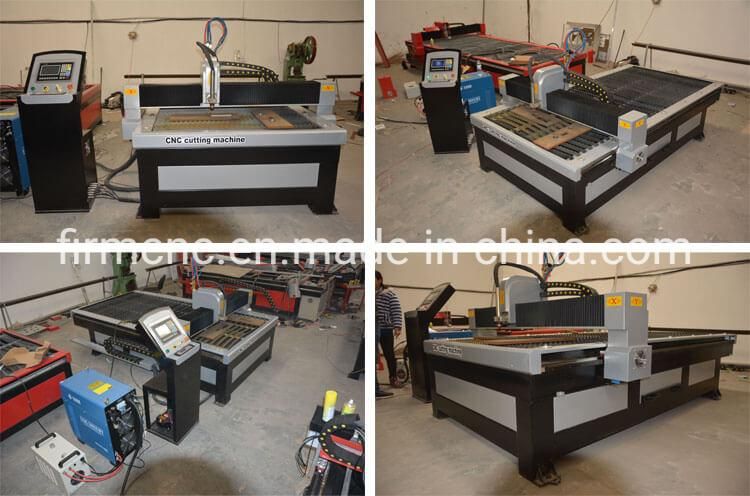

China Made Plasma Cutting Machine 1530 CNC Flame Cutter for Metal

Specification
1/ Two heads, plasma cutter head and flame cutter head
2/ Starfire cutting system/ start cutting sytem and FLMC-F2300A system optional
3/ Hypertherm power supply
4/ THC height controller system

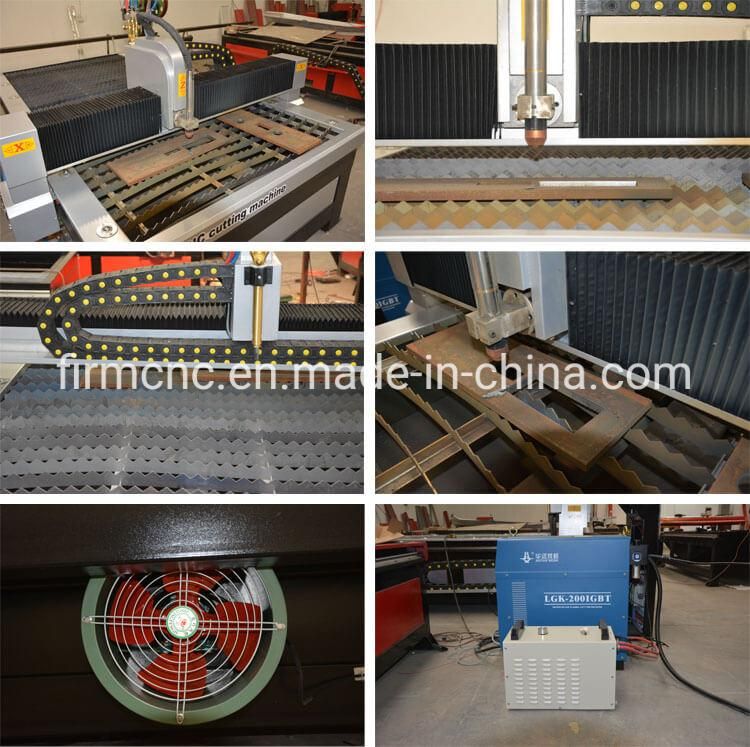

cnc plasma cutting machine features
> CUTTING SYSTEM/CONTROL SYSTEM PANEL--Starfire cutting system-SF-2100C/ Start cutting system/ FLMC-F2300A can be choose
> TWO HEADS, plasma cutter head and flame cutter head--cut high thickness metal materials.
>Blade and saw working table for choose,support heavy metal with high stabilit
> High precision square rail, and rack gear
> Roll ball, convenient to feed
>THC HEIGHT CONTROLLER--The numerical control system with high disposes,  the automatic striking arc, the performance is stable
Stuart cutting system panel, Auto Initial Height Sensing, Arc Voltage Divide etc
can cut different thickness, automatic height control, easy operation, high efficiency
> AIR COMPRESSOR--Optional parts , make the conversion of mechanical energy into pressure gas energy ,
then make the air clear with high performance


cnc plasma cutting machine technial specification

Model	FMP1530
Working  Area	3000x1500mm
Cutting speed	8-15m/min
Repeat positioning accuracy	±0.05mm
Process precision	±0.35mm
Motor	Step motor
Cutting thickness	0-30mm (depends on power supply)
Power	8.5KW
Transmission model	Gear rack drive
Input voltage	3 phase 380V
Power supply	LGK--63A,100A,160A,200A Hypertherm--65A,85A,105A,200A
Cutting system	Beijing Starfirecutting system (English)
Transmission system	X,Y Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack
Support software	Drawing software--CAD Nesting software--Australia fastcam software Cutting path file--artcam, type3 etc
Height control	arc voltage torch height controller
Guide way	Imported square rail
Table-board	Steel blade saw tooth mesa
Steel blade saw tooth mesa	Ray plug drives 860 (Sino-us joint venture large drives)
Working mode	Non-contact arc

CNC plasma cutting machine main configuration

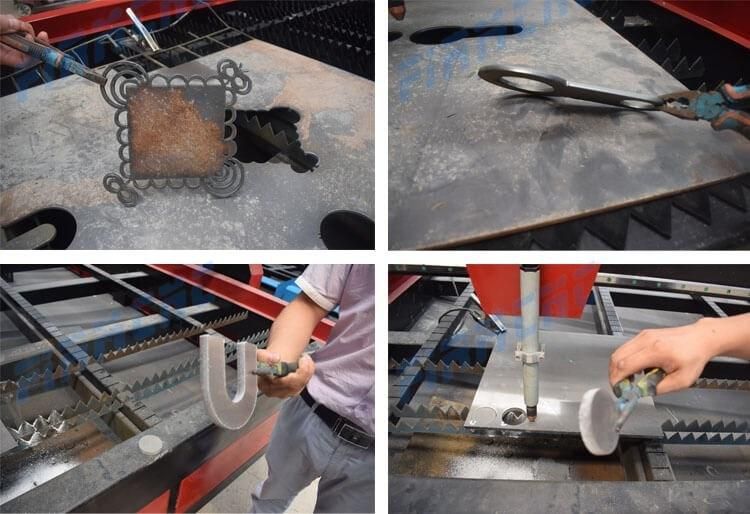

CNC plasma cutting machine application
For iron, aluminum, galvanized sheet, white sheet, titanium plate and other metal plates.
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting

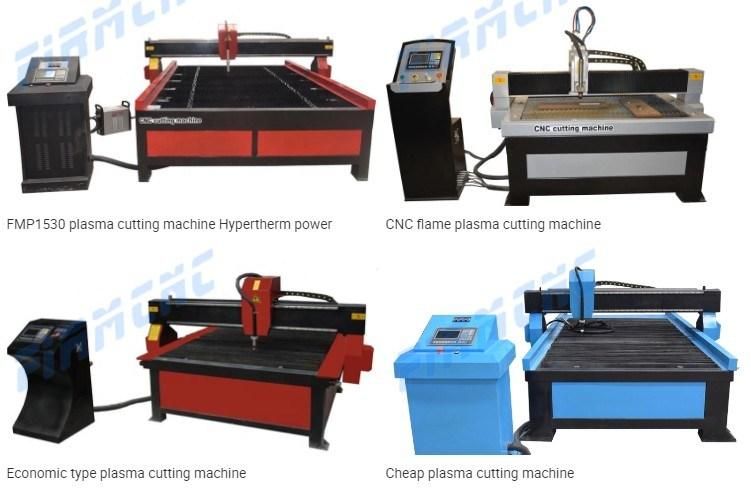

Other related plasma cutting machine for your reference
# Heavy duty cnc plasma cutting machine
# Economic type cnc plasma cutting machine
# Gantry cnc plasma cutting machine
# Flame plasma cutting machine
# cnc plasma cutting machine with smoke fan

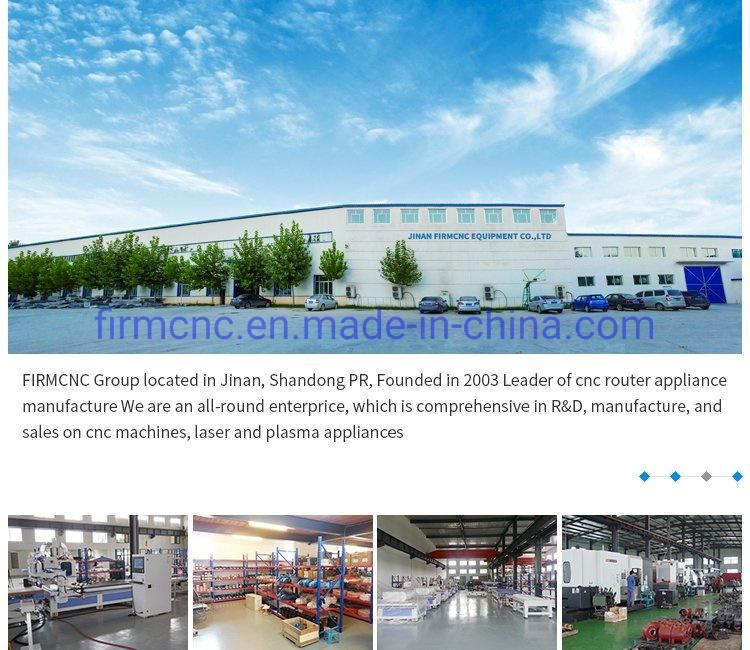

Company Information
Jinan Firmcnc Equipment Co ., Ltd is located in Jinan, Shandong Province,which specializes in manufacturing CNC and laser machines.
Our main products are CNC Router and Laser Machine. 5-Axis Machine Center, 4-Axis Machining Center, 3-Axis ATC CNC Router , General 3-Axis CNC Router, CNC Plasma Cutting Machine. We have two factories for product. The application covers Woodworking, Advertising,Marble, Metal,Nonmetal,MDF,Plastic,etc.Our products are widely sold in many European, American countries,Africa,Asia, ect.
We are still trying our best to product innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please do not hesitates to contact us for future cooperation. We hope to get mutual benefits with you in the near future.

Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

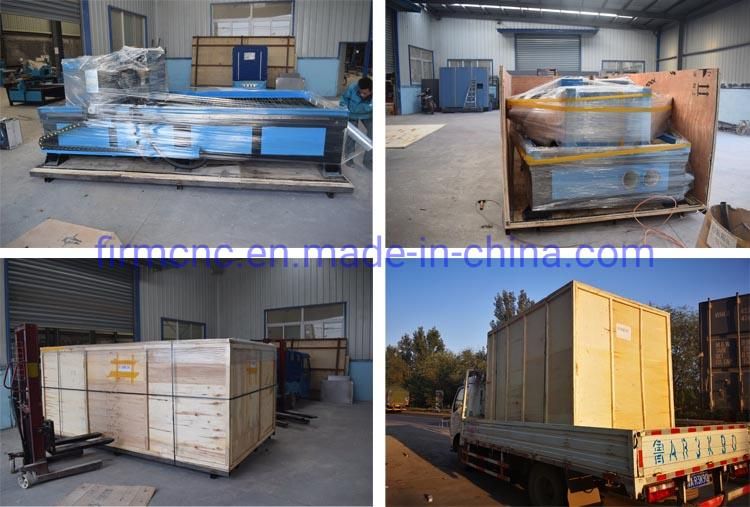

Package:
1)Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information


FAQ:
1.Can you recommend a plasma cutting machine?
Yes, In order to give you a suitable plasma cutting machine, pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.

All of our machine can be customized, If you are interested in or machines,please for free time to contact me.
