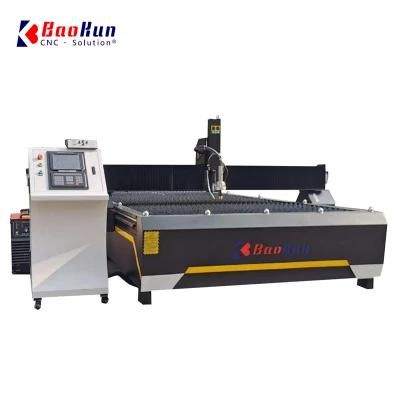

Iron/ Stainless Steel/ Aluminum/ Copper CNC Plasma Cuter
Shandong Baokun Machinery Equipment Co., Ltd.- Customized：Customized
- Layout：Vertical
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
Base Info
- Model NO.：Baokun plasma cutter
- Key Selling Points：Easy to Operate

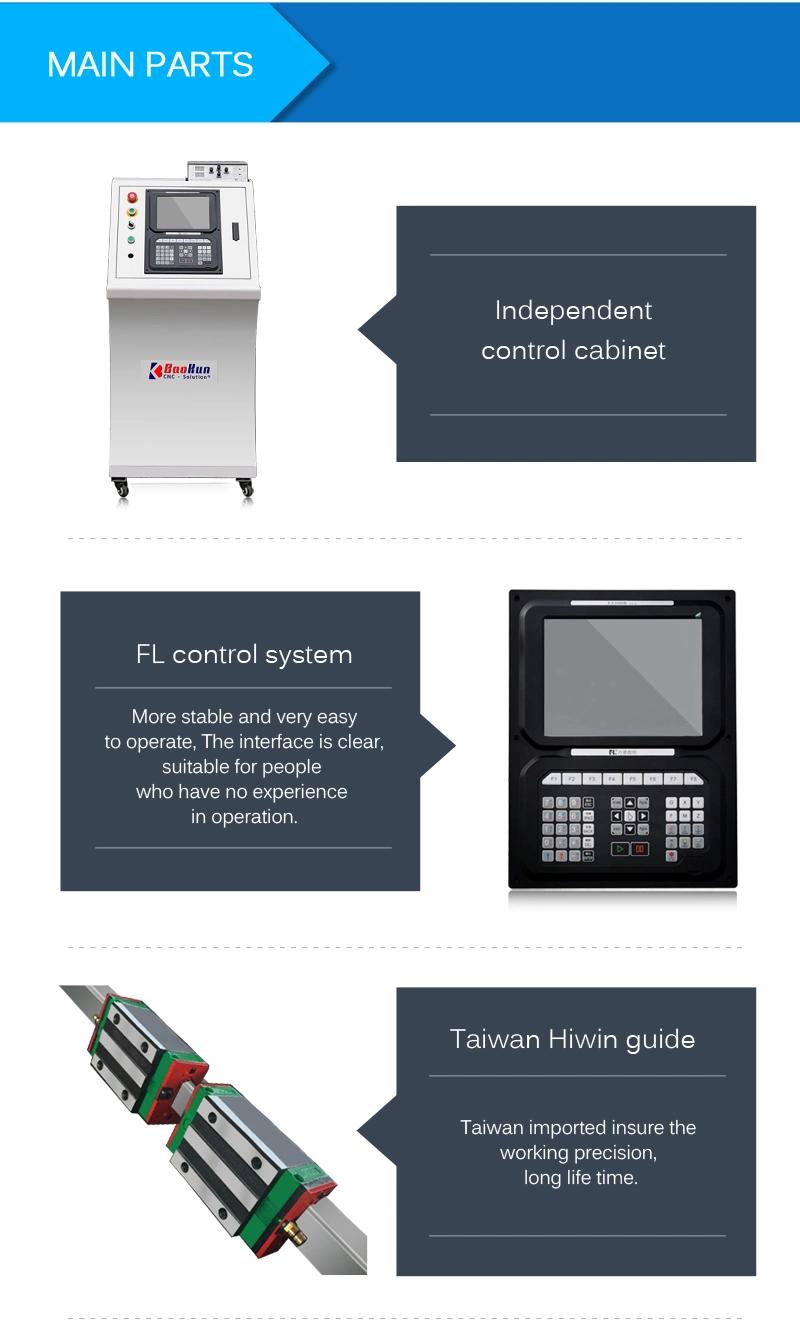

- Control System：F2300b Fangling System
- Power Supply Brand：Js

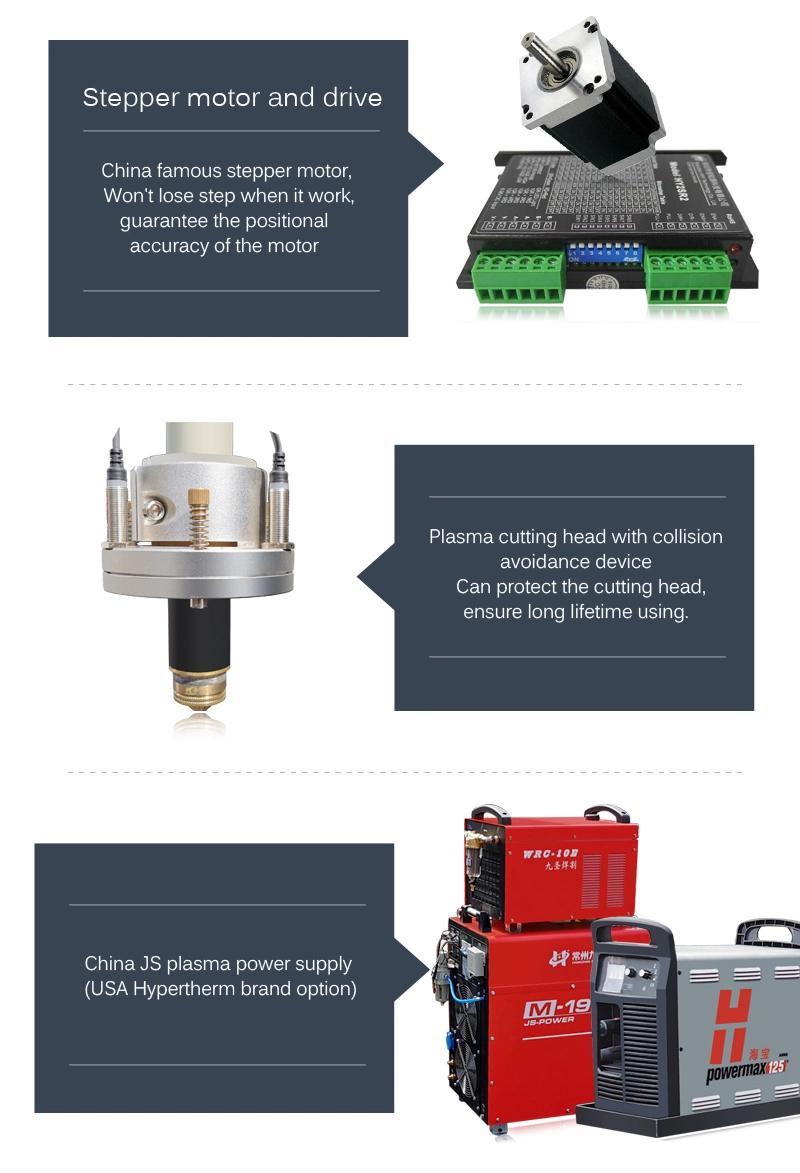

- Motor Type：Leadshine Stepper Motor
- Software：Starfire
- Driving Method：Gear Rack
- Anti-Collision Gun：Included
- Voltage：380V,220V
- Cutting Speed：0-15000 mm,Min
- Available Material：Stainless Steel, Carbon Steel, Aluminum
- Applicable Industry：Metal Cutting, Advertising, Mold Indudtry
- Warranty：1 Year
- After-Sale Service：Video Technical Support, Door to Door Service
- Machinery Test Report：Provided
- Certificate：CE, ISO, SGS
- Transport Package：High Strength Plywood
- Specification：1500mmx3000mm
- Trademark：BAOKUN Plasma Cutter
- Origin：Shandong, China
- HS Code：845690100
- Production Capacity：200 Sets Per Month
Description
Z Axis Lift150mm (200mm And Higher Is Optional) 3 Table Type Teeth And Water Tank 4 Working Voltage 380V/3ph;220v/3ph 5 Output Current China 63/100/120A/160A/200A;
USA45A/65A/85A/105A/125A etc. 6 Rotary Diameter 50-600mm optional 7 Operating System Starfire Controller/Start Controller/Jiaoda fangling controller 8 Working Material All metal :Steel, Aluminum, Galvanized Sheet,Titanium Plate,
Platinum Plate 9 Power Supply Brand JS Brand (optional:US Hypertherm system) 10 Max Moving Speed 10000mm/min 11 Drive Motor Stepper motor 450B and Driver M860H 12 Connecting Way USB 13 The Automatic Elastic Raise 0-5mm 14 Transmit Way Taiwan imported TBI ball screw 15 Rail Guide Precision work round 16 Command G code, *uoo, *mmg, *plt 17 Operation Language English (Option) 18 Spare Parts Electrode ,Electricity nozzle and Water jacket 19 Supporting Cutting Flame and Plasma(Plasma Arc Cutting Equipment) 20 Flame(gas) Cutting Gas LPG/Coal gas, Propane, Acetylene + Oxygen 21 Package Plywood case
1). This Plasma Cutter use imported guide rail, double four ball slider, heavy loading capability, smooth
operation, high precision, long life.
2). The machine gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail
that make the machine driving smoothly with high-precision.
3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach
good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the
advertising word processing pipeline.Completely solve the traditional manual processing methods.Improve the
efficiency of several times.
4). The plasma cutter cutting mouth is small, tidy,and avoid a second dressing processing.
5). It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and
so on.
6). Plasma can be automatically increased functionality, automatic ignition function, during working time, can be
arbitrary adjust the speed up and down, but with stable performance.
7). The numerical control system disposes high, the automatic striking arc, the performance is stable.
8). Using advanced domestic CNC control system, compatible with type3/Artcam/Castmate / Wentai and a variety
of CAD / CAM Design software.

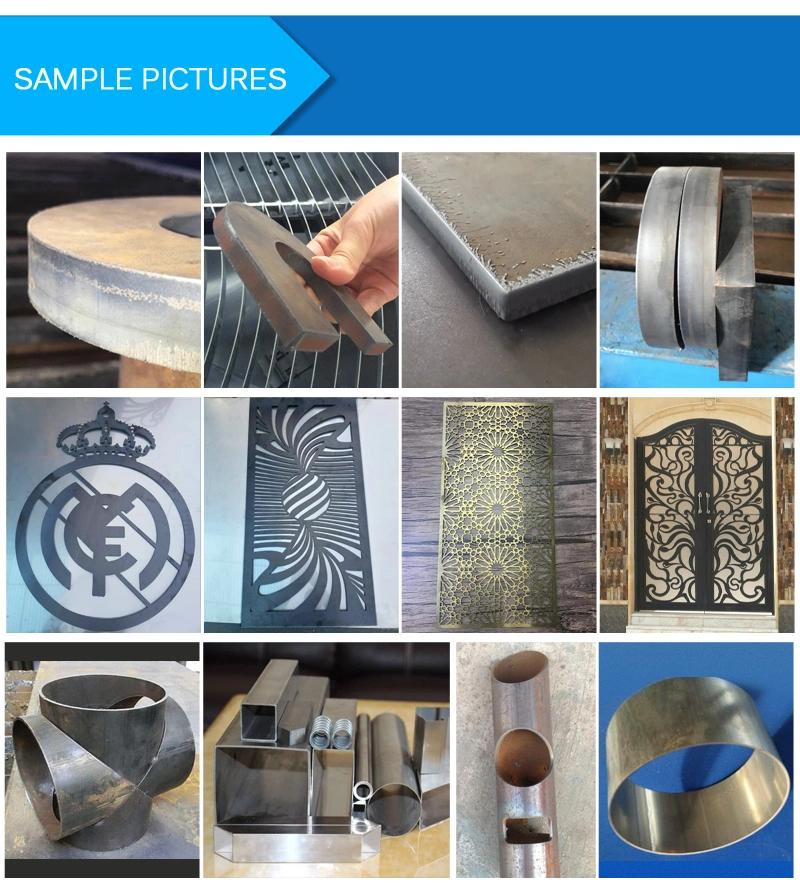

Metal Industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,
gold, silver, Titanium and other metal plate and tube cutting.
Mold Industry:
Engraving metal molds made of copper, aluminum, iron and so on.
Advertising Industry:
Advertising signs, logo cutting, decorative products, production of advertising and a
variety of metal materials cutting.
1) How can I choose a suitable plasma cutter?
Actually, more information be known will be more helpful to recommend. But there have some key points we must
know, including:
1.What materials do you need cut?
2.What's the max size of the material?(Length *width* thickness)
3.What are your functional requirements for the machine?
4.If you have special requirements for machine parts, (such as power supply brand, motor driver or controller brand
etc.) please let me know.
2) Do you have plasma cutter installation, debugging, training service?
Sure, we have.
The CNC machine was installed and debugged before delivery, you can use it directly after receiving.
There also have English instruction book in the machine for your reference.
Except, if you need, our engineer can arrive at your company to help to install and teach you how to use them more
better, just some charge, and accommodation, tickets will be charged.
3) I am a fresher for plasma cutter, just want to use it cut metal, is it easy to operate?
We help lots of freshers, if you have a reasonable knowledge of computers and willing to spend a little time learning
it is not bad.
And the English operating video and instruction book will sent to you free together with the CNC router.
We also have 7X24 hours technical support by calling, video, IM and email.
4) If I need a not standard size plasma cutter, is it possible?
Sure! Our company have our own research and development department, own mature technology, can help customize
machine according to your special requirements. Until now, we help to produce customized machines for more than 80
customers, and they said operate well.
5) Are there any installed plasma cutter in my country I can visit?
No problem ! We export machines all over the world, including America, Canada, Syria, Jordan, Pakistan,Surinam, Paraguay,
Ecuador, Brazil, Guyana, Venezuela,Nicaragua,Taiwan New Zealand, Fiji, Australia, Sri Lanka, Malaysia, Philippines,
Denmark, British, Germany, Italy, Spain, Portugal, Israel Libya, Saudi Arabia, Cote d'Ivoire, Nepal, Russia, Bulgaria, Iraq,
Armenia etc., also have agent in America, Syria, Russia, will explore more and more.
So if there is our machine in your country, we can contact the customer to arrange a visit for you.
6) How long does it take to make a machine ?
For general machine, it takes about 15 working days; for customized machine, generally is about 30 days. If have any
special cases, will inform you advanced.
If you have any other questions, welcome contact our sales representative!
