• Model NO.：COLO-3210
• Condition：New
• Item：Large Powder Coating Oven
• Working Size (mm)：Width2000 X Height1900 X Depth3100
• Power Supply：Gas,LPG,Diesel
• Motor Power：4 Kw
• Voltage：220,380V Customized as Local
• Frequency：50-60 Hz
• Warm-up Time：15-30 Minutes
• Temperature：180-250 Degrees Celsius
• Delivery：15 Working Days
• Transport Package：Wooden Cases
• Specification：CE
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：50sest,Month

PLC Controller

A simple PLC controllor provides high precision heating process, it offers all the features you need.
The display allows you to set the desired temperature and heating time accurately, and turn on / off the fan. Once the curing time arrive, the oven will stop heating automatically.
The control panel also includes a variety of safety devices, including alarm light and emergency stop buttons, etc.Italy RIELLO Gas Burner

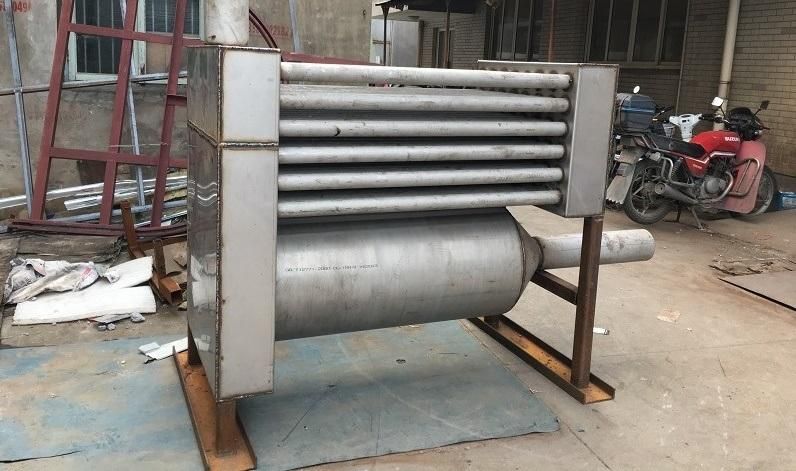

Italy imported RIELLO diesel burner, takes full use of fuel, rapdily raises to required temperature, Max. reach to 250ºC (normally 180ºC for heating 15-20mins). Quick heat-up rates helps to achieve higher production output.Oven Wall Materials

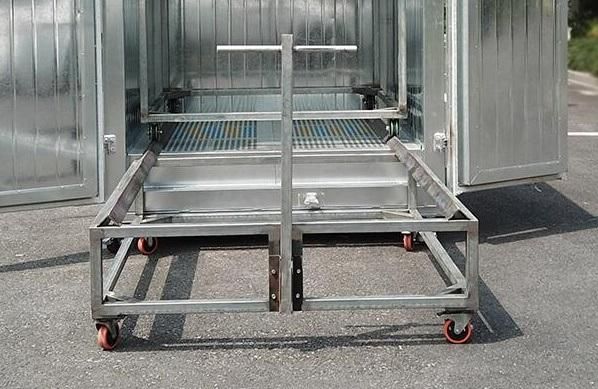

Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.Transporting System

Supply with trolley and frames for easy carrying and  loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.

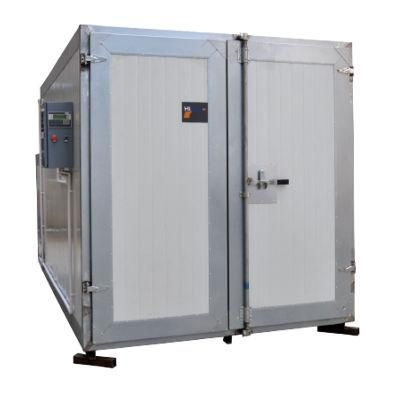

Specifications of COLO-3210 Tunnel Powder Coating Oven


Model	COLO-3210
Worksize dimensions	Width2000 * Height1900 * Depth3100 mm
Power supply	Gas/LPG/Diesel
Burner	Italy Riello, 100,000cal
Voltage / Frequency	220V/380V (customized as local)
Frequency	50-60 Hz
Warm-up time	15-30min (180°C)
Temperature stability	<± 3-5°C
Temperature max.	250°C
Motor power	4kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley
Warranty	12 months

Application of Powder Coating Oven



Why choose us ?
1.More than 10 years manufacturing experience in electrostatic powder coating equipment

2.Provide one-stop service: reseach & development, design, production, worldwide marketing, engineer oversea installation, after-sale service.

3.Customed as you want.

4.Competitive price: we are factory. Design, production ,installation all by ourself-saving cost.

5.One year of warranty period and life long technical support.

6.Market share in Global: about 90%, is a leading factory in this filed.


More details weclome to contact us !
