- Model NO.：GEEPRO
- Customized：Customized
- Condition：New
- After Service：on-Site Installation
- Guarantee：18months
- Motor：Siemens
- Key Electronic Components：Schneider
- PLC：Siemens
- Valve：Rexroth
- Transport Package：Wooden Box
- Trademark：GEEPRO
- Origin：China
- HS Code：84629201
- Production Capacity：300-500PCS,Year
| MODEL | YW27-200 | YW27-315 | YW27-400 | YW27-500 | YW27-630 |
| Capacity | kN | 2000 | 3150 | 2000 | 5000 | 6300 |
| Hydraulic cushion capacity | kN | 1200 | 1500 | 1500 | 1500 | 2000 |
| Slide Stroke | mm | 800 | 1000 | 1000 | 1000 | 1500 |
| Hydraulic cushion Stroke | mm | 260 | 300 | 350 | 300 | 400 |
| Max. Shut Height | mm | 1200 | 1600 | 1500 | 1400 | 2000 |
| Bolster movement distance | mm | | | 2000 | 1600 | 2700 |
| Slide Speed | Idle Stroke | mm/s | 220 | 200 | 200 | 220 | 200 |
| Pressing | mm/s | 15-25 | 10-15 | 9-15 | 8-20 | 6-15 |
| Return | mm/s | 160 | 150 | 150 | 160 | 150 |
| Ejecting Speed | Eject | mm/s | 60 | 60 | 60 | 80 | 80 |
| Return | mm/s | 100 | 100 | 100 | 120 | 100 |
| Bolster Size | LR | mm | 1000 | 2500 | 2700 | 2000 | 4500 |
| FB | mm | 1000 | 1600 | 1500 | 1400 | 2500 |
| Main Motor Power | kW | 15 | 22 | 44 | 44 | 67 |
| MODEL | YW27-630A | YW27-630B | YW27-630C | YW27-800C | YW27-1000 |
| Capacity | kN | 6300 | 6300 | 6300 | 8000 | 10000 |
| Hydraulic cushion capacity | kN | 2500 | 2000 | 2500 | 2000 | 3500 |
| Slide Stroke | mm | 1000 | 1200 | 1500 | 1200 | 1600 |
| Hydraulic cushion Stroke | mm | 350 | 350 | 400 | 300 | 400 |
| Max. Shut Height | mm | 1600 | 2000 | 2200 | 1700 | 2000 |
| Bolster movement distance | mm | 2000 | 2400 | 2400 | 1800 | 2700 |
| Slide Speed | Idle Stroke | mm/s | 250 | 220 | 220 | 220 | 220 |
| Pressing | mm/s | 10-25 | 10-25 | 10-25 | 15-23 | 15-23 |
| Return | mm/s | 150 | 120 | 120 | 120 | 120 |
| Ejecting Speed | Eject | mm/s | 60 | 80 | 80 | 60 | 60 |
| Return | mm/s | 80 | 100 | 100 | 100 | 100 |
| Bolster Size | LR | mm | 3000 | 3000 | 4500 | 2500 | 3800 |
| FB | mm | 1800 | 2000 | 2500 | 1600 | 2500 |
| Main Motor Power | kW | 90 | 90 | 60 | 90 | 110 |

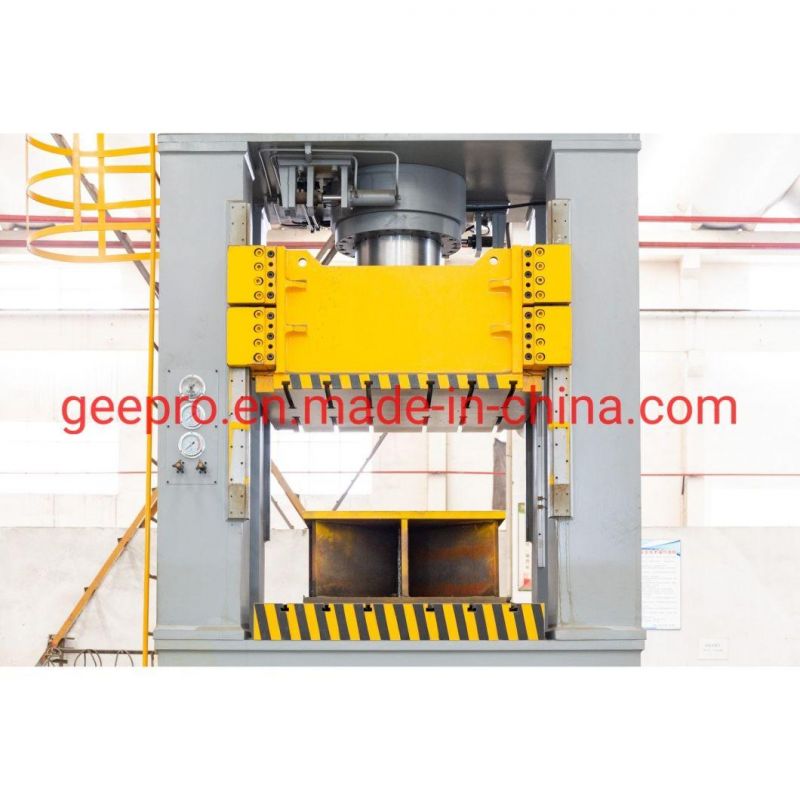

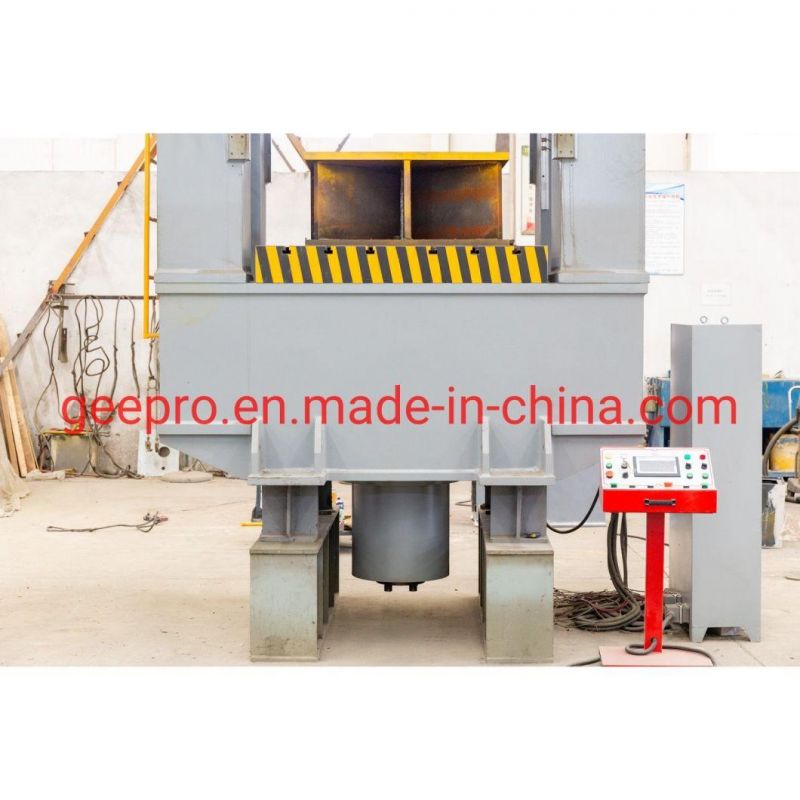

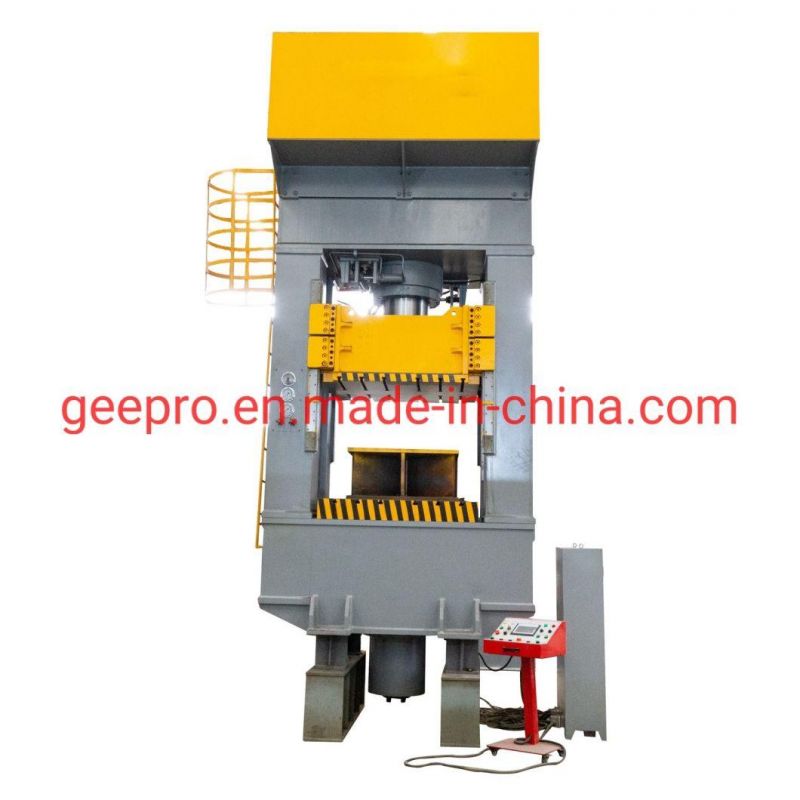

| Main Specifications fo the STOCK 500ton H Frame Hydraulic Pres |
| NO. | Type | Unit | 500T |
| 1 | Nominal force | KN | 4000 |
| 2 | Working table (left ,right) | mm | 1400 |
| 3 | Working table (front , behind) | mm | 1400 |
| 4 | Cushion force | KN | 3150 |
| 5 | Cushion Stroke | mm | 320 |
| 6 | Cushion (left ,right) | mm | 1000 |
| 7 | Cushion (front , behind) | mm | 900 |
| 8 | Max stroke of slipper | mm | 800 |
| 9 | Down Speed of slipper | Mm/s | 150 |
| 10 | Return Speed of slipper | Mm/s | 100 |
| 11 | Press Speed of slipper | Mm/s | 8-10 |
| 12 | Ejection Speed of slipper | Mm/s | 80 |
| 13 | Return Speed of slipper | Mm/s | 130 |
| 14 | Press Speed of slipper | Mm/s | 8-10 |
| 15 | Height of the working platform to the Ground | mm | 1130 |
| 16 | Working liquid pressure | Mpa | 25 |
| 17 | Max opening height | mm | 1200 |
| 18 | Motor Power | KW | 30 |
(2)Application:

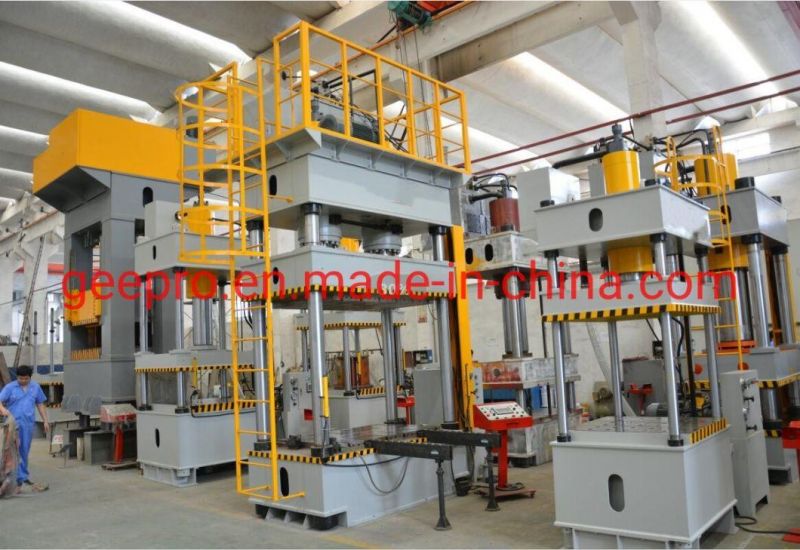

A.This series of four-column hydraulic press machine presses with a wide range of versatility, suitable for various kinds of metal materials tensile, bending, flanging, cold extrusion, blanking process.
B.It applies to the correction, pressfit, powder products, abrasive products, grinding wheel, bakelite, resin,thermosetting products forming and press-formed in the insulating material of the plastic products.
