• Model NO.：DM500,600
• Max. Number of Block：30
• Certification：ISO
• Condition：New
• Function：to Take up The Wires After Galvanized or Annealing
• Machine Model：Dm500,600
• Capstan Diameter：500-600mm
• Raw Material：Low Carbon Steel, Iron
• Diameter Range：5.0-1.0mm
• Transport Package：Plastic Film and Wooden Box
• Trademark：Pingsheng
• Origin：Wuxi City
• Production Capacity：50 Sets, Year

Basic Info.

Model NO. DM500/600 Max. Number of Block 30 Certification ISO Condition New Function to Take up The Wires After Galvanized or Annealing Machine Model Dm500/600 Capstan Diameter 500-600mm Raw Material Low Carbon Steel/ Iron Diameter Range 5.0-1.0mm Transport Package Plastic Film and Wooden Box Trademark Pingsheng Origin Wuxi City Production Capacity 50 Sets/ Year

Product Description

Wire vertical plum take up machine after galvanized iron wire making and heat treatment Tel + 86 177 0151 9738

1. Machine description:
1 It is used for taking up wire from galvanized line or hear treatment.
2 Capstan diameter is 600mm.
3 Draft gear is designed to be V-shape groove type.V-shape groove material adopts 45# cast steel. And its surface roughness is ≤0.8μm, which goes through high-frequency quenching. Its surface hardness HRC is 50-55.
4 We use 2.2-4KW motor/block, which is AC motor.

2. Machine scope:
1,Take-up wire Dia.:Φ1.9-4.0mm;
2,Take-up wire tensile strength:≤550Mpa;
3,Take-up wire speed:20-42m/min;
4,DV Value: above 80m/min

3. Machine body:
Main frame, as the welding parts, is welded by high quality steel which is through the process of eliminating scale treatment. After welding, it adopts vibration to eliminate the stress during welding. So its tensile strength is good with strong carrying capacity.

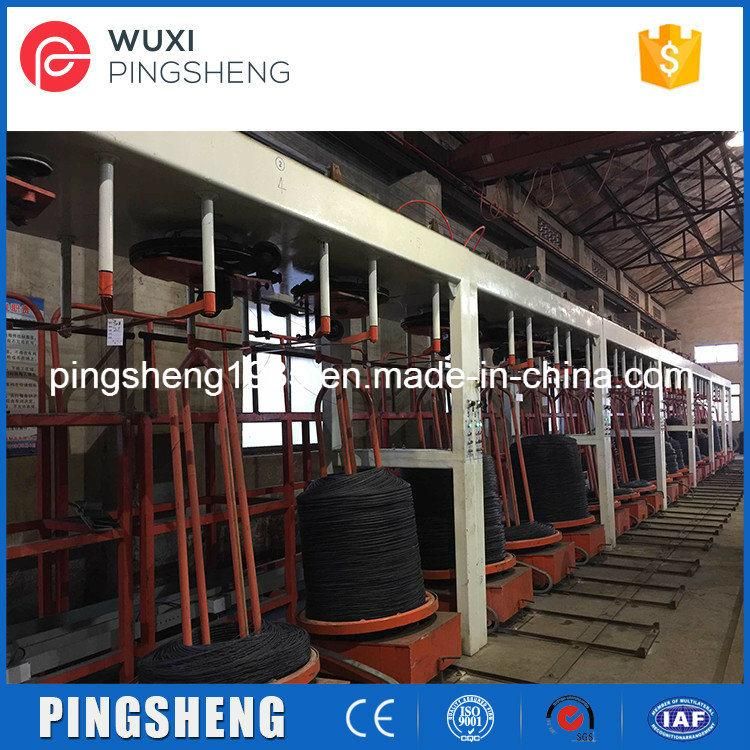

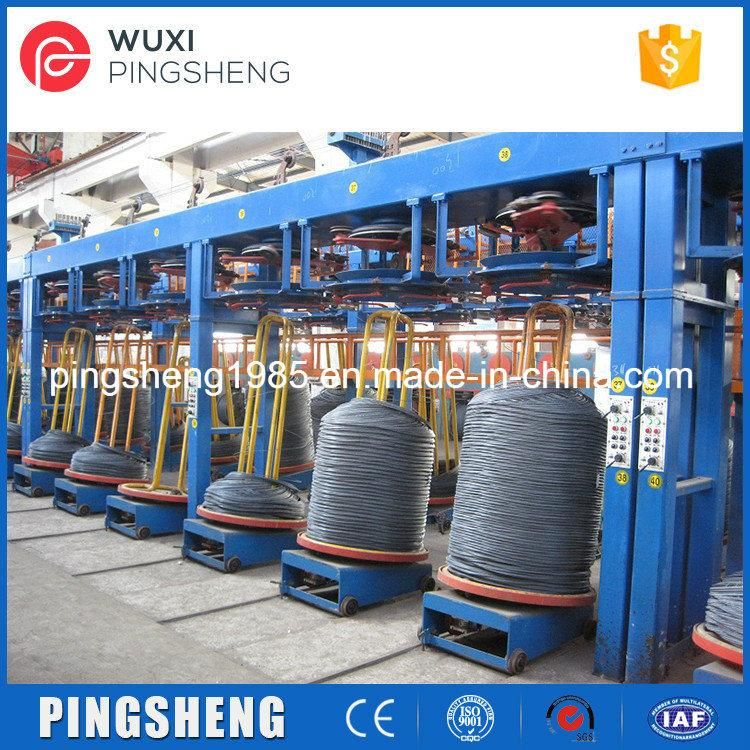

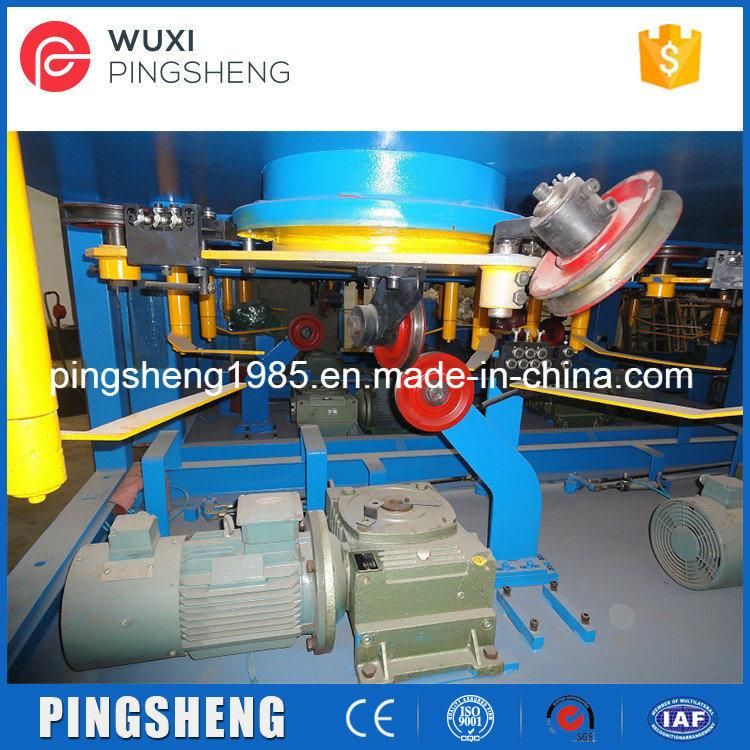

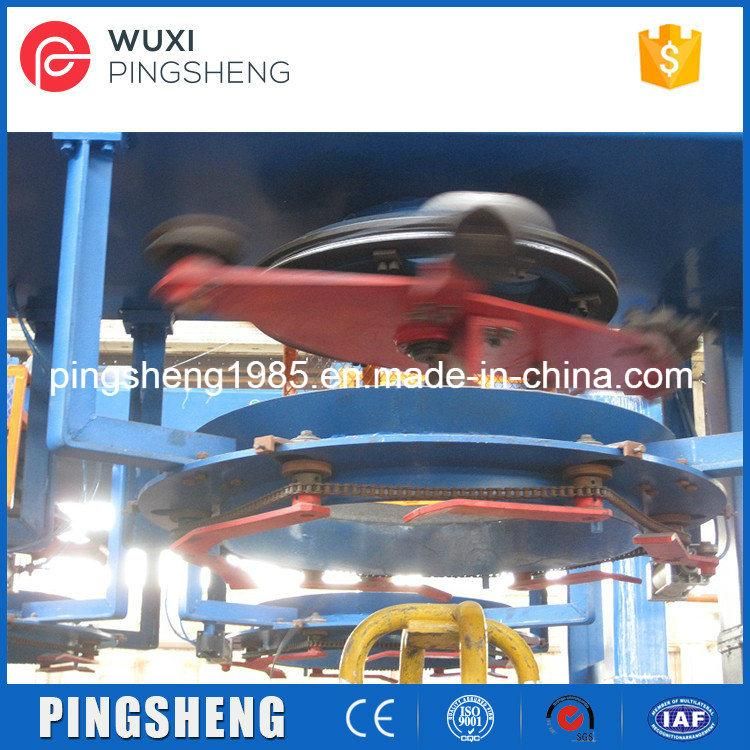

4. Machine pictures:
