6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine

Dongguan Hua Yi Da Spring Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Control Type：CNC
  • Axis Count：12 Axes
  • Warranty：1 Year
  • Motor：SANYO Denki
  • Wire Size：2-6mm

Base Info

  • Model NO.：60T-12A
  • Wire Feeding Wheel Groups：4
  • Decoiler：500kgs
  • Lead Rail Stroke：200mm
  • Max Spring Od：150mm
  • Transport Package：Wooden Case
  • Specification：6000kgs
  • Trademark：HYD
  • Origin：Dongguan, China
  • HS Code：8463300000
  • Production Capacity：60 Sets,Year

Description

Wire Size Range                 low carbon steel:3-8mm   high-carbon steel:2-6mmLead rail stroke                            distance of 200mmWire feeding wheel groups                         4 Max Feeding speed                        80m/minMaximum error                            ±0.1(length)Control system+decoiler                    1 setServo motor power                         51.2KWReducer                                  11pcsMinimum length of angel                    4 times wire diameterMachine  size4200*2100*2350mmMachine  weight                          6000kg

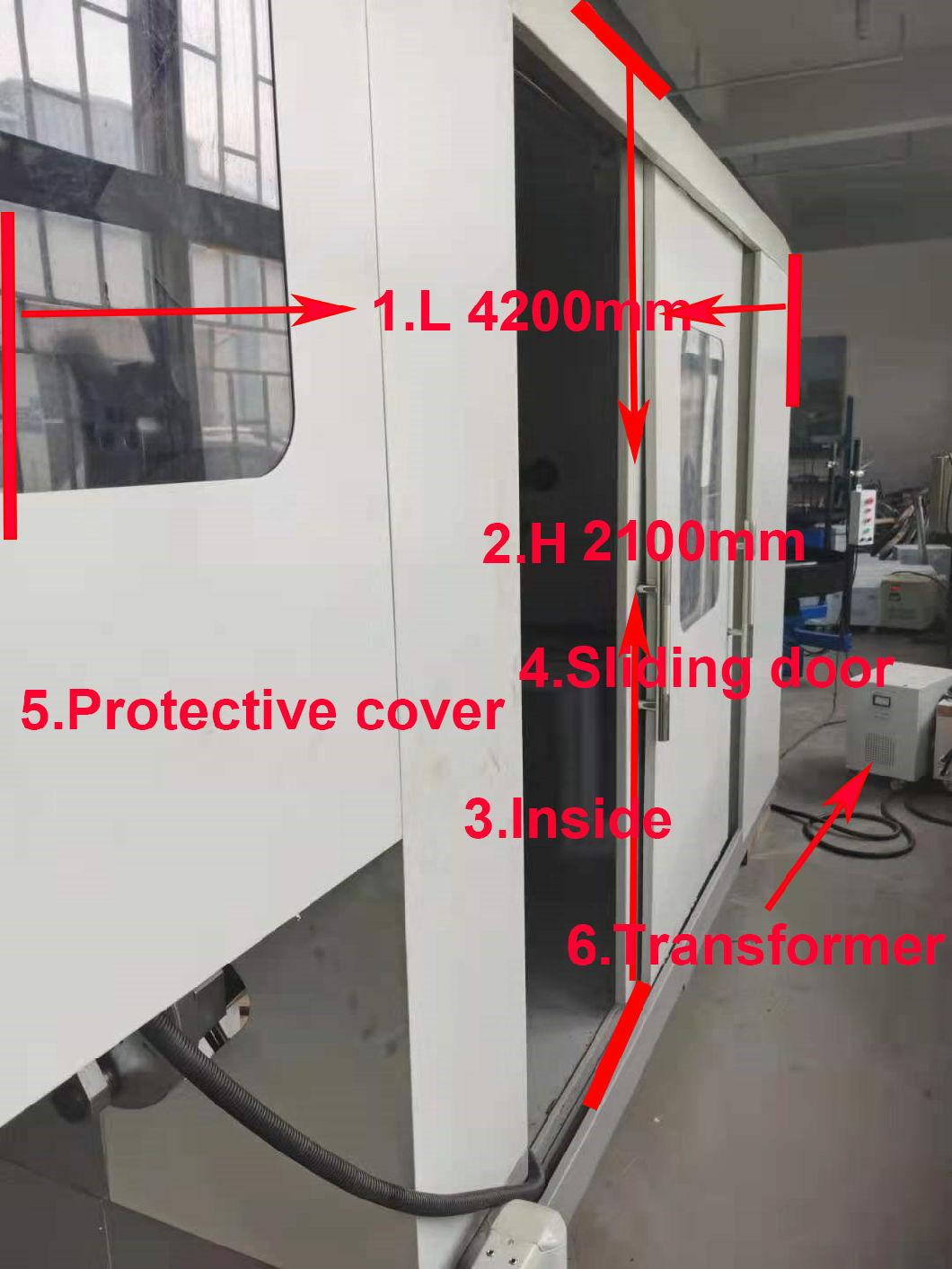

 6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine1. Length 4200mm

2. Inner height is 2100mm.

3. Space inside is large enough to stand a few people.

4. It is fixed with sliding doors, will not take up space.

5. Protective cover is for reducing noise, protecting

production.

6. Equipped with transformer that is suitable for many

different voltage scenarios.

6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
3. Packing and deliverying

Packing: wooden case

Deliverying: within 45-60 days after down payment

6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
4. FAQ

1.How can you help me to use the machine?

We will commission machine well, make samples, and take videos for customers;

Training free 1 week in sales factory, paid if need field training;

Also, Online supporting or video technical supporting could be supplied.

2.How can I know that you supply cost-effective solutions?

Machine will be suggested with your spring requires and budget.

Providing the most suitable plan for reference.

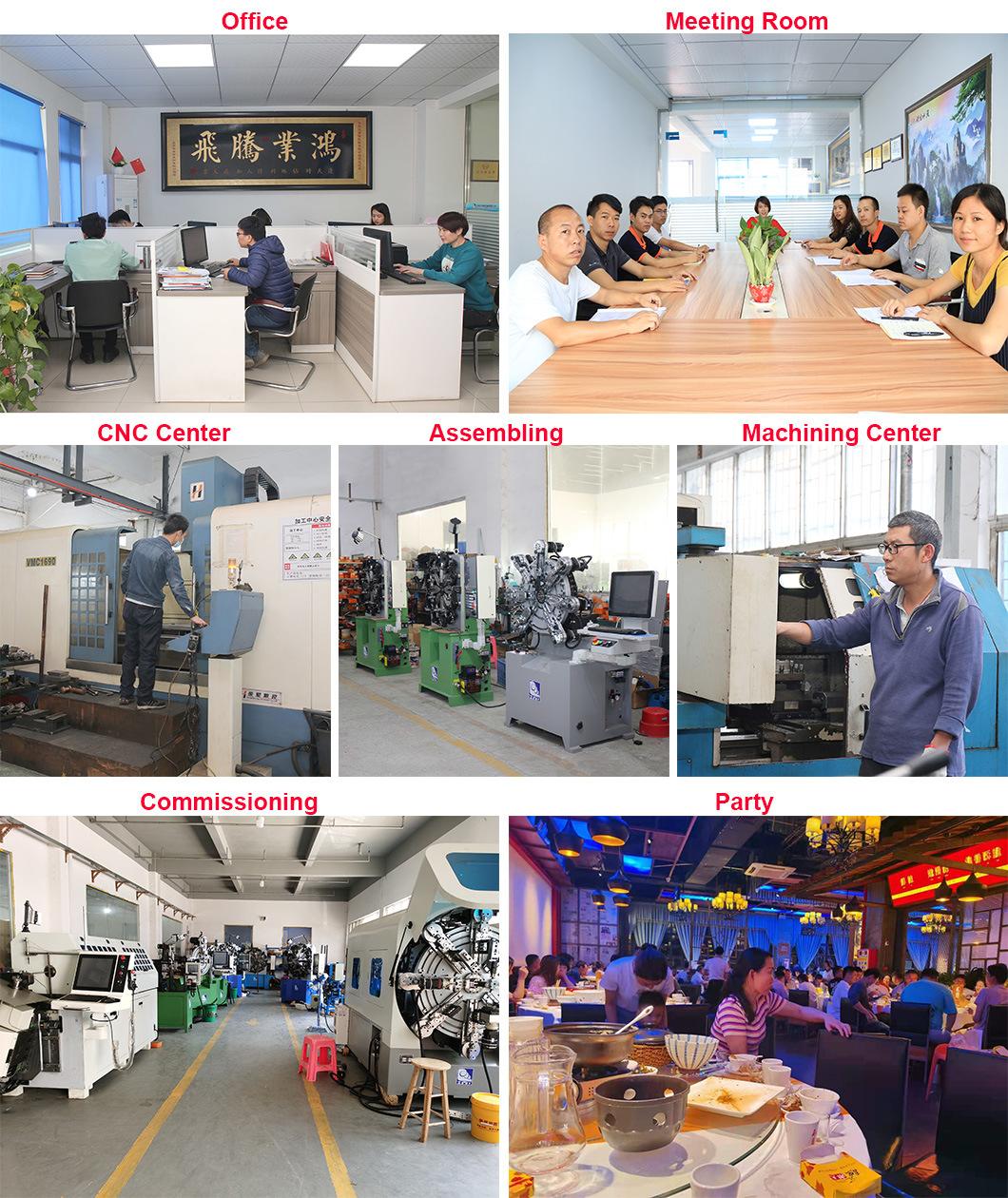

5. About us

6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
6. Customers

Training
6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
Discussing with customer
6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
7. Exhibition

6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
6.0mm Camless Spring Wire Rotary Machine Spring Forming Machine
