• Model NO.：XC-125
• Trademark：ZZMM
• Origin：Shangdong, China
• HS Code：8461202000
• Production Capacity：50

Basic Info.

Model NO. XC-125 Trademark ZZMM Origin Shangdong, China HS Code 8461202000 Production Capacity 50

Product Description

Features

Heavy duty cast iron construction
Swivel head tilts left and right 90º
Dovetail vertical Z-Axis
0-100mm machining stroke range

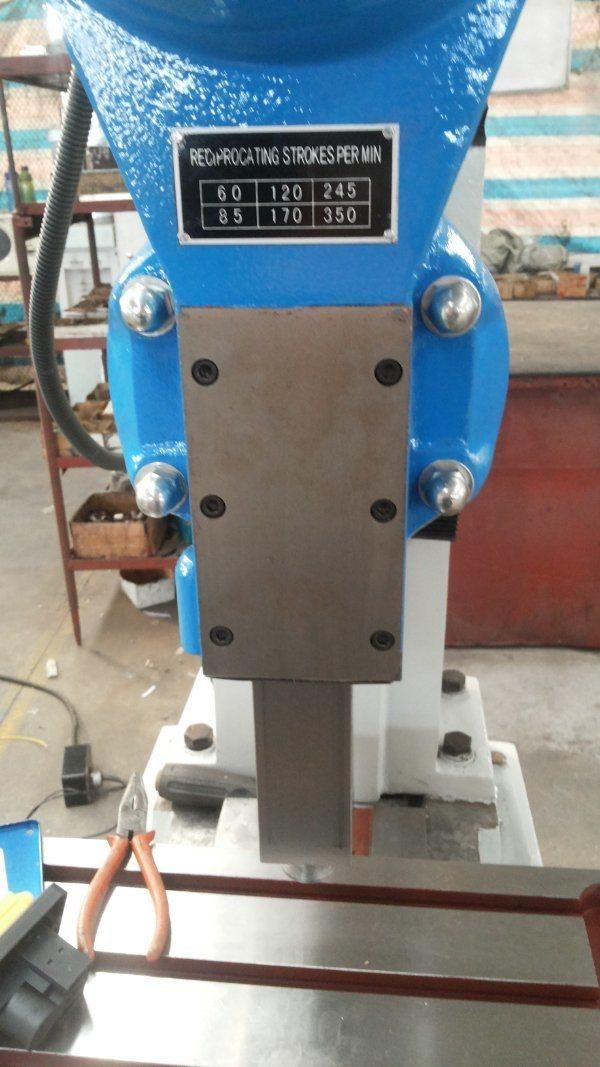

Strokes per minute 60-350 (6 ranges)
500x200mm table size
170mm working table cross travel
180mm working table longitudinal travel

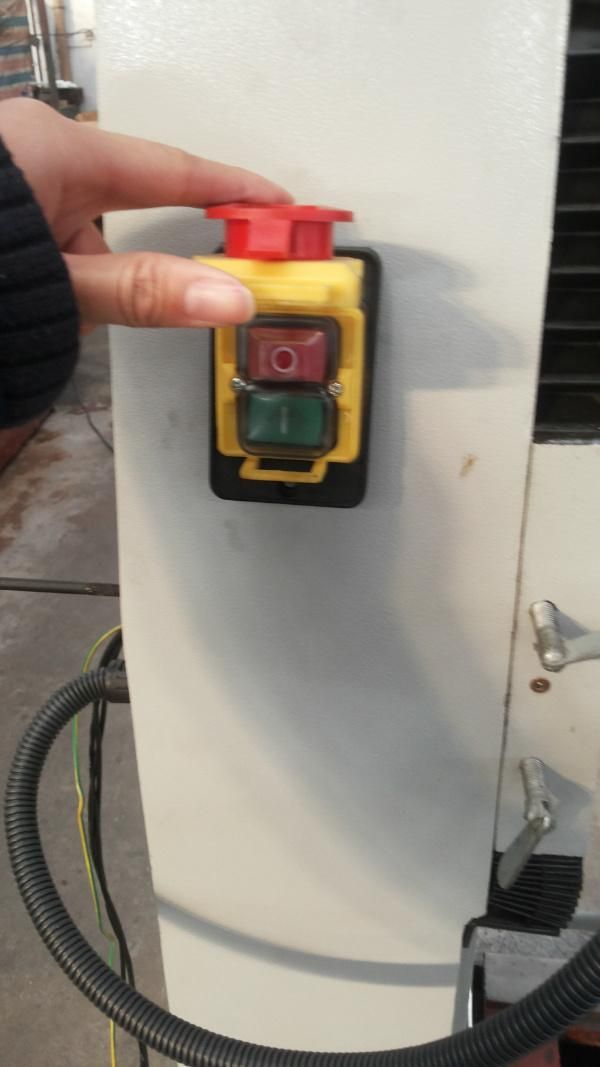

Safety chuck guard with micro
14mm T-Slot on table
370W/1/2hp motor
Includes steel fabricated stand
Suits 16mm diameter tooling

Product parameters

model	Units	XC-100	XC-125
max work travel	mm	100	125
min frequency of stroke	Time/min	60	60
max frequency of stroke	Time/min	350	350
spindle speed series	grade	6	6
swing angle of head	degrade	90	90
swing angle of tool post	degrade	360	360
table size	mm	500*200	500*200
table travel	mm	180*170	180*170
packing size	mm	740*740*1650	740*740*1650
N.W/G.W	kg	286/236	293/243

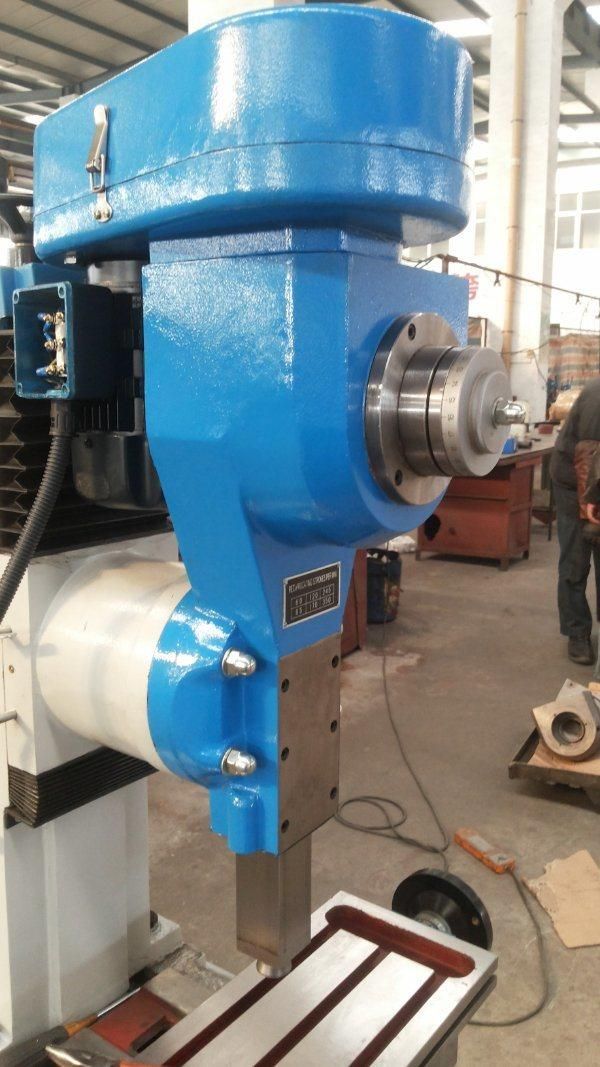

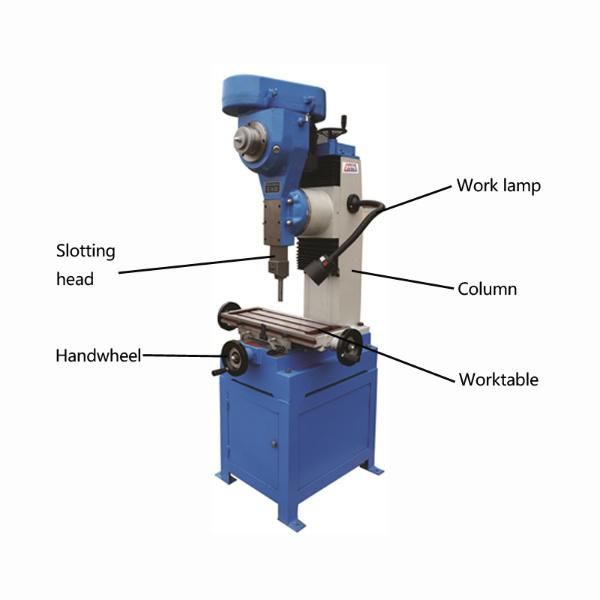

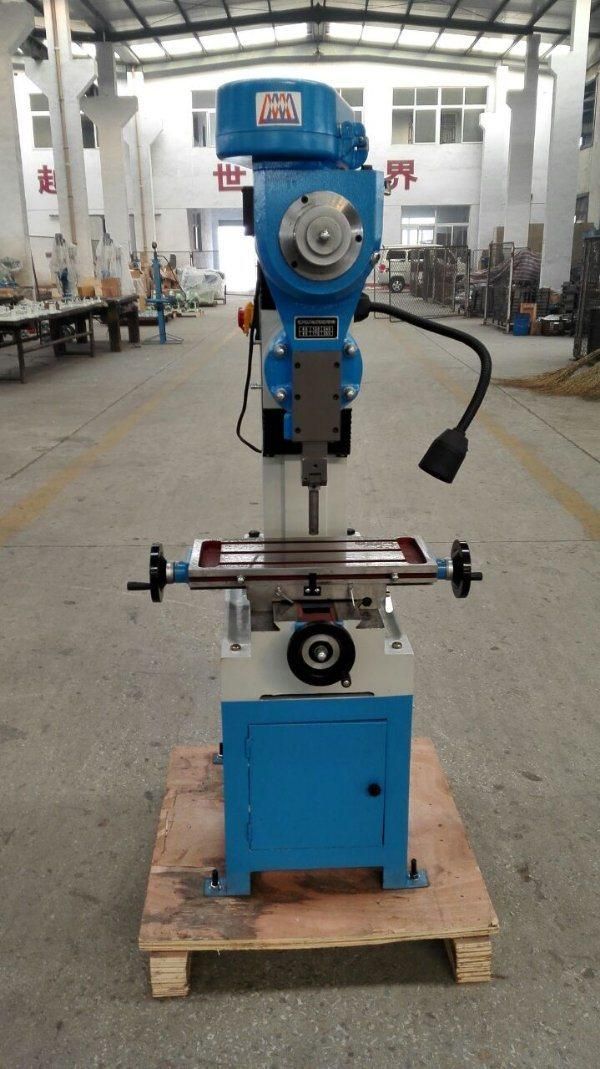

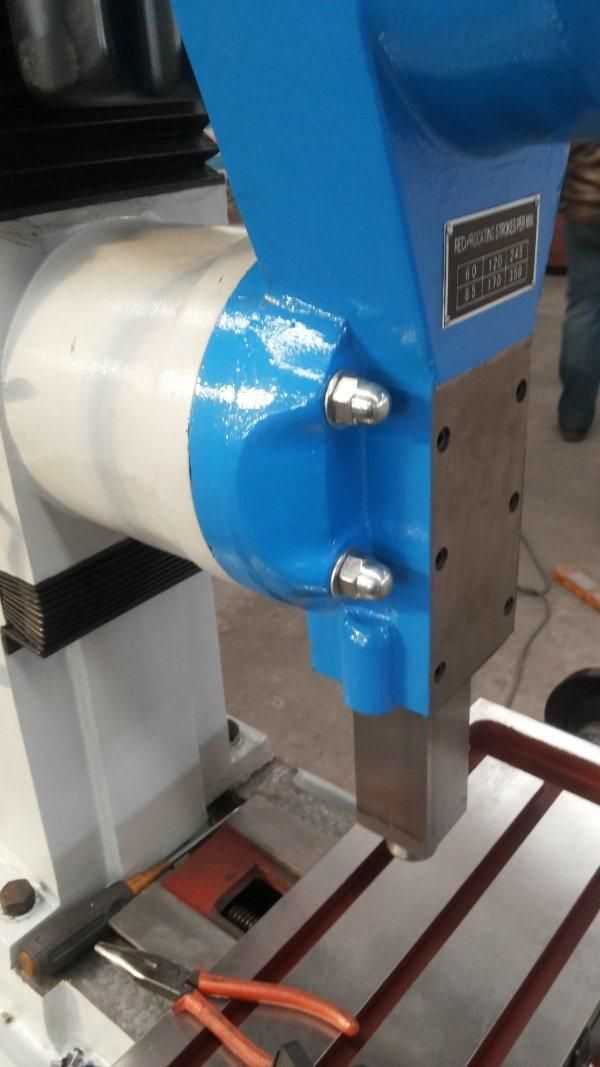

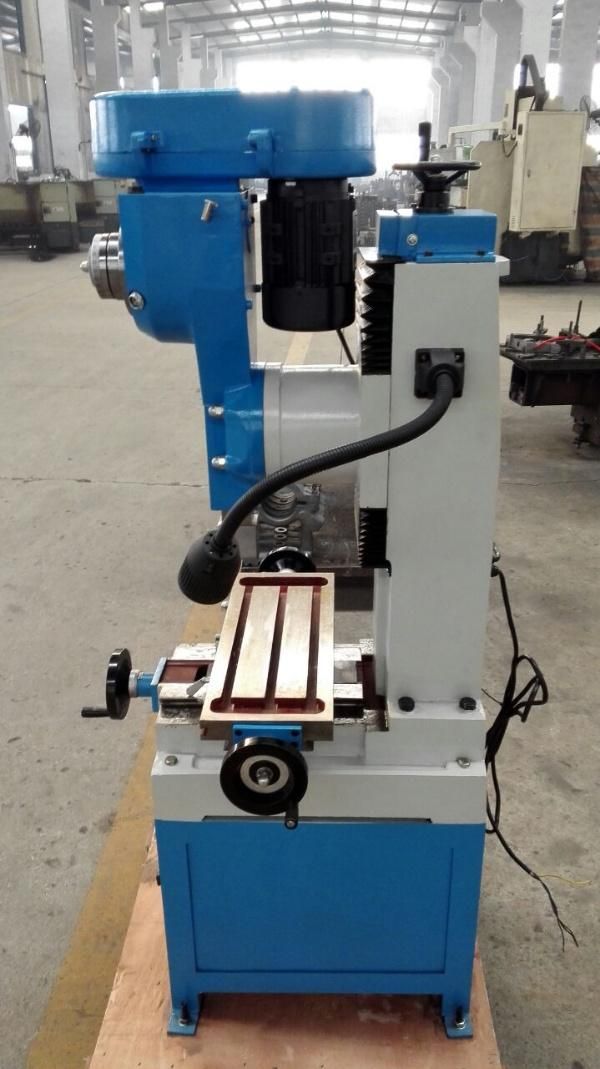

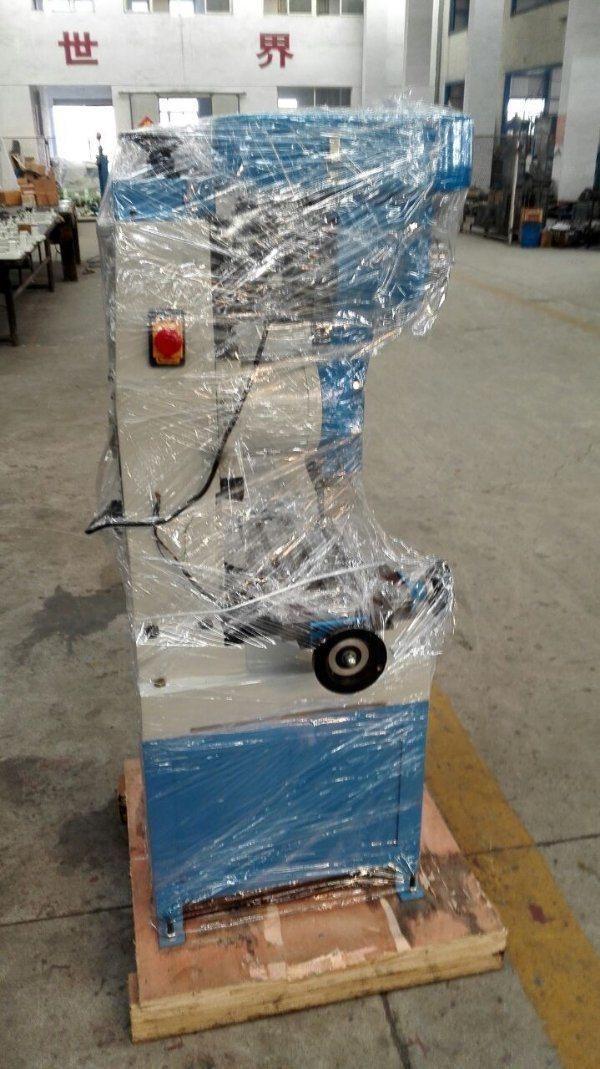

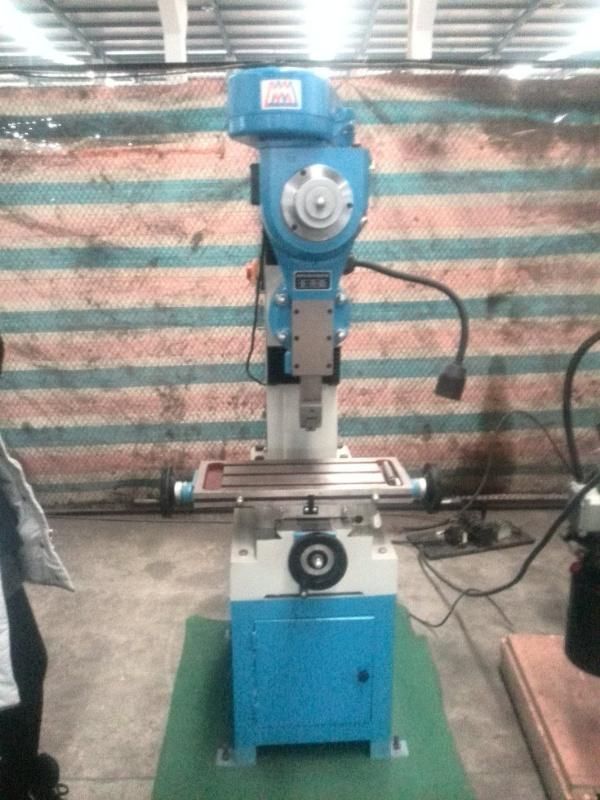

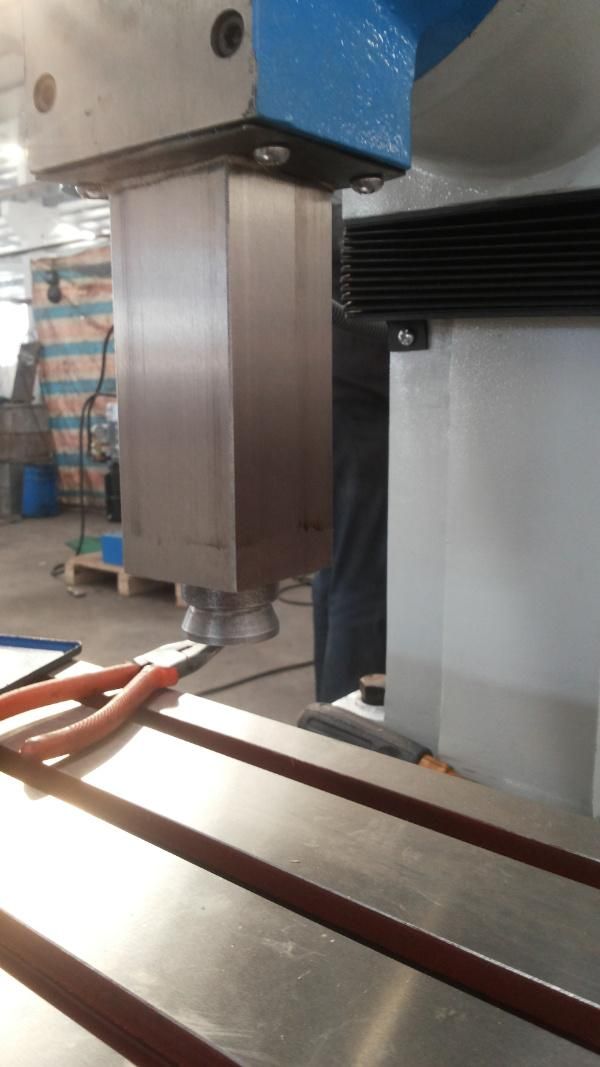

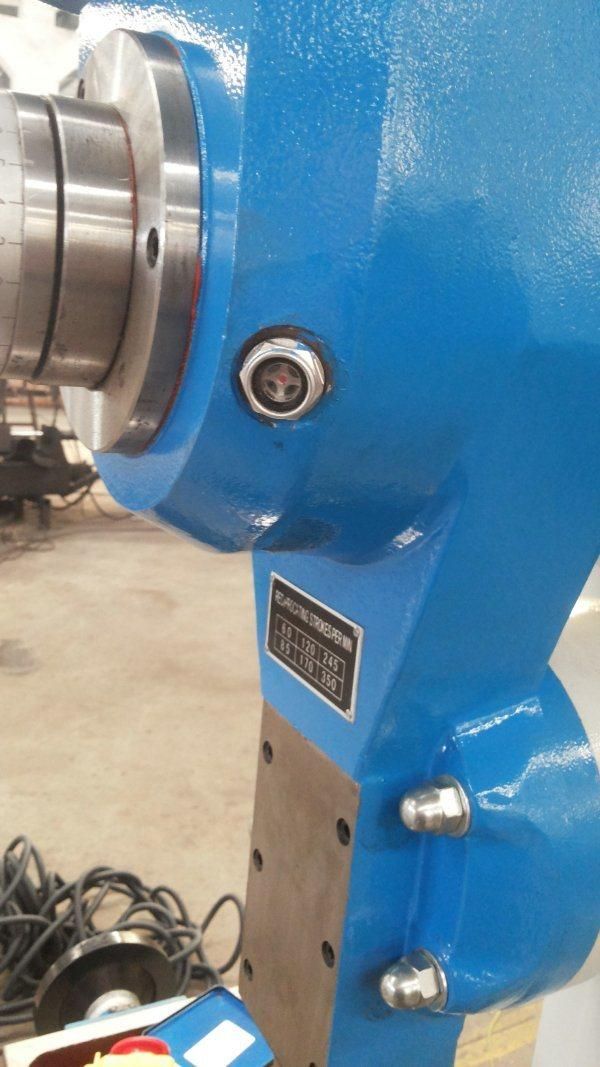

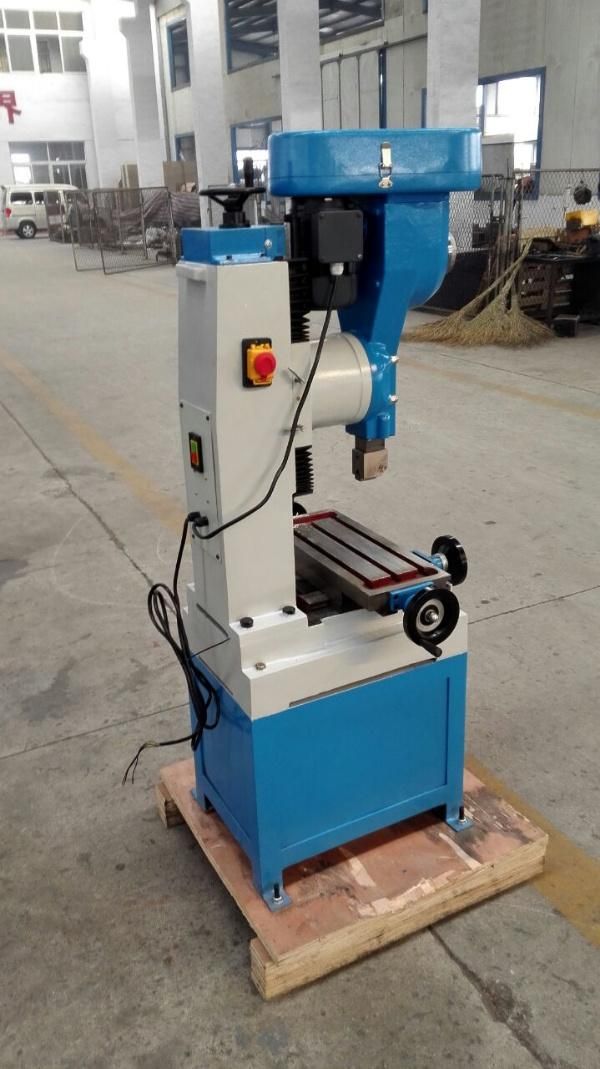

 Product picture
