• Model NO.：colo-1732
• Condition：New
• Intelligent：Top Quality
• Worksize Dimensions：1000width X 1500 Height X 800 Depth
• Power Supply：Electric, 4kw
• Voltage/Frequency：380V,220V(50-60Hz)
• Warm-up Time：15-30 Min. (180° C)
• Temperature Stability：< ± 1-3°c
• Temperature Max.：250° C
• Ventilation Performance：805-1677m3,H
• Motor Power：1.5kw
• Specification：CE
• Trademark：colo
• Origin：Zhejiang
• HS Code：84243000
• Production Capacity：20000PCS,Year

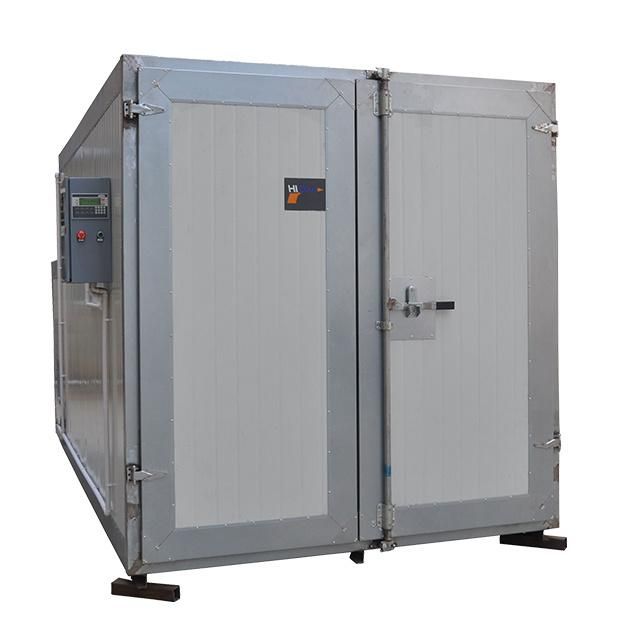

Specification of the powder coating oven:
pecification of Gas Heating Powder Curing Oven

Products Details

good curing effect on the metal surface. We use good material and components to achieve perfect warm insulated system:
1) inner wall:Galvanized Steel(thickness=1~1.5mm),
2).interlayer: rock wool board(thickness=100~120mm), insulated, maintain the inside temperature
3).outer wall: Color Steel(thickness=1-1.5mm), anti-rust
4.PLC control system for easy operation You can setting heating time and temperature on the panel. When the heating time arrive, the system will stop automatically.
