• Model NO.：Z94-1C Z94-2C Z94-3C Z94-4C Z94-4C(2) Z94-5.5C
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Model：Z94-1c,Z94-2c,Z94-3c,Z94-4c,Z94-5.5c,Z94-6c,Z94-8A
• Material：Wire Rod, Steel Wire
• Usage：Making Different Size of Nails
• Nail Length：9-150mm
• Nail Dia.：0.9-5.5mm
• Using Life：More Than 15 Years
• Color：Optional
• Transport Package：Wooden Case or as Your Requiremnets
• Specification：Can make1-6 inches nails
• Trademark：Huarui
• Origin：China(Mainland)
• HS Code：8463300000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. Z94-1C Z94-2C Z94-3C Z94-4C Z94-4C(2) Z94-5.5C Customized Customized Advantage Use Widely Condition New Model Z94-1c/Z94-2c/Z94-3c/Z94-4c/Z94-5.5c/Z94-6c/Z94-8A Material Wire Rod, Steel Wire Usage Making Different Size of Nails Nail Length 9-150mm Nail Dia. 0.9-5.5mm Using Life More Than 15 Years Color Optional Transport Package Wooden Case or as Your Requiremnets Specification Can make1-6 inches nails Trademark Huarui Origin China(Mainland) HS Code 8463300000 Production Capacity 300 Sets/Month

Product Description

First Grade Factory Nail Machine for Producing All Sizes Nails


1.Function:

1.This nail making machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics.

2. Especially it can make excellent quality YouMao nail and other special-shaped nail, which are suitable for high-speed studs for welding machine and nail gun.

2. Specifications of nail making machines:

Model	Diameter of nails	Length of nails	Designed speed	Motor	Dimension   (L*W*H)	Weight
Z94-1C	0.9-16.mm	9-25mm	450pcs/min	1.5kw	1.5*1.3*1.1m	1.2tons
Z94-2C	1.2-2.8mm	16-50mm	380pcs/min	2.2kw	1.7*1.3*1.4m	1.45tons
Z94-3C	1.8-3.5mm	30-75mm	320pcs/min	3kw	2.0*1.4*1.4m	1.8tons
Z94-4C	2.8-4.5mm	50-100mm	260pcs/min	4kw	2.2*1.6*1.6m	2tons
Z94-4C(2)	2.8-5mm	50-120mm	260pcs/min	4kw	2.3*1.6*1.3m	2.1tons
Z94-5.5C	3.8-5.5mm	75-150mm	220pcs/min	5.5kw	2.5*1.8*1.5m	2.3tons
Z94-5.5C(2)	3.8-5.0mm	75-180mm	220pcs/min	5.5kw	2.5*1.8*1.5m	2.3tons
Z94-6C	4-8mm	80-200mm	180pcs/min	11w	3.4*1.9*1.5m	3tons
Z94-8A	5-10mm	180-320mm	120pcs/min	22kw	6*2.1*1.9m	10tons

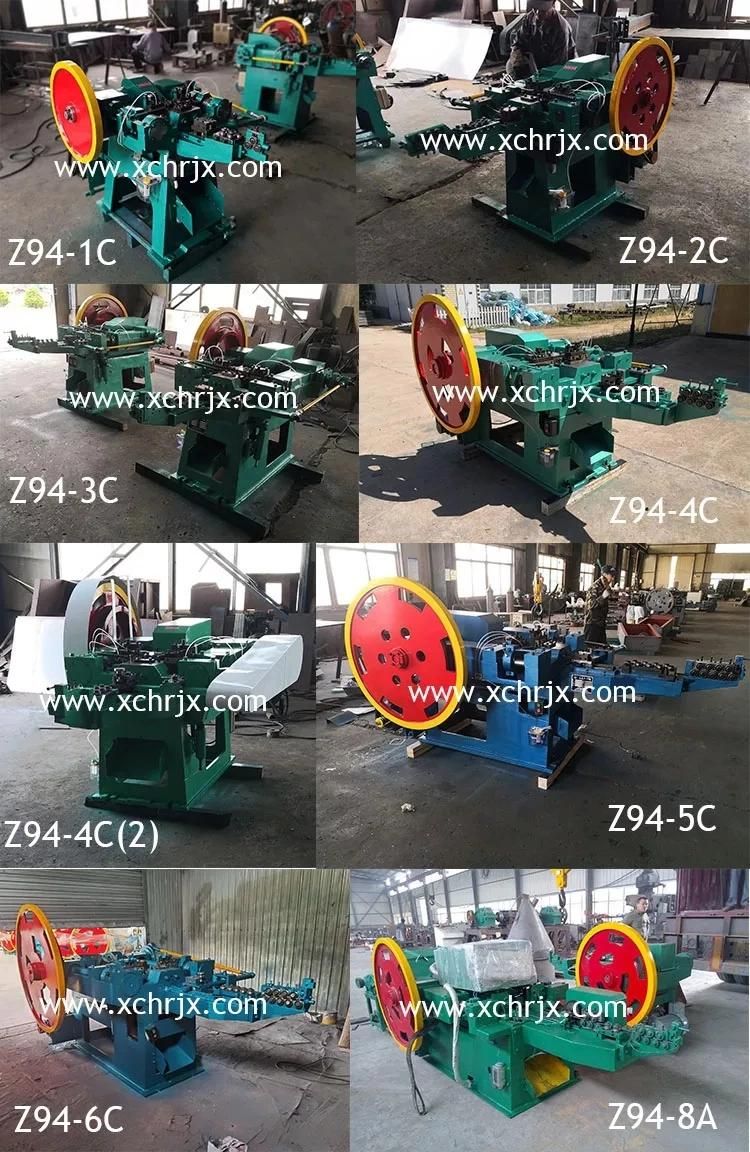

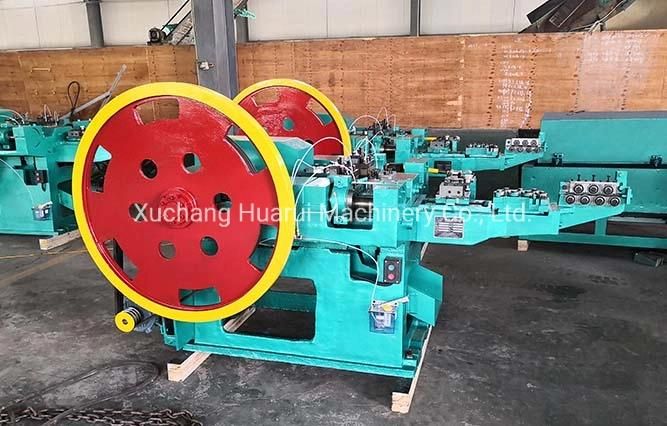

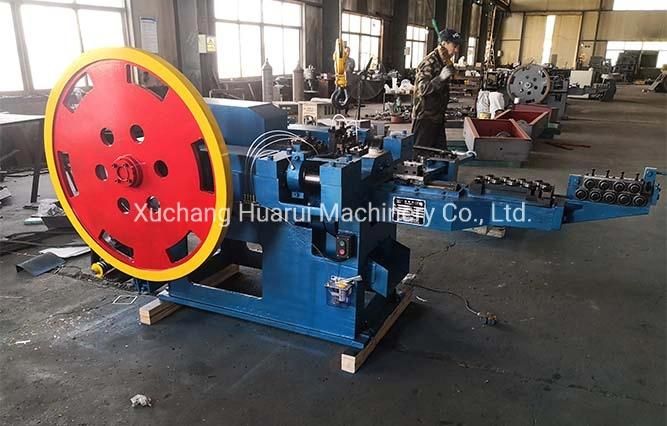

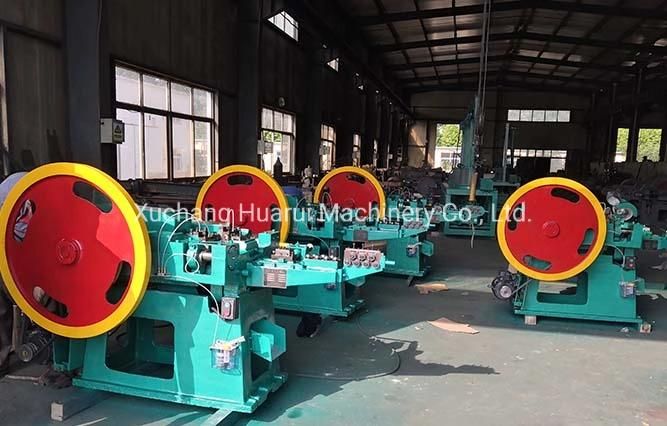

3.Machine Pictures

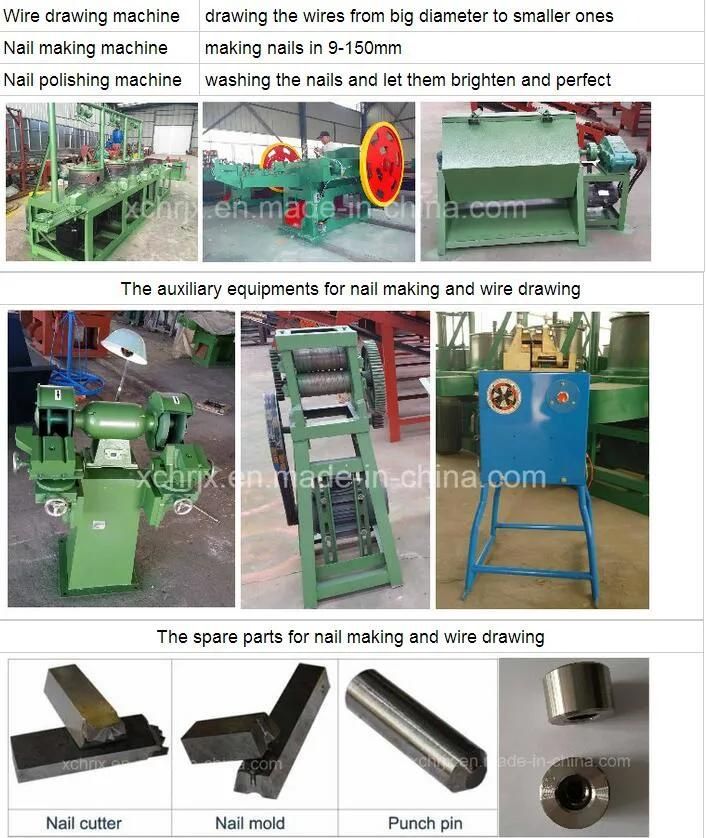

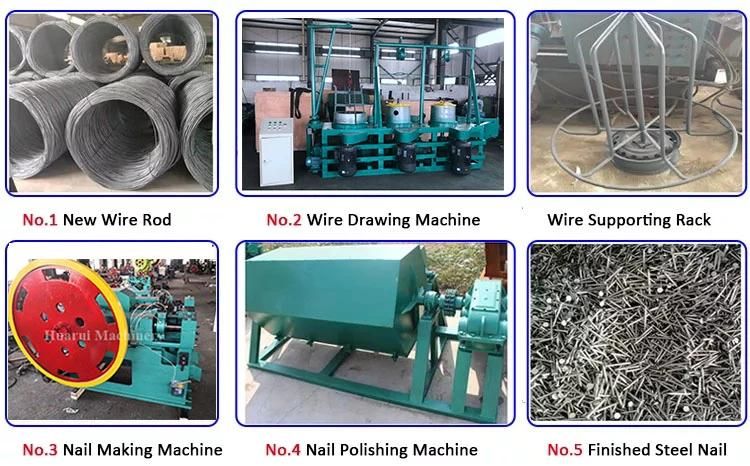

4.Main part

5. Machine features

1. The nail making machine has the features of small in size, easy to move, low noise, low power consumption, and it is easy to operate, just need to change different size mould for making different diameter nails, if you want to make different lengths of nails for same diameter, no need to change anything.

2. The nail making machines can feed the materials automatically, and making nail body straight, nail points sharp and symmetric, nail caps round. Each nail made from this machine is excellent and perfect.

3. The main components (shaft, cams and gear) of nail machine are made of high quality steel, and durable in use, has good stability.

4. Free training of operating machines is offered for fee.

6. Customer picture

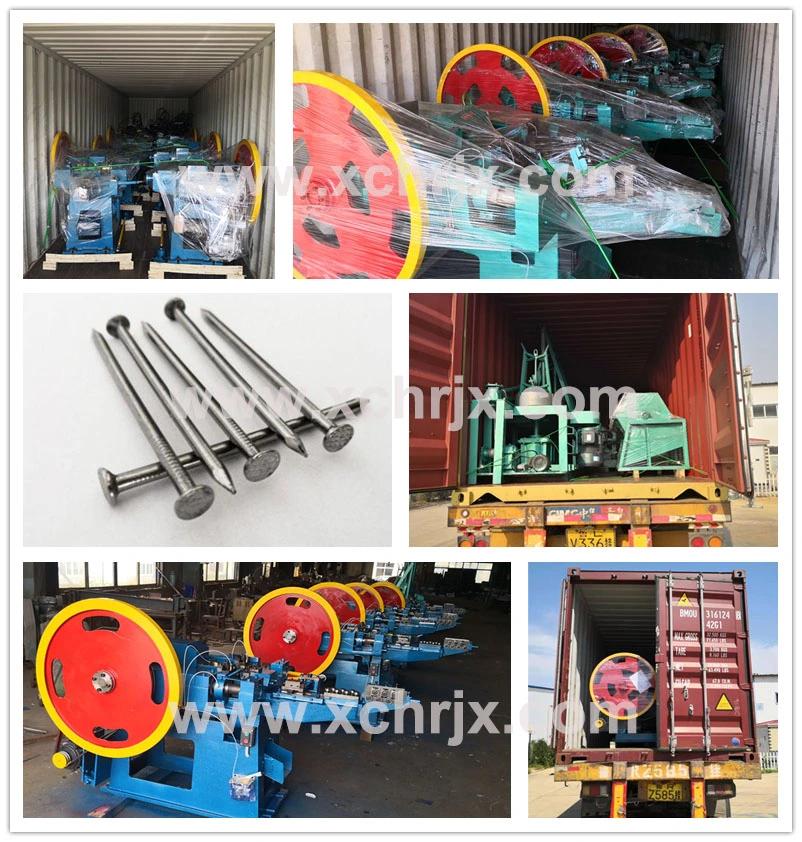

7. Shipping Pictures

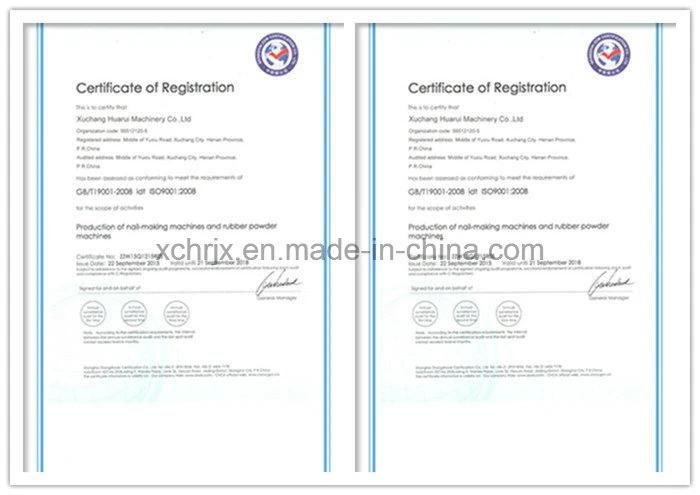

8. ISO Certification
