• Model NO.：DX840,825
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Name：Color Steel Tile Double Layer Roll Former
• Processing Material：Aluzinc,Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Effective Width：840mm&850mm
• Feeding Width：1000mm
• Main Motor Power：4 Kw
• Pump Power：3 Kw
• Shaft Diameter：75mm
• Forming Steps：Upper Level Is 13 Steps, Down Level 15 Steps
• Roller Material：45# Forged Steel, with Hard Chrome Plating
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX840&850
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. DX840/825 Customized Customized Advantage Easy to Maintenance Condition New Name Color Steel Tile Double Layer Roll Former Processing Material Aluzinc/Galvanized Steel/Colored Steel Coil Material Thickness 0.3-0.8mm Effective Width 840mm&850mm Feeding Width 1000mm Main Motor Power 4 Kw Pump Power 3 Kw Shaft Diameter 75mm Forming Steps Upper Level Is 13 Steps, Down Level 15 Steps Roller Material 45# Forged Steel, with Hard Chrome Plating Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX840&850 Trademark DIXIN Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Month

Product Description

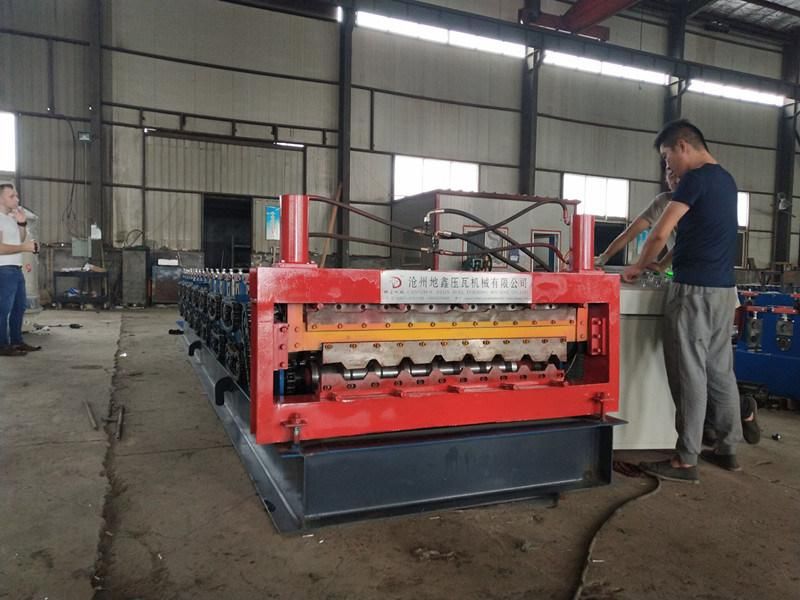

Hydraulic Color Steel Tile Double Layer Roll Forming Machine


1. Introduce for double layer cold roll forming machine
This machine is perfectly combined two different-model machines together, this can save the space and also is easy to operate.

2. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 840mm&850mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: Upper level is 13 steps, down level 15 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 6500mm*1500mm*1300mm


3. Components of line
1. Decoiler 2 units
2. Roll Forming System 1 unit
3. Cutting Device 1 unit
4. Hydraulic Station 1 unit
5. PLC control system 1 unit
6. Runout table 1 unit

4. The structure of machine
1 set of manual decoiler

Un-powered;
Single head;
Max. Capacity: 5000kg;
Coil inner-diameter: 508mm
1 set of main roll forming machines
Steps: 13
Roller Material: 45# steel
Voltage: 380V/50Hz.

Line speed: 12m/min;
Rolling chromium thickness: 0.05 mm
1 set of computer control cabinet
It adopts Taida PLC to control. The target piece length is adjustable and digit of it can be adjusted.
5.7 inch touch screen, easy to operate

Computed mode has two modes: Automatic and manual one.
1 set of hydraulic System
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: A set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.
Power of the oil pump: 3kw Hydraulic oil: 40#
1 set of cutting mechanism
It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment: One set of cutting tool, one hydraulic tank, one cutter machine.
Stop to cut, Post cut cutting length tolerance: ± 2mm
Cutting tool material: GCr12 with quenched treatment 60-62° C
1 set of counter
One counter gauges length, pulses, and decides length
1 set of output table
It used to load the forming plate

Model number	DX 840&850 Double Deck Roll Forming Machine
Rolled material	0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	840mm&850mm
Feeding width	1000mm
Forming steps	upper level is 11 steps, down level 13 steps
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	70mm
Main frame	300H steel
Main motor power	4kw
Pump power	4 kw
Medium plate thickness	16mm
Sprocket chain	1 inch
Drive  type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
