Furring Channel Machine, Main Channel Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Type:Rolling Machine
- Forging Forming Method:Mold Forging
- Power Source:Hydraulic Pressure
- Feature:High Efficiency
- Certification:CCC, ISO9001, CE
- Warranty:12 Months
Base Info
- Model NO.:Angle 20 x 20, 25x25, 30x30, 50x50
- Customized:Customized
- Advantage:Use Widely
- Condition:New
- Name:Furring Channel Machine, Main Channel Machine
- Main Frame:400mm H-Sections Steel
- Side Board Thickness:18mm
- Main Motor Power:7.5kw
- Power Supply:380V 50-60Hz
- Shaft Number:15 Rows
- Shaft Material:Carbon Steel 45#
- Shaft Diameter:80mm
- Rolling Wheel Material:Bearing Steel Gr15 with Forging and Annealing
- Cutting Method:Hydraulic Mould Cutting or Sawed off with Punching
- Transport Package:Water-Proof Packaging, Covered with Plastic Film
- Specification:DX 20*20-50*50
- Trademark:DX
- Origin:Botou Hebei China
- HS Code:845522
- Production Capacity:20 Set Per Month
Description
Basic Info.
Model NO. Angle 20 x 20, 25x25, 30x30, 50x50 Customized Customized Advantage Use Widely Condition New Name Furring Channel Machine, Main Channel Machine Main Frame 400mm H-Sections Steel Side Board Thickness 18mm Main Motor Power 7.5kw Power Supply 380V 50-60Hz Shaft Number 15 Rows Shaft Material Carbon Steel 45# Shaft Diameter 80mm Rolling Wheel Material Bearing Steel Gr15 with Forging and Annealing Cutting Method Hydraulic Mould Cutting or Sawed off with Punching Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX 20*20-50*50 Trademark DX Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per MonthProduct Description
Furring Channel Machine, Main Channel MachineProducing process of furring channel machine:
Decoiler -active feeding-forming -caculate length --automatic cutting --product
Detailed specification of furring channel machine:
1. Manual inner tight decoiler with brake
A. Coil inner diameter 450mm-550mm
B. Maximum width of coiling600mm
C. Maximum weight of loading 2500kg
2. Main forming machine
A. Number of forming steps 10rows
B. Material of shaft 45# steel. Outer diameter 50mm
C. Main motor power: 4kw
D. The speed of forming: 3-50m/min
3. Hydraulic cutting and punching device
A. Material of blade: Cr12 mould steel with quenched treatment 60-62
B. Cutting system: Adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting, high safe factor. (tracking cutting)
High quality Punching device and cutter
4. The electrical control system
A. The Brand of display: DELTA
B. The main computer (PLC): DELTA DVP14
Delta computer (touch screen)
5. Hydraulic system
A. Adopting advanced hydraulic system of Tai Wan
B. Power: 3kw
6. The equipments coating, package
A. The coating adopt international general shade-guide
B. The package: Simple waterproof package.
7. The spare parts of the equipment.
A. The element of easy damaging: Contactor conk: 2 unit, fuse: 4 set
B. The hydraulic sealing up cushion: 1set
C. Bolt spanner: 1 set

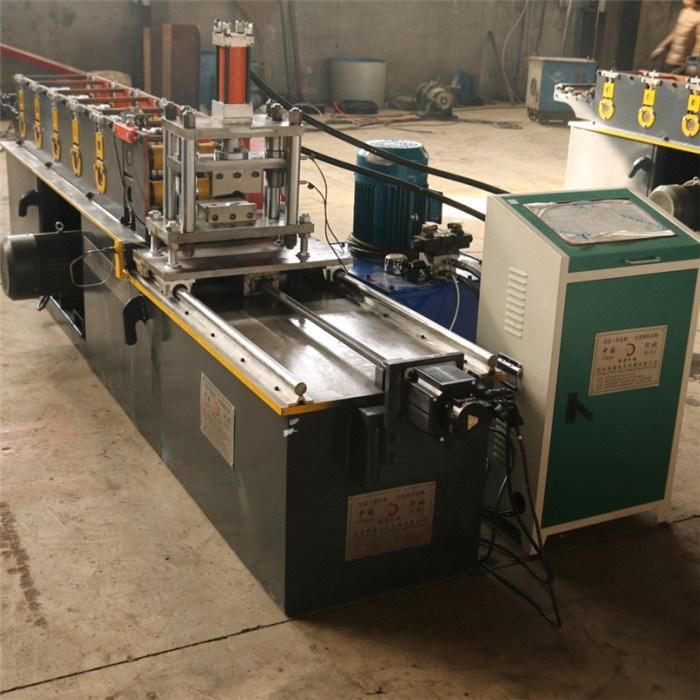

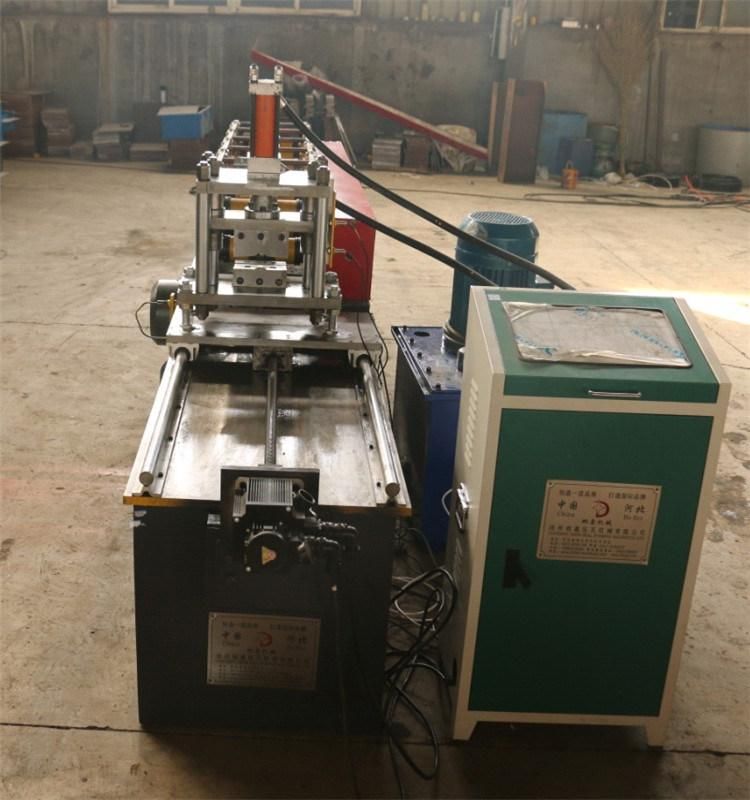

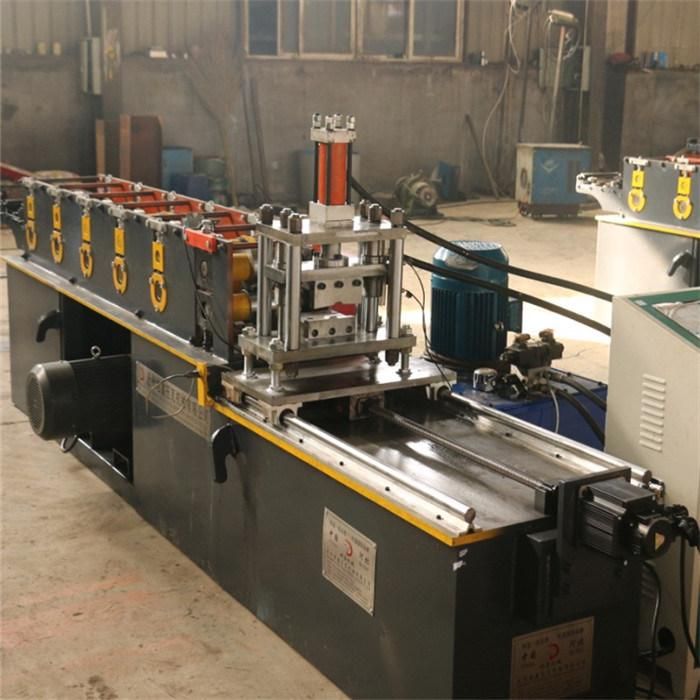

The picture of whole machine
Material specification | Galvanized and pre-painted galvanized steel. |
Thickness | 0.3 mm to 0.7mm. |
Main motor power | 7.5 kw. |
Hydraulic station power | 5.5 kw. |
Feeding width | 124mm. |
Cover width | 60mm. |
Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
Roll forming Speed | 12 m/minute. |
Cutting Tolerance | ±2mm |
Manual Uncoiler | Max. Capacity: 5000kgs. |
Voltage | As per customer's request. |
Numbers of stands | 13 stands/stations/pairs. |
Roller material | 45# steel polished and coated with chrome HRC55-60° |
Shaft diameter | 70mm |
Shaft diameter | high grade No.45 steel after treatment |
Type of cutting | Roll-formed and length-set profile cutting. |
If u have any other question about the machine, please contact me any time
