• Model NO.：DX-C21
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Russia Dx-C21 Color Roof Sheet Roll Forming Machin
• Control：Full-Auto PLC Inverter Encoder
• Station：14 Stages
• Main Power：4kw
• Pump Power：3kw
• Roller Dia：70mm
• Line Speed：12m,Min
• Coil Width：1250mm
• Cover Width：1100mm
• Coil Thickness：0.3-0.8mm
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX-C21
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Year

Basic Info.

Model NO. DX-C21 Customized Customized Advantage Use Widely Condition New Name Russia Dx-C21 Color Roof Sheet Roll Forming Machin Control Full-Auto PLC Inverter Encoder Station 14 Stages Main Power 4kw Pump Power 3kw Roller Dia 70mm Line Speed 12m/Min Coil Width 1250mm Cover Width 1100mm Coil Thickness 0.3-0.8mm Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX-C21 Trademark DIXIN Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Year

Product Description

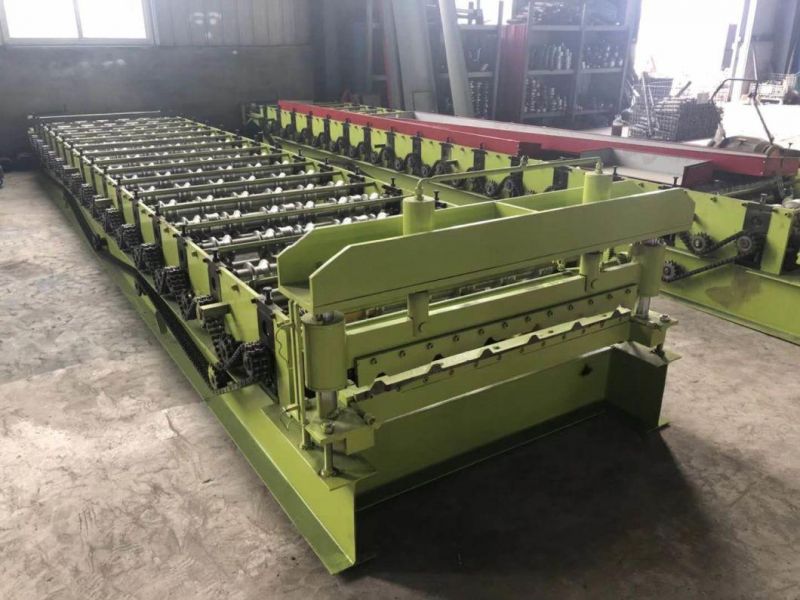

 Color Roof Sheet Roll Forming Machine

Configurations: 5t manual uncoiler, forming machine, cutter, hydraulic system, controller, output table
1. Control: Full-auto PLC inverter encoder
2. Station: 14 stages
3. Main power: 4KW
4. Pump power: 3KW
5. Roller dia: Φ 70mm
6. Line speed: 12m/min
7. Coil width: 1250mm
8. Cover width: 1100mm
9. Coil thickness: 0.35-0.8mm
10. Blade STD: Cr12 hardening treatment
11. Roller STD: 45#steel hardening with Chrome coating
12. Overall size: 7500mm× 1400mm× 1500mm
13. Weight: About 4.5 tons


2. Working process:
1--- decoiler 2---entry bench 3---main forming machine

4---hydraulic preseing &cutting 5---PLC control system


6---oil pump 7---exit rack
3. Roll forming machine.
4. The electrical control system
A. The Brand of display: Taida
B. The main computer (PLC): Tai Da DVP14
5. Hydraulic system
A. Adopting advanced hydraulic system of Tai Wan

B. Power: 3kw
6. The equipments coating, package
Simple waterproof fit for ocean ship, need a 40GP container, before the loading, we will fixed the machine, ensuring that it won't move on the sea, before the shipping, we will invite our customer to check the machine, after confirmed there was no problem, then we will ship the machine.
A. The coating adopt international general shade-guide
B. The package: Simple waterproof package.
7. The spare parts of the equipment.
A. The element of easy damaging: Contactor conk: 2 unit, fuse: 4 set
B. The hydraulic sealing up cushion: 1set

C. Bolt spanner: 1 set
8. Terms
1). The payment terms: Pay 30% after signed the contract, Pay 70% after check and accept before deliver.
2). Warranty: One year, and we will provide the technical support for the whole life.
3). When picking up goods, our company will provide the operating instruction book, the flow drawing of equipment, installing sketch map of equipment, The hydraulic principle chart, the element of easy damaging, the total chart of equipment.

4). Delivery time: Within 45 working days after receiveing deposit.

Material width	1250mm
Effcitive width	1000mm
Thickness of color steel	0.25-0.8mm
Machine size	7000*1600*1200mm
Machine weight	3t
Main motor power	3+3kw
Hydraulic station power	4kw
Main frame	300H steel
Chain	1 inch
Diameter of shaft	Φ70mm
Material of roller	45# steel
Number of rollers	13
Forming speed	8-10m/min
Control system	PLC computer control
Cutting system	Automatic hydraulic cutting

If u have any interest,please contact me any time
