• Model NO.：CF06
• Material of Strip：SUS304, 321 and 316L
• Forming Type：Mechanical
• Warranty：One Year
• Packing Details：Plywood Box
• Transport Package：Standard Seaworthy Package Plywood Box
• Specification：SGS
• Trademark：HLT
• Origin：Jiangsu China
• HS Code：844790900
• Production Capacity：400sets,Year

mechanical Hose Making Machine
Machine Type No.
HLT-M-32
Technical Data
Application of the hose: natural and water hose
Size range: DN8 up to DN32
Wall thickness: 0.15-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions: 8000*1100*1700
Packing details
Plywood box and standard pallet
MOQ
1 set
Warranty
1 year
Payment terms
T/T, L/C, D/P, Western union
Parameter of hose

No.
Size
Tube OD
(mm)
Wall thickness
(mm)
Hose ID
(mm)
Hose OD
(mm)
Pitch
 distance
(mm)
Width of the strip
(mm)
1
DN 8
10.3
0.18
8
11.3
2.7
31.8
2
DN10
12.3
0.18
10
13.5
2.9
38.1
2
DN 12
15
0.18
12.3
16.3
3.2
46.6
3
DN 16
20
0.2
16.2
21.3
4.5
62.2
4
DN 20
23.5
0.25
20
25
4.5
73.0
5
DN 25
30
0.3
25
31.5
4.5
93.3
6
DN 32
39.5
0.3
33
41
4.5

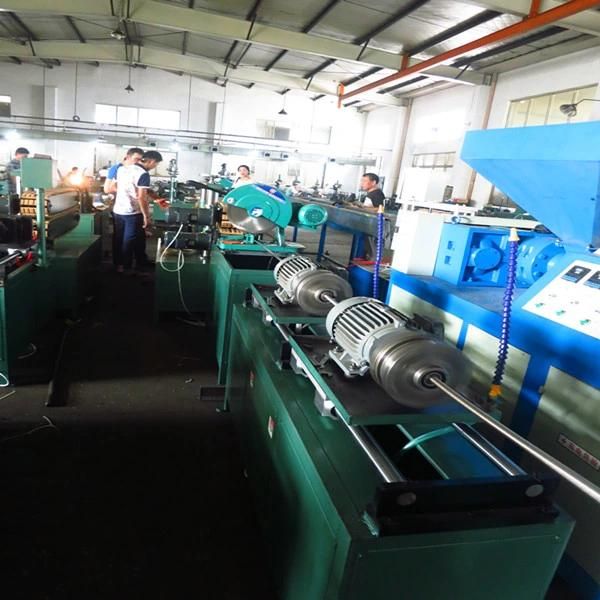

123.2Production line

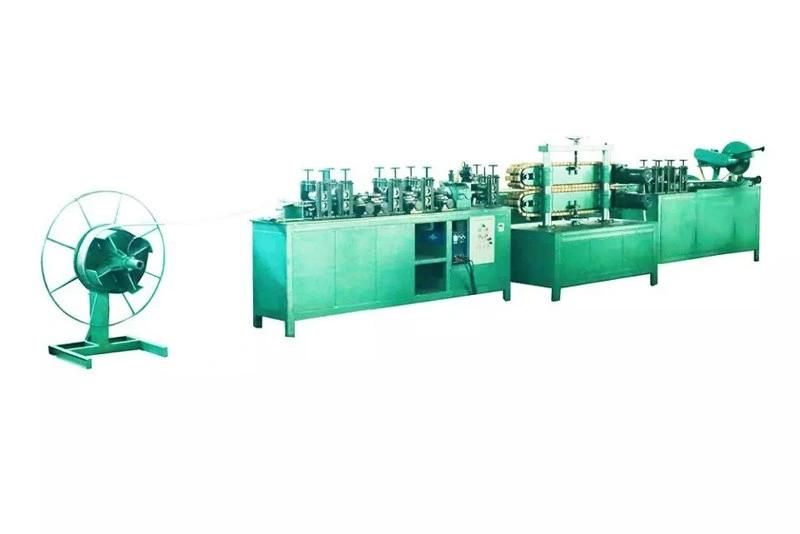

Picture of machine

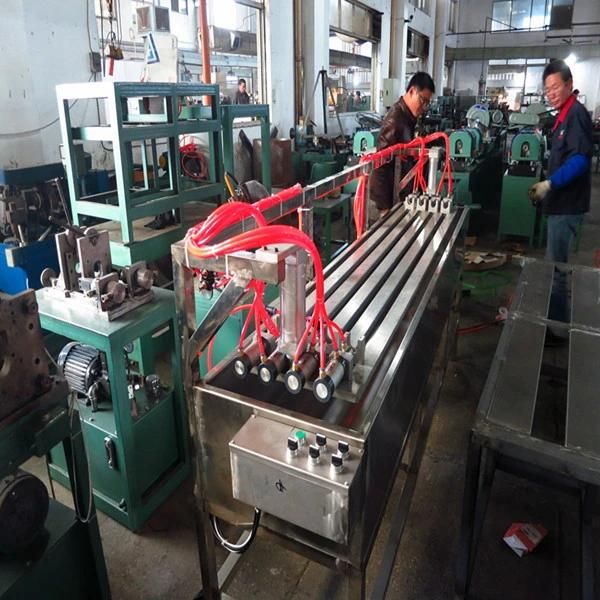

Testing bench
The machine is widely used for following hose testing:
water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing
Size range:DN8-32mm
Pressure:6bar
Max. length of the hose: up to 2000mm
No. of hoses testing at the same time: 4-8pcs
Testing medium: water



Vertical fitting welding machine
Size range: DN8-32
Welding type: TIG welding
Welding position: circumferential seam welding
Compact structure
Torch Automatic rotating


Hose compressing machine
To get more flexible hose, the metal hose will be compressed on this month, the pitch distance will be closed which make hoses more flexible.
Application: vacuum hose/bellow, high flexible bellows
Size range: HJ-BA100 DN25-100mm
HJ-BA200 DN100-200mm


Company information

We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose,  with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose
The sizes are as follows:
Annular and corrugated metal hose: ID8 till ID600 on different machine


FAQ for hose making machine

Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
