• Model NO.：CS-A,CS-B,CS-C
• Transport Package：Wooden Case or Nude Packaging
• Specification：3100*1000*1150mm
• Trademark：JIAKE
• Origin：Hebei, China
• HS Code：8463300000
• Production Capacity：43sets,Month

Basic Info.

Model NO. CS-A/CS-B/CS-C Transport Package Wooden Case or Nude Packaging Specification 3100*1000*1150mm Trademark JIAKE Origin Hebei, China HS Code 8463300000 Production Capacity 43sets/Month

Product Description

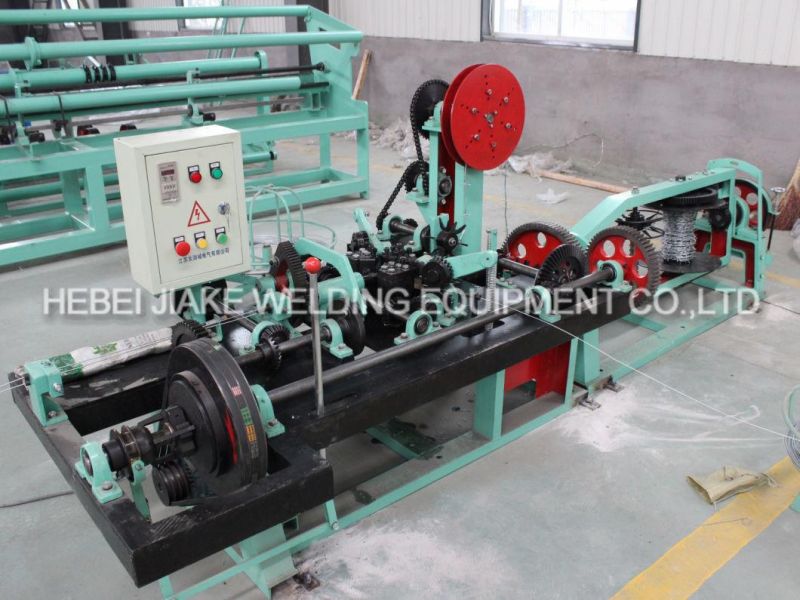

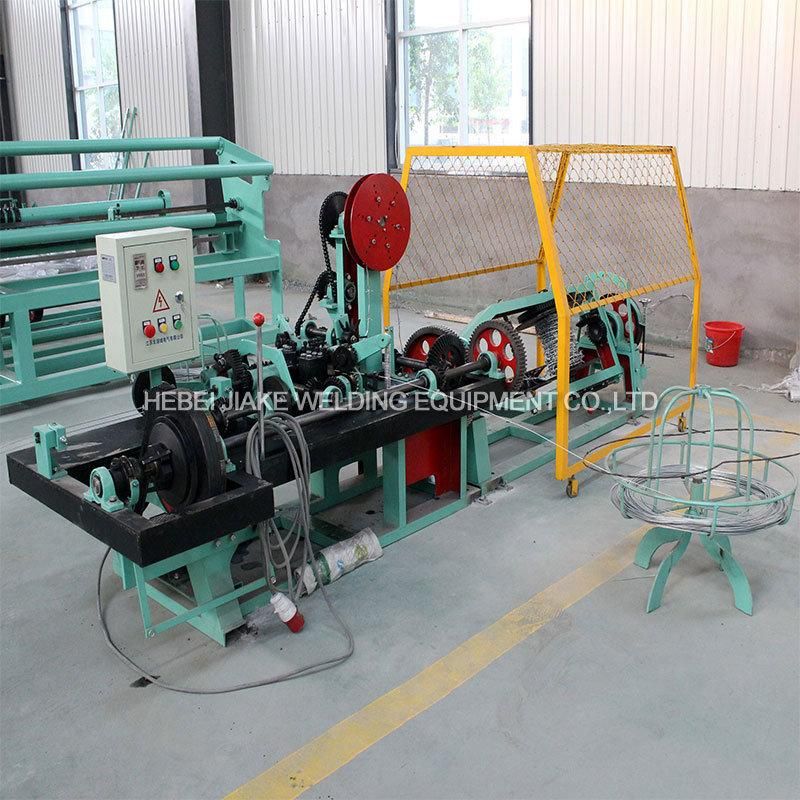

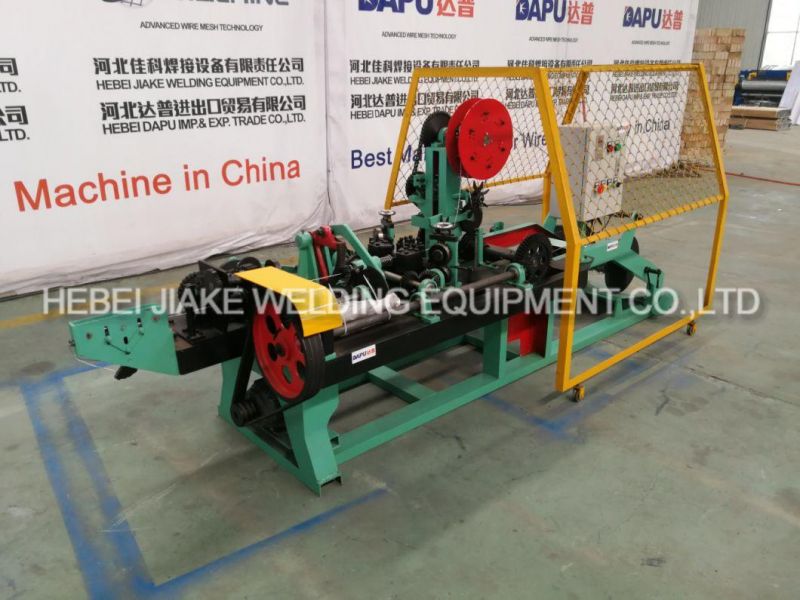

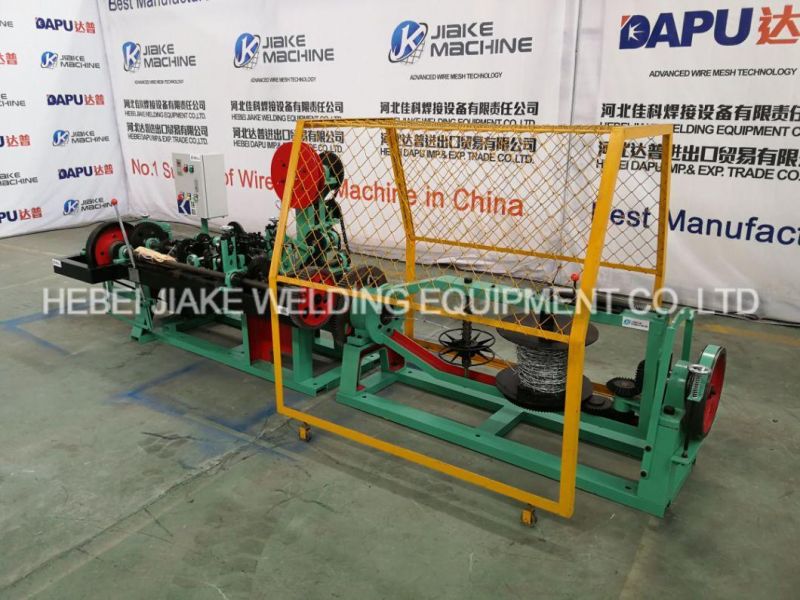

Barbed Wire Fencing Machine

 1.Description:

1. Application: The machine can produce barbed wire which is extensively used in national defenses, military, railway, agriculture, animal husbandry and other industries.
2. Manually installation, Easy to set up;
3. Steel cover on driving shaft for safety operation;
4. Saving materials and high capacity;
5. Counter to count the number of barbs and calculate length of barbed wire.
6. Button switches and leveler to start and stop machine easily.
7. Quick and easy roll extraction from the machine.
8. Guiding system to avoid wire snarls.

2.Technical parameter:

Model	CS-B Type
Motor power	2.2KW
Main drive shaft speed	355r/m
Wire Diameter	2.0-3.0mm
Barbed wire diameter	1.6-2.8mm
Barbed space	102 / 127mm
Theoretical production	40kg/h, 17m/min
Raw material	Galvanized steel wire or PVC coated wire.
Total weight	1000kg
Dimension	3100×1000×1150mm

3.Finished Mesh:

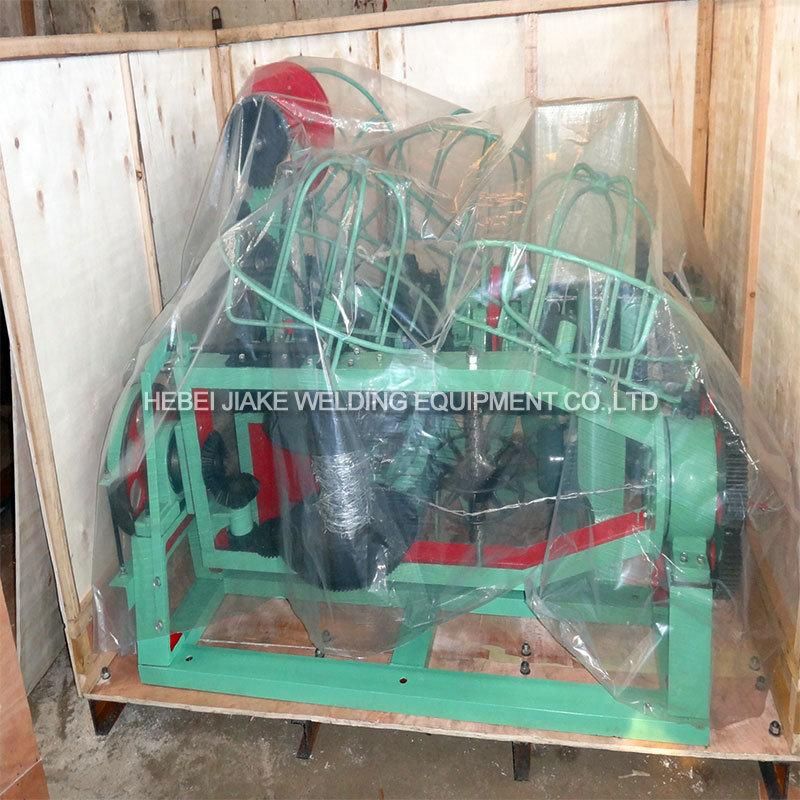

4.Loading Pictures:


5.Certifications we have:

We also provid Oringinal Certification,PVoC Certification,ECTN and so on.



 6.Advantages of our machine:

1.High speed
The machine can weave mesh with the speed of 70-80m*2/h.It works in high efficiency and  owns long service life.
2.Easy to operate
You only need to put the head into the machine,and pull the begining of the mesh to the rolling machine.Then it would weave mesh automatically.

You may control the machine by buttons on electric cabinet conveniently.

3.Long service life

The electric cabinet is just like the head of machine.All of the electric component in cabinet we usd are producted by  famous brand.Those famous brands promiss of the service life of our machine.






7.After sale service

NO.1

We provide exactly install videos and live video of instruction.

NO.2

We will send our best engineer to buyer's factory for installation, debugging and training.

Guarantee time: one year since the machine was installed at buyer's factory but within 18 months against B/L date.

NO.3

We promiss the original part purchasing of machines in ten years.

Inquiry now,we will replay as soon as possible.
