• Model NO.：According to Customers′
• Material：Alloy
• Application：Metal Recycling Machine, Metal Cutting Machine
• Surface Process：Multi-Option
• Designing：Available
• OEM：Available
• Transport Package：Carton
• Specification：80X60X130mm
• Trademark：ZHD
• Origin：Wuhan, China
• HS Code：8401200000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. According to Customers′ Material Alloy Application Metal Recycling Machine, Metal Cutting Machine Surface Process Multi-Option Designing Available OEM Available Transport Package Carton Specification 80X60X130mm Trademark ZHD Origin Wuhan, China HS Code 8401200000 Production Capacity 50000PCS/Year

Product Description

Note: This product is just a sample part we once machined according to a customer's drawing, and the price shown on this page is not the real price.

Our procedure for customizing parts for you is as follows:


1. Customer provides 2D or 3D drawings;
2. We quote the prices according to your drawings(we can also design the parts according to your specific requirements);
3. Orders are confirmed by both parties;
4. We start to put your parts into machining;
5. We package and deliver the parts the customer;

Description of This Part

Material:
6061-T6, ROHS10-compliant

Workpiece Requirements:
The machining accuracy requirements of this workpiece are general, but the appearance requirements are high, and the surface treatment belongs to the unconventional color system.

Machining Characteristics:
   1.Machined by CNC 3-axis machining center, and two sides are roughened, and stock is left out on one side.
   2.Aging treatment is applied to fully remove the cutting stress in the workpiece.
   3.Inner frame is finished with 3-axis CNC machining center and ensure that its machined surface is not deformed.
   4.4-axis machining with fixture is applied to  finish milling the 4 sides so that the forming can be done at one time and ensure the consistency and precision. Tolerances are to be machined within ± 0.02mm.
   5.3-axis machining is applied to machine the final machining surfact to ensure that its parallelism and flatness are within 0.02mm.

Surface Treatment
   Spraying 200# fine sand + gray anodizing to meet the requirements of environmental protection.

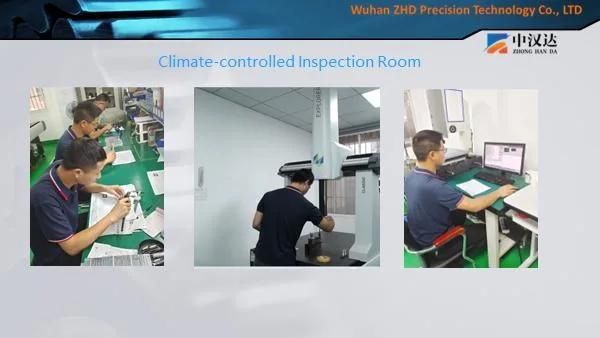

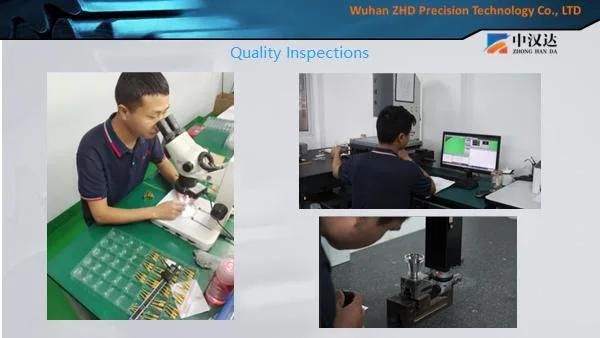

Inspection
The places where accuracy is required meet the requirements of drawing, and the flatness and perpendicularity are within 0.02mm, and it is tested with CMM, and finished product reports from CMM are generated.
