• Model NO.：HCT-808
• Max pitch of spring：30mm
• Max feeding speed：300m,min
• Spring Index：3
• Feeding roller pairs：1 pair
• Feeding motor：1.8kw
• Cutter motor：0.75kw*2
• Transport Package：Vacuum Packaging
• Specification：L950*W1150*H1700mm
• Trademark：WECOIL
• Origin：China
• HS Code：84633000
• Production Capacity：500 Sets

Basic Info.

Model NO. HCT-808 Max pitch of spring 30mm Max feeding speed 300m/min Spring Index 3 Feeding roller pairs 1 pair Feeding motor 1.8kw Cutter motor 0.75kw*2 Transport Package Vacuum Packaging Specification L950*W1150*H1700mm Trademark WECOIL Origin China HS Code 84633000 Production Capacity 500 Sets

Product Description

Function point
Eight axis control

1. Core seat moving shaft

2.variable diameter

3.wire feed

4.up-cut

5.down-cut

6.up variable diameter

7.down variable diameter

8.Pitch axis
Eight axes can be synchronized or single step operation.
Computer interface displayed in Chinese and English which makes the operation easy.
Configuration of left and right hand winding blade holder.
The cutter can be realized on the straight knife and bevelment. torsion cut and pendulum cut.

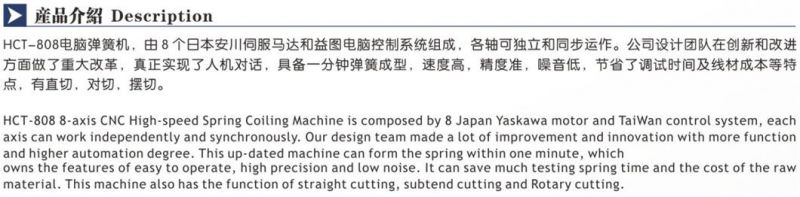

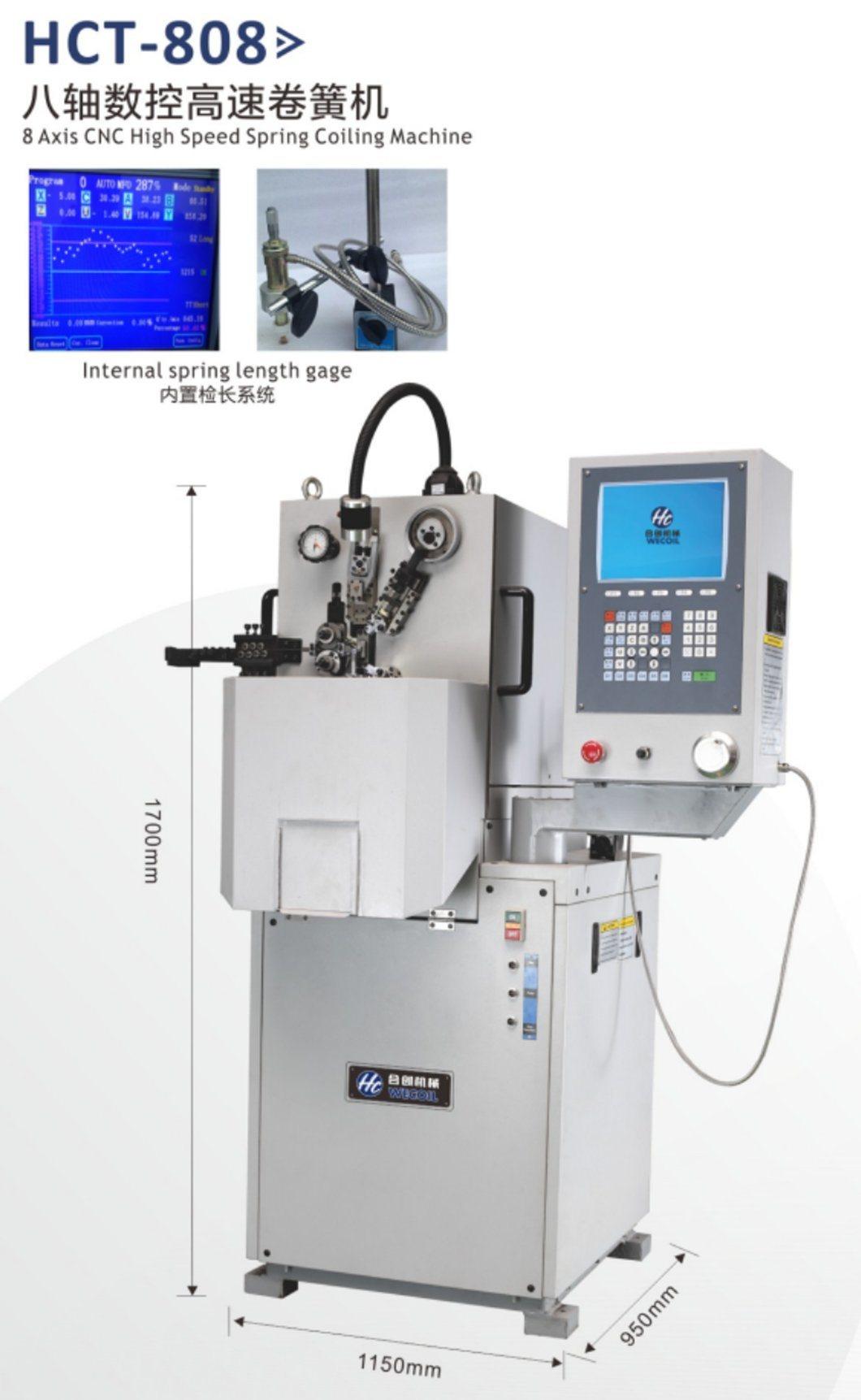

HCT-808 8-axis CNC High-speed Spring Coiling Machine is composed by 8 Japan Yaskawa motor and TaiWan control system, each axis can work independently and synchronously. Our design team made a lot of improvement and innovation with more function and higher automation degree. This up-dated machine can form the spring within one minute, which
owns the features of easy to operate, high precision and low noise. It can save much testing spring time and the cost of the raw material. This machine also has the function of straight cutting, subtend cutting and Rotary cutting.



Foreign sales team(Miss Icey Lee&Miss Dora Zhang&Boss Mr. Lau&Miss Carol Gu&Miss Yuki Xu)


Group Photo
