• Model NO.：DP-FP-2500A
• Cable Carrier：Germany Igus
• Welding Electrodes：Industrial Pure Coppers
• Control Box：Touch Screen
• Servo Motor：Japan Panasonic
• Transport Package：Machinery Is Packed with Plastic Film Against Ocea
• Specification：5.4*2.8*1.7m
• Trademark：JIAKE
• Origin：China
• HS Code：8515809090
• Production Capacity：30 Sets,Month

ModelDP-FP-2500AWire diameter2.5-6mm/3-5mmLine wire space50-300mmCross wire space25/12.5mm-300mmWidth of meshMax.2.5mLength of meshMax.6mWelding electrodes48pcsWelding speed50-75 times/minRated electrical power125kva*6pcsNeeded powerMin.160kvaWeight4.2TOverall size5.4m*3.2*1.7m

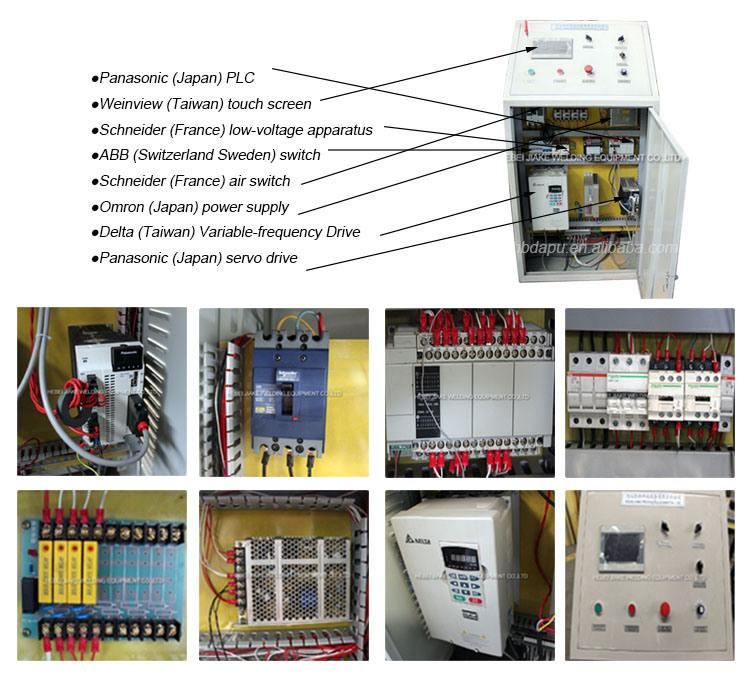

2. Main electric components

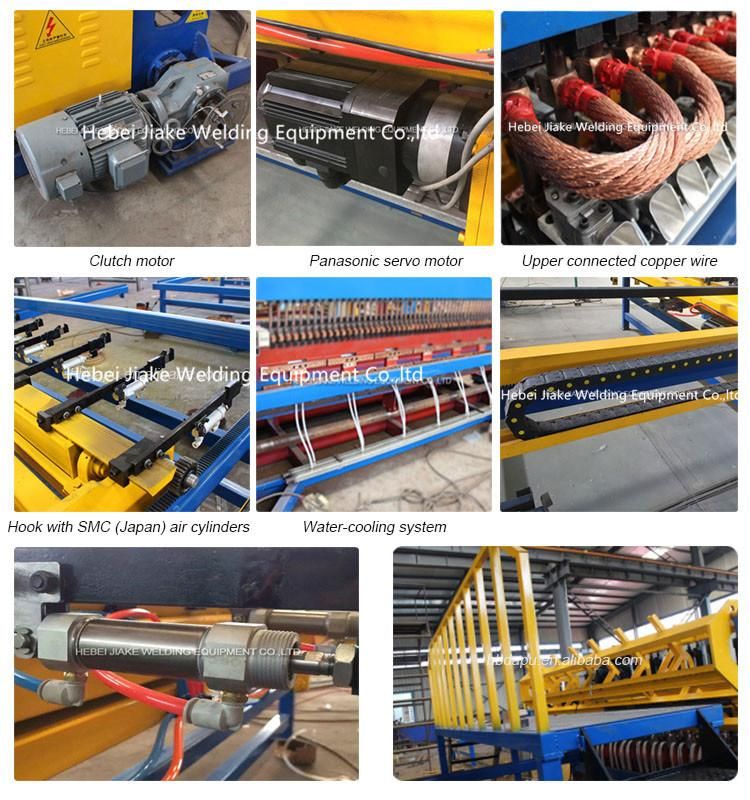

3. Main technologies

     1.The control panel is more intelligent, very easy to operate. (Panasonic PLC program)

     2.The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.

     3.The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.

     4.Pure red copper (upper) and chromised bronze (lower), durable.

     5.Clutch motor and helical gear reducer connect the principal axis directly, welding stable.

     6.Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

     7.Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.

     8.The cable drag chain is Igus brand, imported from Germany, not easily hang down.4.


 4. Details advantage



5. Wire feeding way

      The longitude wires and cross wires should be pre-straightened and pre-cut.

      1.The longitude wires are inserted into the slot tunnels manually.

      2.The cross wire are put into the cross wire feeder, which is controlled by step motor&SMC (Japan) air cylinders, automatic falling.

6. Auxiliary Equipments

1. Wire straightening and cutting machinewire diameter: 2-6mm.Cutting length: 100-6000mm.Straightening motor: 2.23KW.Cutting motor:  1.5KW.Speed:             30m/min.    Straighten degree: +/-1mmMachine size:2100*800*1100mm2. Fence mesh bending machineWire diameter: 2.5-6mmWidth: 3200mmPressure: 100TNominal pressur: 800KNMotor: 7.5KWWeight: 3TDimension: 3340*1000*2300mm



7. Related machinery. - Hebei Jiake Welding Equipment Co.,LTD
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, razor barbed wire machine,wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine,steel fiber making machine etc.

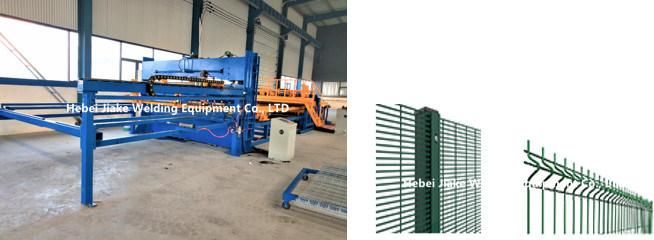

7.1 Fence mesh welding machine
Fence mesh welding machine is also called fence mesh welding line, security fence machine, anti-climb fence welding machine, and fence panel machine. It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.

Model	DP-FP	Wire diameter	2.5-6mm
Line wire pitch	50-300mm	Welding torch	48pcs
Cross wire pitch	Min.12.7	Welding speed	Max.80 times/min
Welding width	Max.3m	Welding transformer	150kva*6/10pcs
Mesh length	Max.4m	Mesh type	panel mesh

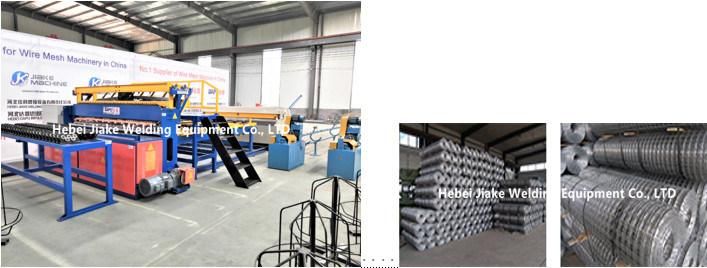

7.2 Welded wire mesh machine in roll
Welded wire mesh machine, also called welded roll mesh machine, electric welded mesh machine, electric mesh welding line.
It's used to make construction mesh, wall mesh, animal cage, mining etc.

Model	DP-DNW	Wire diameter	0.65-2.5mm
Line wire pitch	6.25-150mm	Cross wire pitch	6.25-150mm
Mesh width	0.9-2.5mm	Main motor	2.2kw/4kw/5.5kw/7.5kw
Welding transformer	60-80kva*3/4/5/7/8pcs	Welding speed	Max.60-180 times/min
Weight	2T/2.5T/3T/3.5T/4T	Mesh type	roll mesh

7.3 Roll BRC mesh welding machine
Roll mesh welding line,also called automatic welded mesh machine,welded wire mesh roll machine,used to make road mesh,reinforcing mesh,construction mesh etc.

Model	DP-FP-2500BN	Wire diameter	2.5-6mm
Line wire pitch	50-300mm	Cross wire pitch	Min.50mm
Welding width	Max.2500mm	Roll length	Max.100mm
Welding speed	Max.75 times/min	Welding torch	48pcs
Welding transformer	150kva*6pcs	Mesh type	roll mesh

7.4 Pneumatic reinforcing mesh welding machine
Reinforcing mesh welding line,also called BRC mesh welding machine,construction mesh welding machine.with more than 20 years experience on desgin and manufacture,our BRC mesh welding machine is featured by high capacity,easy operation and precise control.

Model	DP-GW-2500	Wire diameter	3-12mm
Line wire pitch	50-300mm	Cross wire pitch	Min.12.7/25mm
Mesh length	Max.12m	Mesh width	Max.3000mm
Welding torch	Max.24/30/48/61pcs	Welding transformer	150kva*6/8/12/15pcs
Welding speed	Max.80 times/min	Mesh type	panel mesh

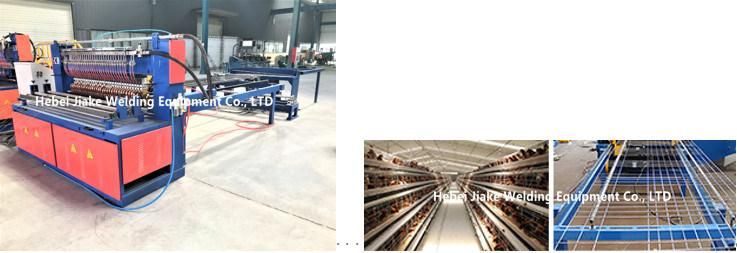

7.5 Chicken cage mesh welding machine
Chicken cage mesh welding machine,also called poultry cage mesh welding machine,breed aquatics welding machine.
It's used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh etc.

Model	DP-AW-1600E	Wire diameter	2.2-3.5mm
Mesh width	Max.1600mm	Line wire pitch	Mostly 50-300mm
Welding speed	Max.1200 times/min	Cross wire pitch	Min.20mm or custom
Welding torch	25/30/32pcs	Welding transformer	125kva*3/4pcs
Weight	2.5T/3T/3.2T	Mesh panel	panel mesh and roll mesh

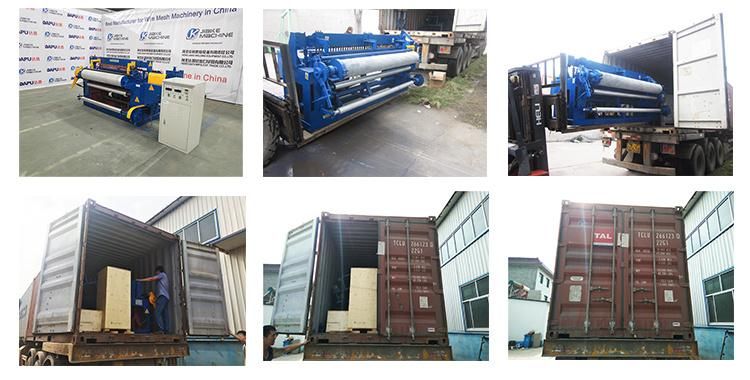

8. Loading photos.- Hebei Jiake Welding Equipment Co.,LTD
