Monthly Deals Portable Electric Metal Pipe Cutting and Beveling Machine for Welding
SHANGHAI CHD WELDING & CUTTING EQUIPMENT CO., LTD.- Warranty:1.5 Years
- Type:Pipe Cutting and Beveling Machine
Base Info
- Model NO.:ISC-63
- Style:Hand-held
- Layout:Portable
- Automatic Grade:Automatic
- Power Source:Electric
- Certification:CE, ISO, EPA, BV, SGS, TUV Rheinland
- Product Name:Portable Electric Pipe Beveling Machine
- Pipe Diameter(O.D):25-63mm
- Wall Thickness:3-6mm

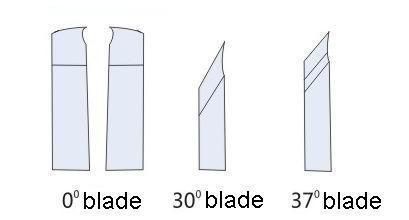

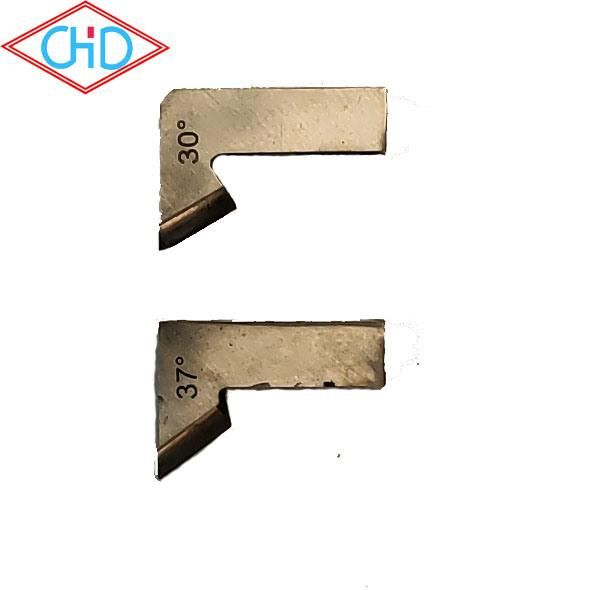

- Bevel Angle:0 Degree, 30 Degree, 37 Degree
- Voltage:AC 220V
- Frequency:50Hz,60Hz
- Power:1.1kw
- Color:Blue,Yellow or Customized
- Dimension:430*270*70mm
- Net Weight:11kgs
- OEM:Yes
- ODM:Yes
- Beveling Machine Usage:for Metal Pipe Beveling
- Usage:for Metal Pipe Beveling Before Welding
- Application:Petroleum, Chemical Industry, Electric Power etc.
- Transport Package:Special Box and Wooden Case
- Specification:As technology specification
- Trademark:CHD
- Origin:Shanghai China
- HS Code:8456909
- Production Capacity:20000 Set,Year
- Package size per unit product:53.00cm * 37.00cm * 8.00cm
- Gross weight per unit product:21.000kg
- Lead Time:2 days (1 - 30 Pieces)
To be negotiated ( > 30 Pieces)
Description
Basic Info.
Model NO. ISC-63 Style Hand-held Layout Portable Automatic Grade Automatic Power Source Electric Certification CE, ISO, EPA, BV, SGS, TUV Rheinland Product Name Portable Electric Pipe Beveling Machine Pipe Diameter(O.D) 25-63mm Wall Thickness 3-6mm Bevel Angle 0 Degree, 30 Degree, 37 Degree Voltage AC 220V Frequency 50Hz/60Hz Power 1.1kw Color Blue/Yellow or Customized Dimension 430*270*70mm Net Weight 11kgs OEM Yes ODM Yes Beveling Machine Usage for Metal Pipe Beveling Usage for Metal Pipe Beveling Before Welding Application Petroleum, Chemical Industry, Electric Power etc. Transport Package Special Box and Wooden Case Specification As technology specification Trademark CHD Origin Shanghai China HS Code 8456909 Production Capacity 20000 Set/YearPackaging & Delivery
Package size per unit product 53.00cm * 37.00cm * 8.00cm Gross weight per unit product 21.000kg Lead Time 2 days (1 - 30 Pieces)To be negotiated ( > 30 Pieces)
Product Description

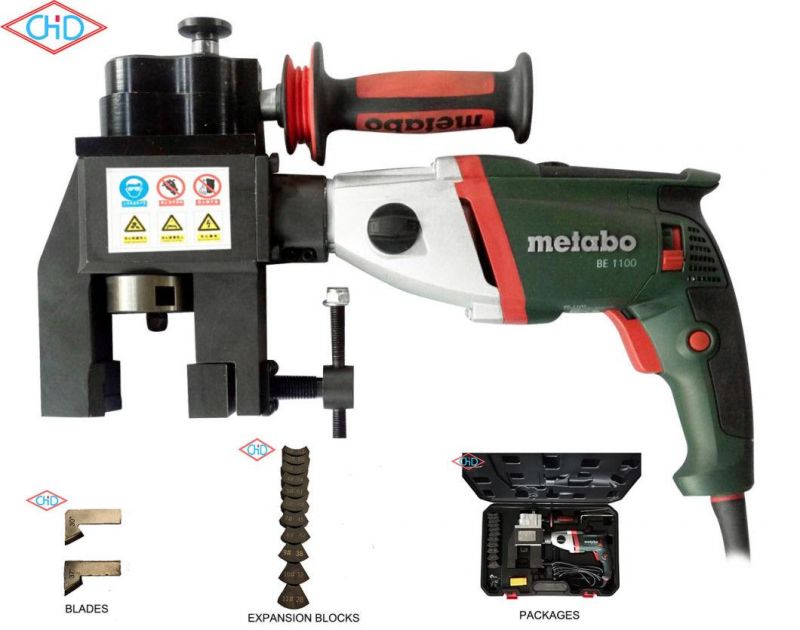

Products photoApplication
The portable design of pipe beveling machine can realize indoor and outdoor grooving work as long as there is power supply. Pipe beveling machine is widely applied for pipeline construction and maintenance in various industries, such as petroleum, chemical industry, electric power, water transportation, boiler etc. Through constant improvement, the products not only can replace traditional beveling mode by gas cutting and polishing, enhance work effeciency, reduce labor intensity, but also can improve welding quality.
Function
Simple to install, beveling performance very fast.
It is applicable for various kinds of metal pipe, and available to a wide range of pipe diameter.
Adopting mechanical cutting beveling method, it can maintain well mechanical properties of the material quality.
Able to do flat-end, V, X, U shape beveling to the pipe, meet the requirement before butt welding.
Features
1. German Metabo brand motor as the driving force
2. HIgh torque, long life, high effeciency
3. Compact structure, especially suitable for small space and small pipe distance
4. Strong propulsion and smooth groove
5. Automactic feeding, rapidly finish feeding and retracting knife operation
6. Self-fixed at the pipe center, quick and easy operation.
6. Able to bevel the angel between 0°- 37°.
7. High beveling speed and labor saving.

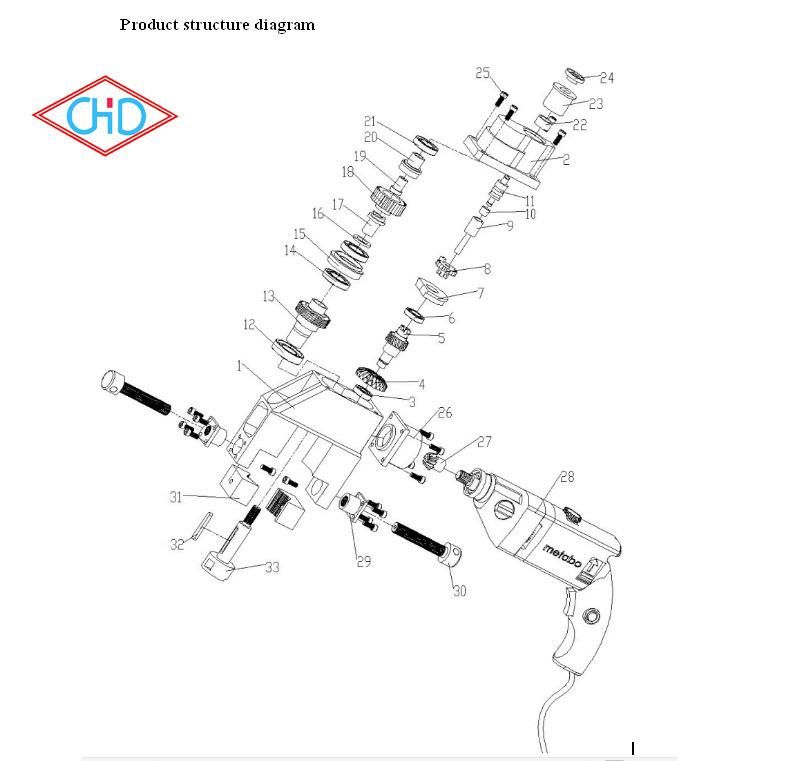

Design Drawing:
Technology specification
Model | Voltage (V) | Power (W) | Tight-Clip Range (MM) | N.W (kg) |
ISC-63 | AC 220V | 1100 | 25-63 | 11 |
ISC-76 | AC 220V | 1100 | 45-76 | 11 |
ISC-89 | AC 220V | 1100 | 57-89 | 12 |
ISC-114 | AC 220V | 1100 | 89-114 | 12 |
Pictures
FAQ:
Q: Are you a manufacturer or trading company?
A: We are manufacturer with the plant area of 24,000 square meter in Shanghai, and we have also production bases in Wenzhou and Chengdu.
Q: What material could the machine cut?
A: all kinds of metal plate, includes carbon steel, stainless steel, aluminium, copper and Zinc etc.
Q: what's the lead time or delivery time?
A: 7 working days
Q: what's Warranty?
A: 12 months
Q: How is your after-sales service?
A: Consumable parts will be supplied in free, shipped to you with your purchased machine.
Q: Is there oversea engineer available?
A: Our engineer could service you 24 hours online by Skype, or on cellphone, and they can go to your country to service you if necessary.

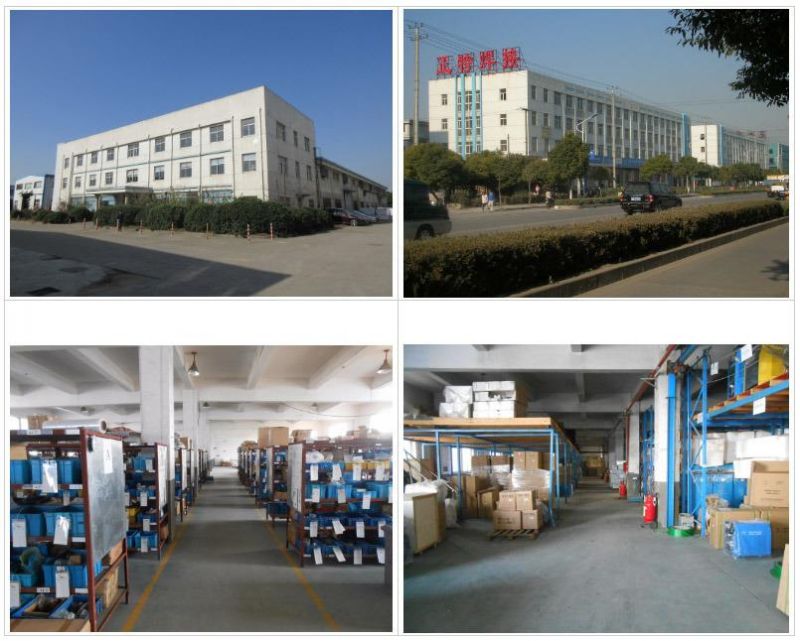

CHD FACTORY

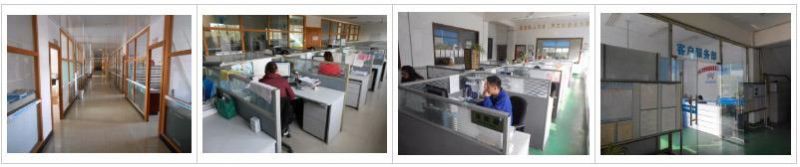

CHD OFFICE
CHD SALES TEAM
CHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production, Sales and Service of cutting machine.
CHD, as one of the largest metal cutting machine manufacturers, headquartered in Shanghai, China. With 3 production bases, totally plant area of more than 53,000 square meters , respectively located in Shanghai, Chengdu and Wenzhou.
CHD focus on quality control, has passed many certification audits including ISO9000, SGS, CE, CCC, etc., was one of the world's largest manufacturer's partners of steel plate cutting equipment. CHD cutting machines have already been exported to more than 100 countries in the past 20 years.
Advantages of CHD
1. Large Production Capacity.16 R& D stuff, 120 Workers, 3 Production Bases,Plant of 53000 Square Meters. 10 Production Lines.
2. Full line of Products. Cutting Machine, Plasma Power, Welding Machine, Beveling Machine, Circular Cooling Water Tanks, Consumables.
3. Honesty. All parameters (cutting thickness & precision) are actual operation parameters without overstate.
4. Good after service, not one-off business.
5. One year guarantee. Free spare parts service on base of order amount. Engineer oversea service.
6. Adjustable Short Lead Time.
7. Quality been assurance. We are OEM supplier of one of world's largest cutting machine company. Most of our products have CE and CCC certificate.

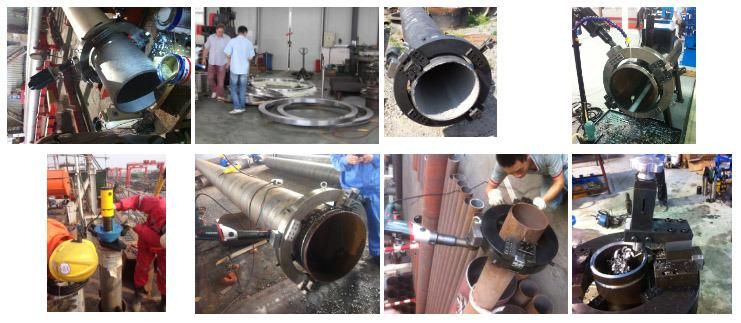

Products on-site:
