• Model NO.：YLSK-825RW
• Origin：Dongguan
• HS Code：8463300000
• Production Capacity：300 Sets,Year

Basic Info.

Model NO. YLSK-825RW Origin Dongguan HS Code 8463300000 Production Capacity 300 Sets/Year

Product Description

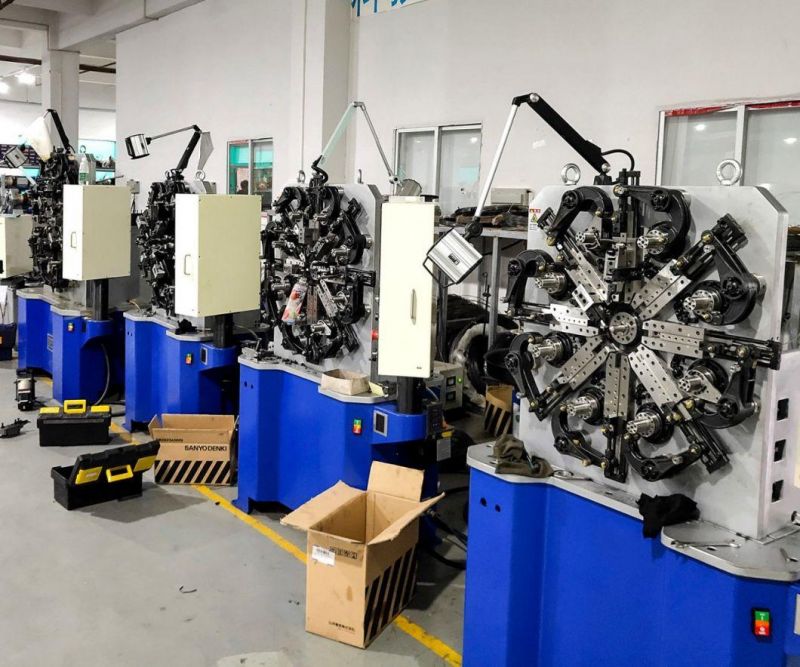

K-825RW UNIVERSAL SPRING FORMING MACHINE

YLSK-825RW Wire rotation CNC spring Forming Machine includes Taiwan computer control system and Japan imported servo motor.
Cam, wire feeding, rotating mandrel, wire rotation, Coiling spinner (optional accessory), five axis synchronous operation.
Wire rotation system is installed in the back of the machine, can be positive and negative rotation, and the computer control wire feed length, the minimum wire feed unit is 0.01mm. Features: Noise proof, cam shaft, high synchronization accuracy.
Rotating core axis can be positive and negative. The coiling device is mounted on slide, and can realize the positive and negative rotation of the multi ring.
This machine can manufacture various types of hard type compression springs, tension spring, torsion spring, conical shaped spring, flat spring and other special shaped spring. Can be used in Manufacturing Industries, Electronics, Toys, Home appliances, Sports equipment, Automotive and other industries required precision spring.



TECHNICAL PARAMETERS

Model	YLSK-825RW
(mm) Machining wire diameter	Ø0.2~Ø2.5
Axis Count	5 Axis
Max feeding Length	Unlimited
Program Storage	2000 Max
Instruction value of wire feed	±0.01~±9999.99mm
Instruction value of cam	±0.10~±359.90
(kw) Servo motor of wire feed	2.7
(kw) Servo motor of cam	2.7
(kw) Servo motor of Z-axis (Quill) servo	0.4
(kw) Servo motor of wire rotation	2.7
(kw) Servo motor of Coiling Spinner (Optional)	0.4
(mm) Machine size	1600X1300X1800
(kg) Weight	1200
Power	380V 3-Phase

FAQ
1. Q: Can you customize the machine for the customer?
  A: Yes,we can.We also provide OEM for customer,if you need customize service,please contact us.

2. Q: What is the Min.Order?
  A:  One set.

3. Q: What is the payment term
  A: The payment term is 30% deposit as PO confirmation ,and 70% after the shipment.We also accept other payment term.

 Q: What is the delivery time?
  A: Normally the delivery time of the machine is 10-20 days after receiving deposit.But it depends on machine model.Some of them could be shipped within 10 days.

5. Q: What is the guarantee period of the machine?
  A: The guarantee period is one year from the date of B/L.
