• Model NO.：Ronen-RJ-003
• Trademark：RONEN
• Origin：Hebei, China
• Production Capacity：100 Sets,Year

Device Parameters

Model	Maximum Line Diameter	Max Outside Diameter	Maximum Height	Main Servo Power	Remarks
RN-35	35mm	300mm	800mm	22kw	Five axes
RN-50	50mm	400mm	1000mm	30kw	Three axes
RN-65	65mm	500mm	1200mm	37kw	Two axes
RN-80	80mm	650mm	800mm	45kw	Two axes
RN-100	100mm	650mm	2000mm	55kw	Two axes

Company Information"RONENFORM" BG(a member of RGL) is dedicated to manufacturing series of Wires/Springs Forming Machines, Tubes Bending Forming Machines, and various auxiliary equipment and spare parts. The company is headquartered in Beijing, and its manufacturing workshop is located in Baoding and Cangzhou. It provides high quality equipment for domestic and foreign pipe and auto parts customers, with rich experiences of serving the industrial field for more than 20 years, "RONENFORM" becomes a reliable professional wire/tube forming equipment supplier and life time partner. "RONENFORM" does not only provide machines, but also the know-how on specific products thanks to backup by a technician team consists of many top professors-being called "Craftsman", we are confident to guarantee all our customers that our manufacturing level /serving level ranks at the top all over China. We follow up the principle of "ZERO FAULT"on each steps of business with you.

RONENFORM will always be here for you!

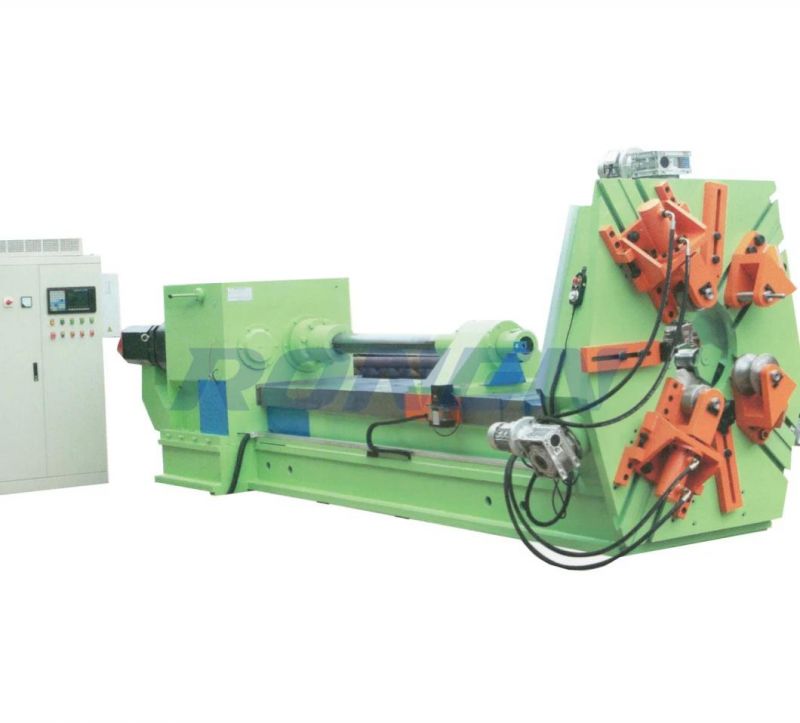

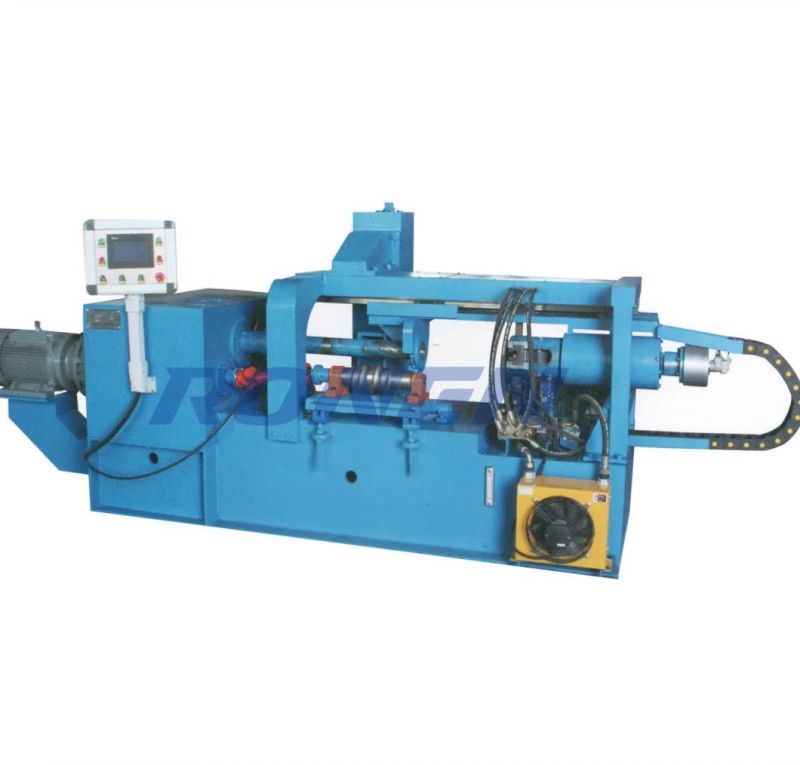

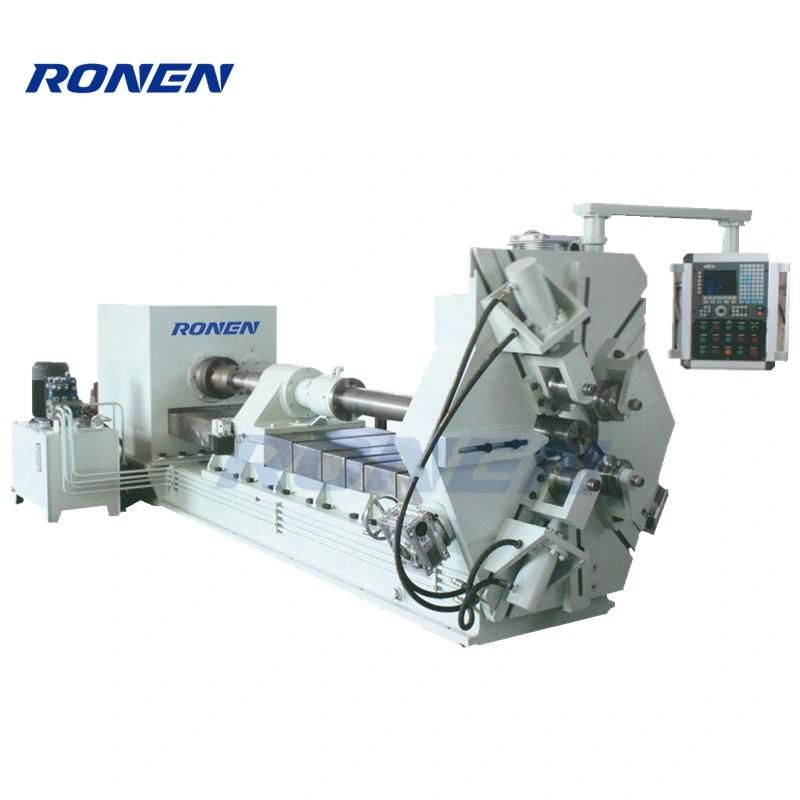

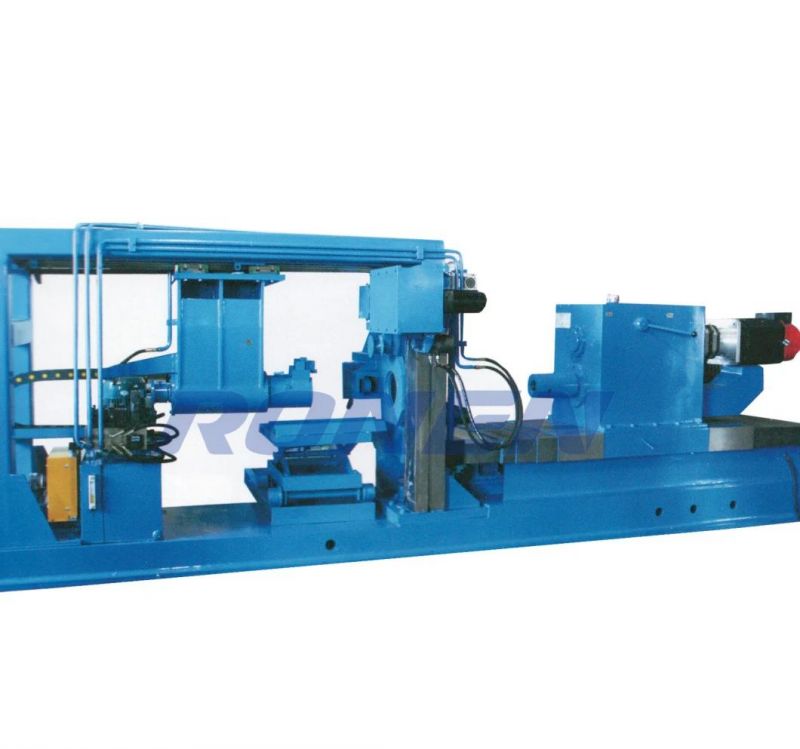

Spring Hot Coiling Making Machine Description

Easy Operate CNC Control System Diameter 80Mm Export Spring Making Machine

CNC Hot Coil Spring Machine Application:

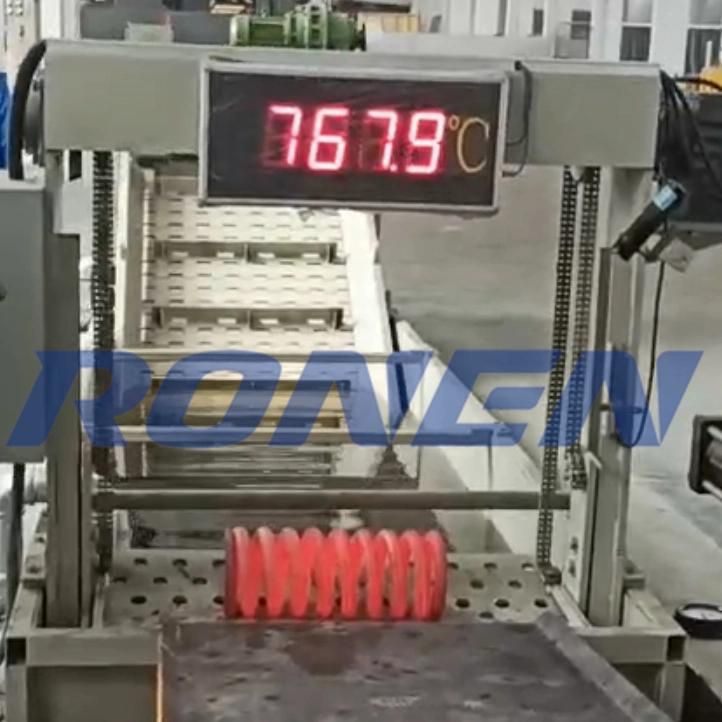

CNC hot coil spring machine is mainly used in railway, engineering machinery and other fields,covering a wide range andhas flexible usage. The CNC hot coil spring machine adopts the CNC control system to automate the rling process, thus reduces laborintensity and improves product quality.

Main Functions
1. Two sets of servo motors respectively control the number of turns and pitch of the spring;
2. G code programming, the control form is more flexible, the program can be stored, the production process can be controlled by programming, and the rolling speed is adjustable;
3. It can flexibly control the helix angle of the end ring and the pitch of the middle part, and control the height of the spring, without manual intervention after the winding is completed;
4. The reducer uses a servo-dedicated planetary reducer, with large torque, high transmission efficiency, no refueling, and lifelong maintenance-free;


5. Automatically pull the mandrel and unwind the spring, and the rolling process is automatic;
6. The beginning and end do not require human intervention, and can be quenched directly;

7. Mandrel with air cooling;


8. The rotating direction of the feeding wheel;

9. The position of the feeding and finishing part can be adjusted by a screw.

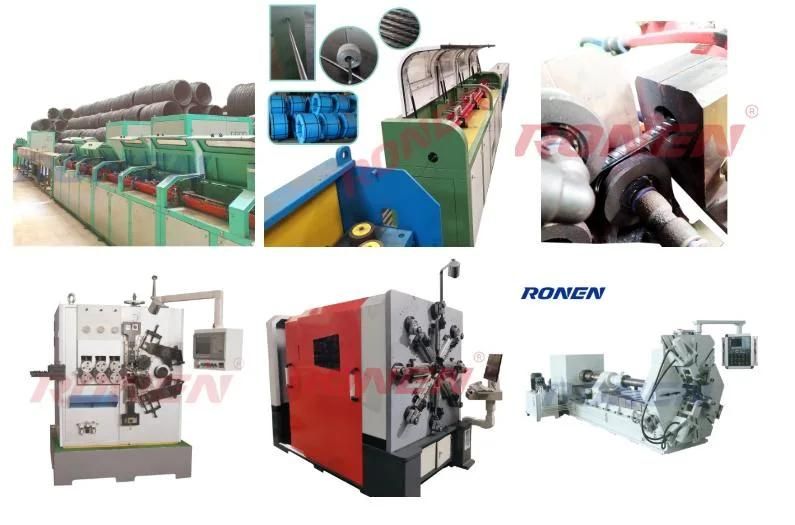

Ronen Group Company Catalog
Ronen Group Domestic & Overseas Customers
Certifications


FAQ
1.Q:Are you manufacturer?
A:Yes, We are manufacturer.
2.Q: What are the payment terms?
A: Pattern of pattern :we can accept L/C ,T/T , Western Union , Money Gram
3. Q: What is the whole business flow cooperation with us ?
A:1.Firstly,send your inquiry to us,make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay
30% deposit.
3.All of the goods, packing details, and B/L copy will be send to buyer after finished production. We will arrange
shipment and provide original B/L after the buyer finished to pay the balance.
4. Q: What if you encounter technical problems?
A:Please contact us as soon as possible and let us know what kind of technical problems you encounter and the
details. We will give you a solution within 24 hours.
5. Q: What advantages we have?
A: Rich experience: We have been in this line for 20 years . we can provide solution according to the problem of the buyer meet in the production process.
