Drywall Screw Making Machine Self Tapping Screw Making Machine MDF Screw Machine Thread Rolling Machine Low Price

Xuchang Huarui Machinery Co., Ltd.
  • Type：Forging Operation
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：Automation
  • Warranty：24 Months
  • Customized：Customized

Base Info

  • Model NO.：Z12series and Z25series screw nail making machine
  • Advantage：Use Widely
  • Condition：New
  • Model Number：Zm4-40d,Zm5-80b,Hr4-40b,Hr6-100b
  • Name：Screw Making Machine
  • Transport Package：Export Seaworthy Package
  • Specification：different model machine, the volume is different
  • Trademark：Huarui screw nail making machine
  • Origin：Xuchang China
  • Production Capacity：200 Set,Sets Per Month

Description

ModelMax. Screw Dia. (mm)Max. Screw length (mm)Capacity
 (pcs/min) Motor
(kw)  Weight
(Ton)  Overall size (m)  ZM3-18A  3  18  160-180  0.75/0.37  0.6  1.3*0.75*0.9  ZM3-18B  3  18  160-180  0.75/0.37  0.6  1.3*0.75*0.9  ZM3-28A  3  28  160-180  0.75/0.37  0.6  1.3*0.75*0.9  ZM3-28B  3  28  160-180  0.75/0.37  0.6  1.3*0.75*0.9  ZM4-28B  4  28  120-160  1.5/0.37  0.97  1.5*0.9*0.9  ZM4-28D  4.5  28  180-200  1.5/0.37  1.2  1.6*1*1.2  ZM4-40B  4  40  120-150  1.5/0.37  0.97  1.6*1*1.2  ZM4-40D  4.5  40  180-200  1.5/0.37  1.2  1.6*1.1*1.1  ZM4-60D  4  60  110-160  1.5/0.37  1.5  2*1*1.2  ZM5-40B  6  40  120-150  2.2/0.37  1.8  1.8*1.1*1.1  ZM5-60B  6  60  110-140  2.2/0.37  1.8  1.8*1.1*1.1  ZM5-80B  6  80  80-100  2.2/0.37  1.9  2*1.1*1.2  ZM5-100B  6  100  60-80  3/0.18  2.1  2.4*1.2*1.2  ZM5-120B  6  120  50-70  3/0.37  2.3  2.8*1.3*1.3  ZM6-60B  8  60  80-110  4/0.37  2.8  2.3*1.3*1.3  ZM6-100B  8  100  60-90  4/0.37  2.7  2.3*1.3*1.3  ZM6-120B  8  120  60-70  4/0.37  3  2.4*1.3*1.4  ZM6-170B  8  170  40-70  4/0.37  3.7  3*1.3*1.5  ZM6-200B  8  200  40-55  4/0.37  3.7  3*1.3*1.5  ZM6-320C  8  320  25-30  7.5/0.37  4.5  5.2*1.8*2.1  ZM8-90B  10  90  70-90  5.5/0.37  4.2  3.4*1.5*1.5  ZM8-90C  10  90  70-90  5.5/0.37  4.2  3.4*1.5*1.5  ZM8-130B  10  130  50-90  5.5/0.37  4.6  3.4*1.5*1.5  ZM8-130C  10  130  50-90  5.5/0.37  4.6  3.4*1.5*1.5  ZM8-150C  10  150  40-50  5.5/0.37  5  3.5*1.7*1.7  ZM8-200B  10  200  25-60  7.5/0.37  6  3.8*1.6*1.7  ZM10-120B  12  120  40-70  11/0.75  7  3.3*1.71.7  ZM10-170C  12  170  40-60  11/0.75  7.5  4.2*1.81.7  ZM10-220C  12  220  35-60  11/0.75  7.5  4.2*1.81.7  ZM10-250C  12  250  30-45  11/0.75  8.5  5*1.8*1.7  ZM10-300C  12  300  25-35  15/0.75  9  5*1.9*2.1  ZM10-360C  12  360  20-30  15/0.75  12  6.7*2*2.6  ZM12-150C  14  150  40-50  15/0.75  10  3.9*1.9*1.8  ZM12-250C  14  250  35-50  15/0.75  11  5.3*2.2*1.9  ZM14-150C  16  150  40-50  11/0.75  10  4.5*2.2*2.15  ZM14-250C  16  250  35-45  15/0.75  11  5*2.2*2.15  ZM16-160C  18  160  45  18.5  15  4.2*2.6*1.8

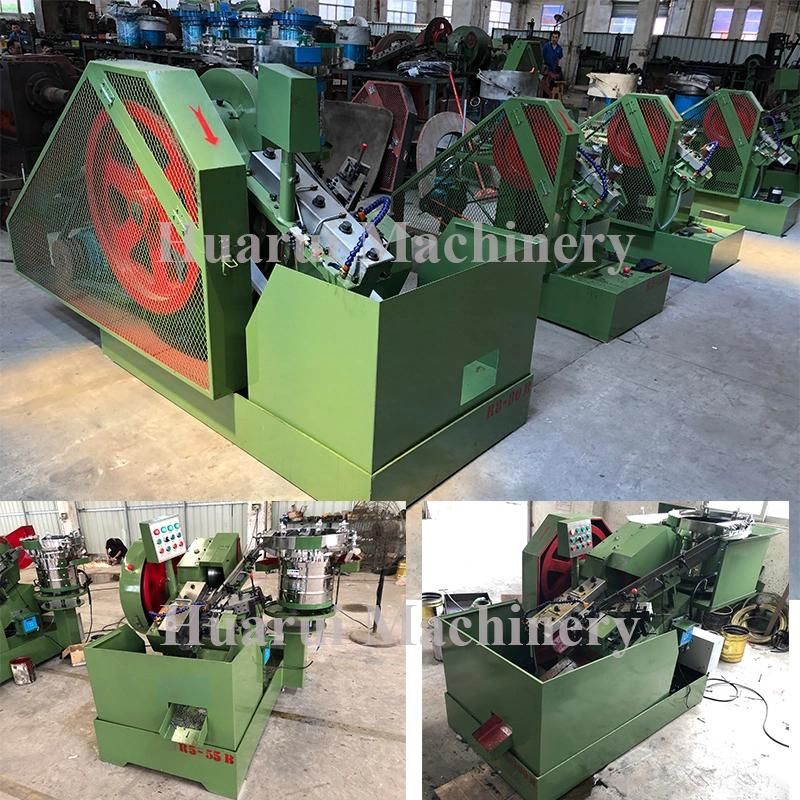

2. Thread rolling machine
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.

Drywall Screw Making Machine Self Tapping Screw Making Machine MDF Screw Machine Thread Rolling Machine Low Price
Technical dataModelMax. Screw Dia (mm)Max. Screw length (mm)Motor (kw) Capacity
(pcs/min)  Weight
 (Ton)  Overall size (m)  HR3-20A  M2.6  20  1.1  350  0.3  1.1*0.53*1.2  HR3-20B  M2.6  20  1.1  350  0.3  1.1*0.53*1.2  HR4-25A  M4  25  1.5  320  0.45  1.3*0.63*1.32  HR4-25B  M4  25  1.5  320  0.45  1.3*0.63*1.32  HR4-40A  M4  40  2.2/0.37  280  0.97  1.5*1.15*1.35  HR4-40B  M4  40  2.2/0.37  280  0.97  1.5*1.15*1.35  HR5-55A  M5  55  3+0.37  170  1.2  1.6*1.35*1.7  HR5-55B  M5  55  3+0.37  170  1.2  1.6*1.35*1.7  HR5-65A  M5  65  3+0.37  130  1.3  1.75*1.4*1.65  HR5-65B  M5  65  3+0.37  130  1.3  1.75*1.4*1.65  HR6-60A  M6  60  4/0.37  180  1.5  1.7*1.65*1.3  HR6-60B  M6  60  4/0.37  180  1.5  1.7*1.65*1.3  HR6-100B  M6  100  5.5+0.37  110  1.9  2.7*1.3*1.3  HR8-80B  M8  80  5.5/0.37  110  1.8  2.1*1.55*1.3  HR8-100B  M8  100  7.5+0.37  100  2.1  2.7*1.7*1.3  HR8-120B  M8  120  5.5  100  2.1  2.4*1.8*1.4  HR10-120B  M10  120  7.5  80  1.8  2.35*1.95*1.4  HR12-120B  M12  120  11  60  3  2.45*2*1.45  HR12-160B  M12  160  13  60  3  2.45*2*1.45  HR12-220B  M12  220  15  50  3.5  2.5*2*1.45  HR16-120B  M16  120  15  50  3.8  2.5*2.1*1.45  HR16-160B  M16  160  15  50  4  2.5*2.1*1.45  HR16-220B  M16  220  15  45  4.8  3.7*1.9*1.7

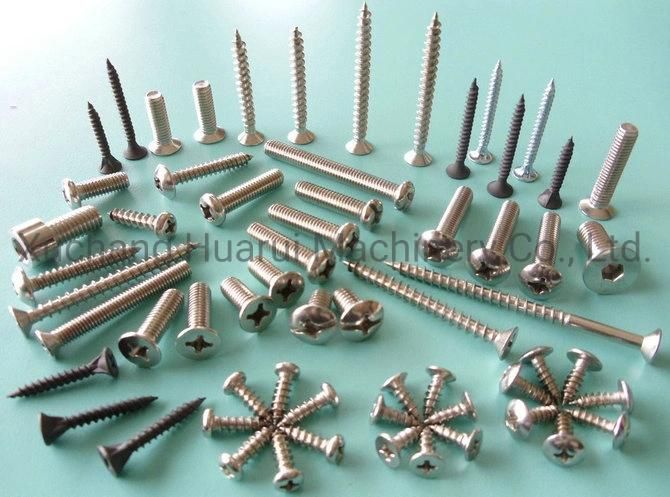

Finished screws
Drywall Screw Making Machine Self Tapping Screw Making Machine MDF Screw Machine Thread Rolling Machine Low PriceDrywall Screw Making Machine Self Tapping Screw Making Machine MDF Screw Machine Thread Rolling Machine Low Price
Drywall Screw Making Machine Self Tapping Screw Making Machine MDF Screw Machine Thread Rolling Machine Low PriceDrywall Screw Making Machine Self Tapping Screw Making Machine MDF Screw Machine Thread Rolling Machine Low Price

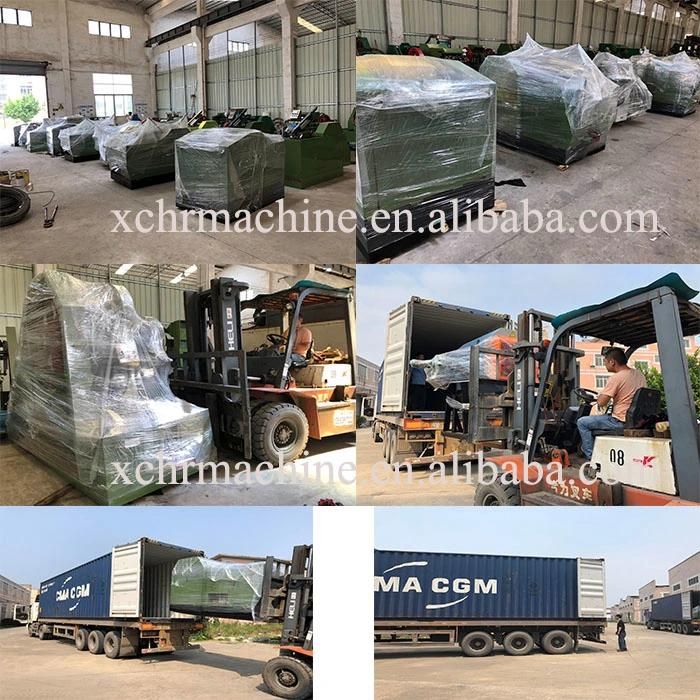

Some loading photos
Drywall Screw Making Machine Self Tapping Screw Making Machine MDF Screw Machine Thread Rolling Machine Low Price
Photos taken with customers
Drywall Screw Making Machine Self Tapping Screw Making Machine MDF Screw Machine Thread Rolling Machine Low Price
After sale service
1-We will send you manual, detailed operation videos which will teach you how to operate the machines step by step.
2-Our engineer is available to your country to help install the machines and train your workers .
3-We provide online support all the time.

If you are interested in our products, feel free to contact us
