• Model NO.：HT-6
• Color：According Your Request
• Transport Package：Plastic Packaging
• Specification：wire diameter 1.2-4.0mm
• Trademark：Hengtai
• Origin：Anping County, Hebei Province, China
• HS Code：8463000000
• Production Capacity：20sets , Month

Basic Info.

Model NO. HT-6 Color According Your Request Transport Package Plastic Packaging Specification wire diameter 1.2-4.0mm Trademark Hengtai Origin Anping County, Hebei Province, China HS Code 8463000000 Production Capacity 20sets / Month

Product Description

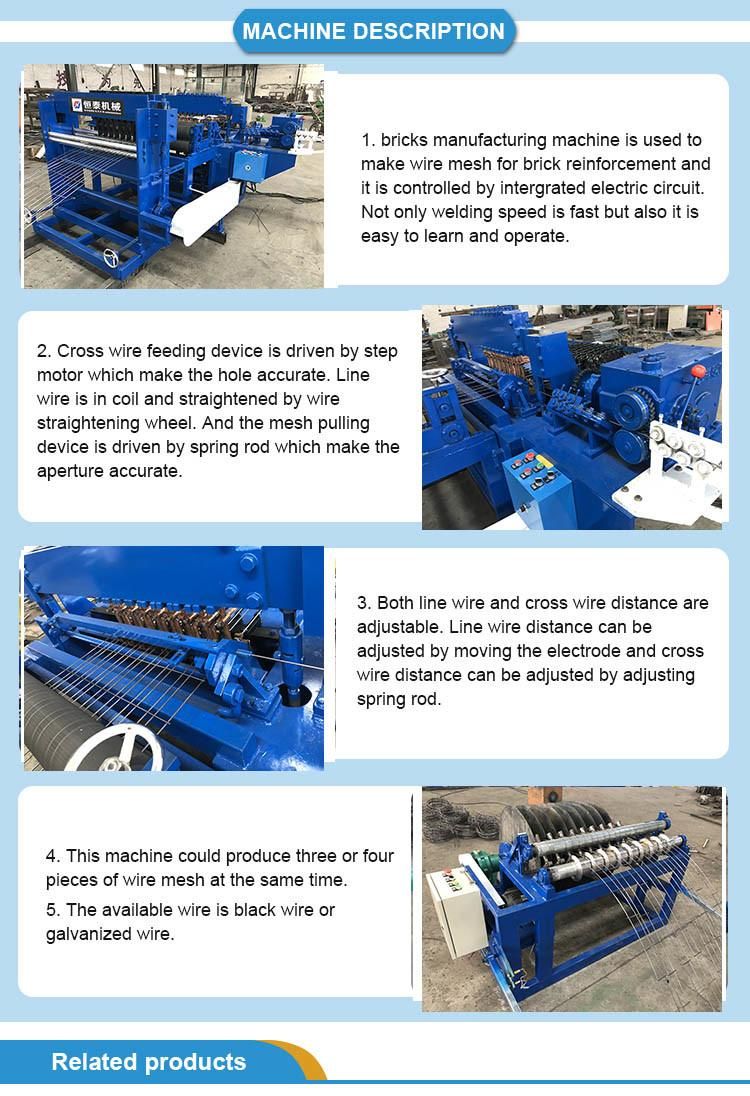

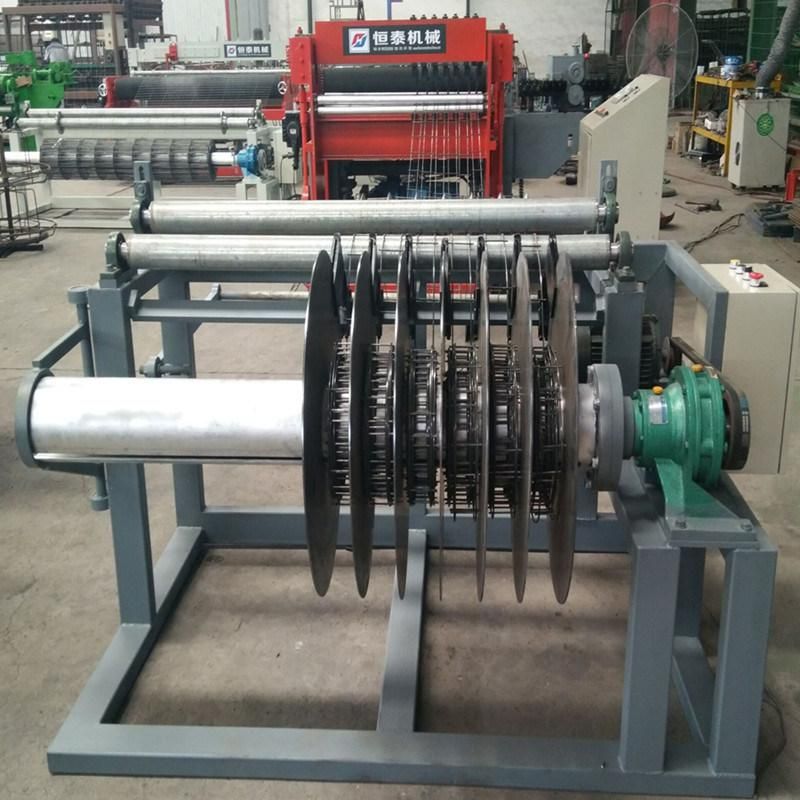

Machine Description:

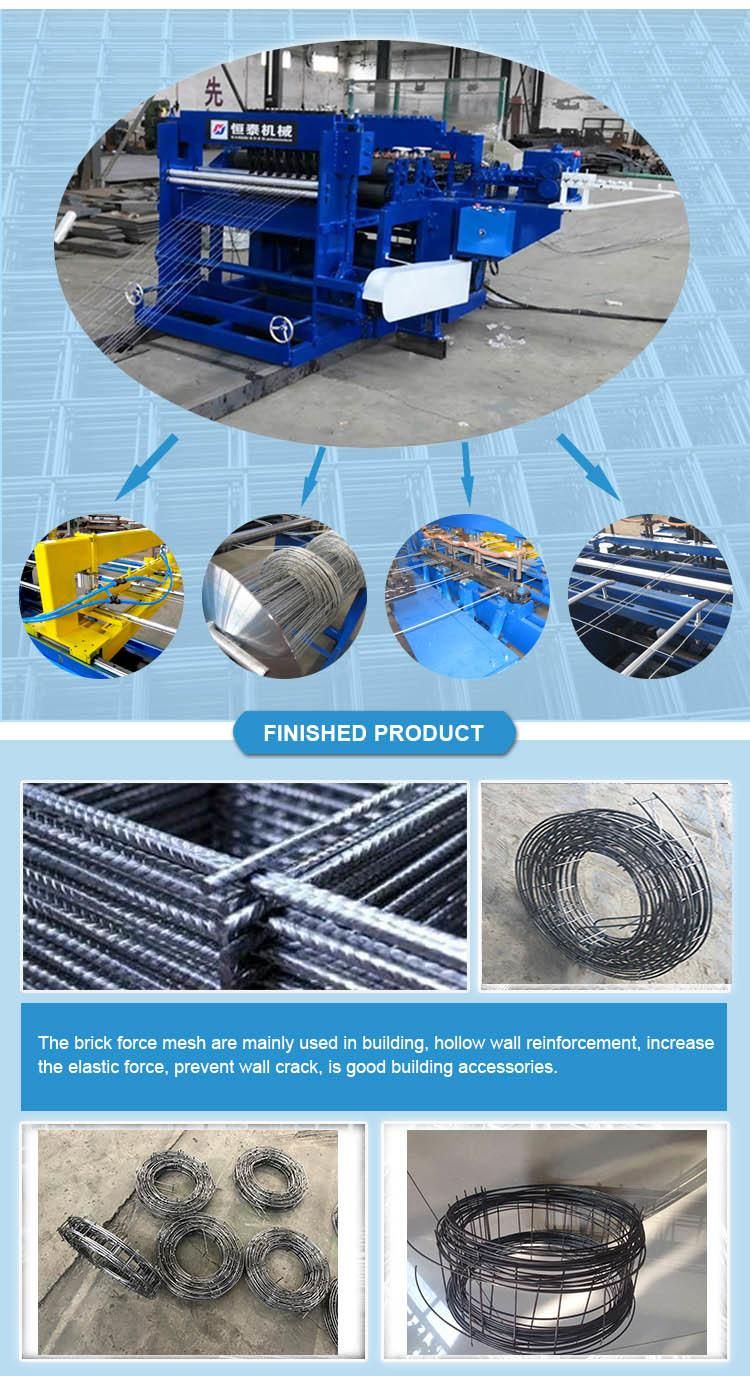

1. Brick force mesh welding machine which will allow you to produce brick force meshes of different size.Line wire and cross wire distance is adjustable.

2. The machine is controlled by integrated electric circuit,not only welding speed is fast and easy to learn and operate for you.

3. Cross wire feeding device is driven by step motor which make the mesh size accurate.

4. Line wire is automatic in coil and straightened by wire straightening wheel.

5. Mesh pulling device is driven by spring rod which make the aperture accurate.

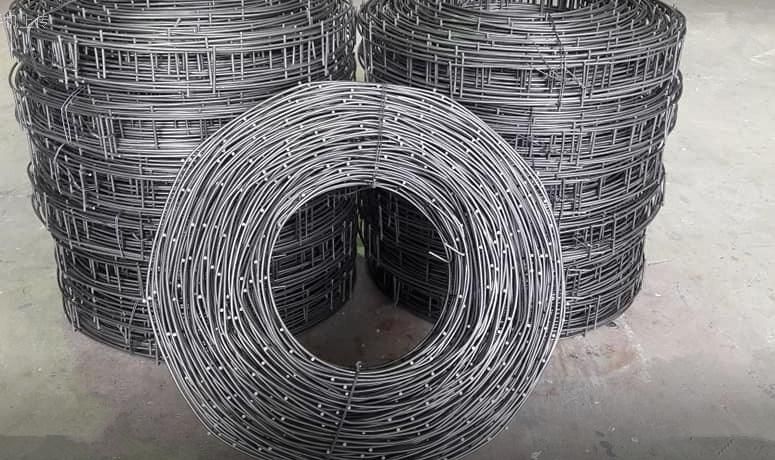

6. You will get 6 or 8 rolls of brick force mesh at the same time.

7. The available wire is black wire or galvanized wire.



Technical Parameters:

Model	HT-1000
Wire Diameter	3.2-4.0mm
Line Wire Space	50mm(as your demand)
Cross Wire Space	100-500mm
Line Wire Feeding	Automatically from coil
Cross Wire Feeding	Automatically from coil
Welding Speed	50-70times/ min
Voltage	220V/380/415V (as your demand)
Transformer	100KVA
Motor	4KW
Mesh Form	6 or 8 rolls at the same time



3 rolls 6 rolls and 9 rolls,all we can manufacture .You can choose which is you want .
