• Condition：New
• Name：Manual Powder Coating Line
• Voltage：220V,380V 3phase
• Frequency：50-60Hz
• Application：Powder Coating
• Coating Material：Plastic Powders
• Booth Operation：Manual
• Booth Material：Coated Metal
• Booth Type：Conveyor Powder Coating Booth
• Oven：Electric Powder Coating Oven
• Item：Powder Coating Line
• Transport Package：Wooden Carton
• Specification：per need
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：50sets,Month

Basic Info.

Condition New Name Manual Powder Coating Line Voltage 220V/380V 3phase Frequency 50-60Hz Application Powder Coating Coating Material Plastic Powders Booth Operation Manual Booth Material Coated Metal Booth Type Conveyor Powder Coating Booth Oven Electric Powder Coating Oven Item Powder Coating Line Transport Package Wooden Carton Specification per need Trademark COLO Origin China HS Code 8424899990 Production Capacity 50sets/Month

Product Description

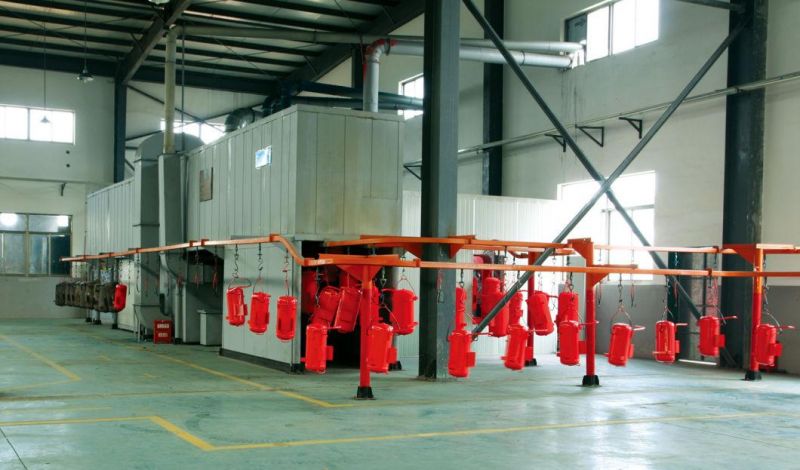

Manual Powder Coating Plant

Manual powder coating plants allow workers to manually preparation, coat, dry, and cure items in batches. They work well for some powder coating project, features economical and practical. This powder coating painting line with design of three conveyorised horizontal lines could speed up the overall output time. Includes powder coating gun, powder spray booth, and powder curing oven with 3 conveyors.

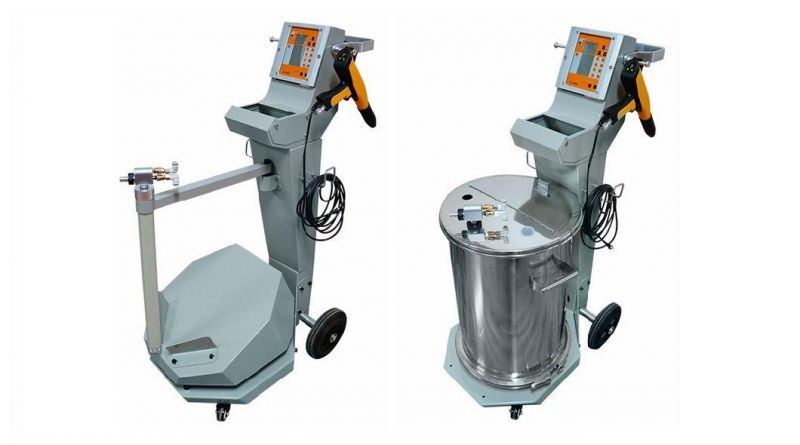

COLO-191S Powder Coating Machine

We supply box feed type and hopper type powder coating machine:

Box feed powder coating machine is ideal for quick and easy color changesyour perfect choice, it could convey powder directly from the original powder box.
Hopper type powder coating machine suits for contimuous powder coating production, the well-sealed fluidizing hopper prevents powder from accumulation and dampness.


Featutes of COLO-191S Powder Coating Machine

1. COLO-191S controller with digital valve control technology could adjust parameters precisely for uniform coating.

2. There are 3 pre-set application modes, also could store 20 personalized application programs.

3. The leightweight COLO-08 spray gun is made of anti-static material, features wear-resistant, safe and long-life.

4. Spray gun with built-in 100kv cascade maximizes transfer efficiency, supports for powderful and long lasting work.

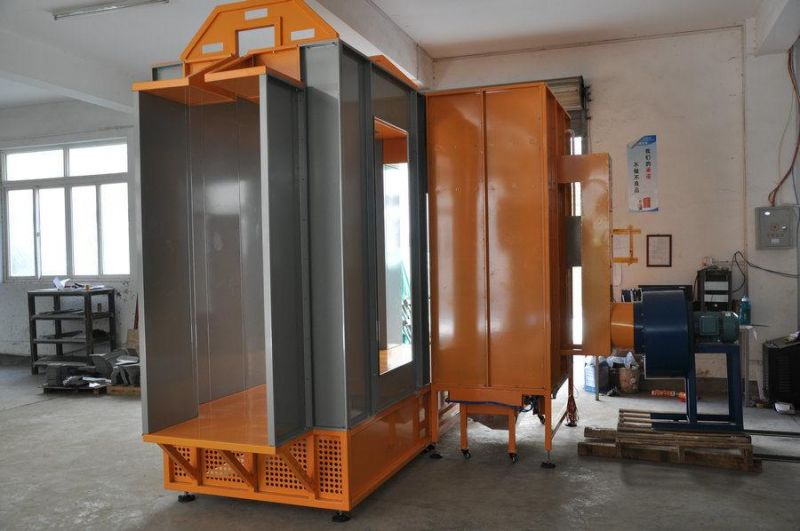

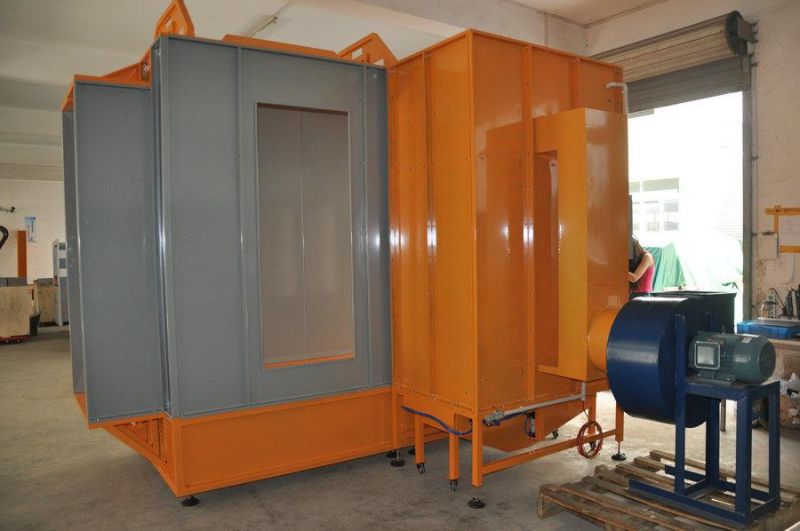

COLO-3212 Tunnel Powder Coating Booth

1. Top track of powder coating booth could be connected to the powder coating line conveyor to achieve continuous production.

2. This booth is designed with dual working station that operators could coat both sides.

3. Powerful fan supply efficienct wind, reduces air consumption with low noise level.

4. PLC control the fan working and precisely set the interval of filter cleaning.

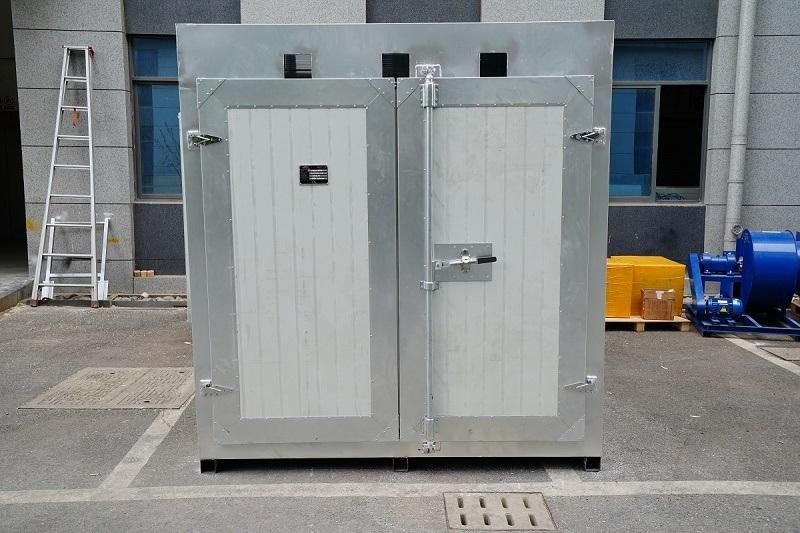

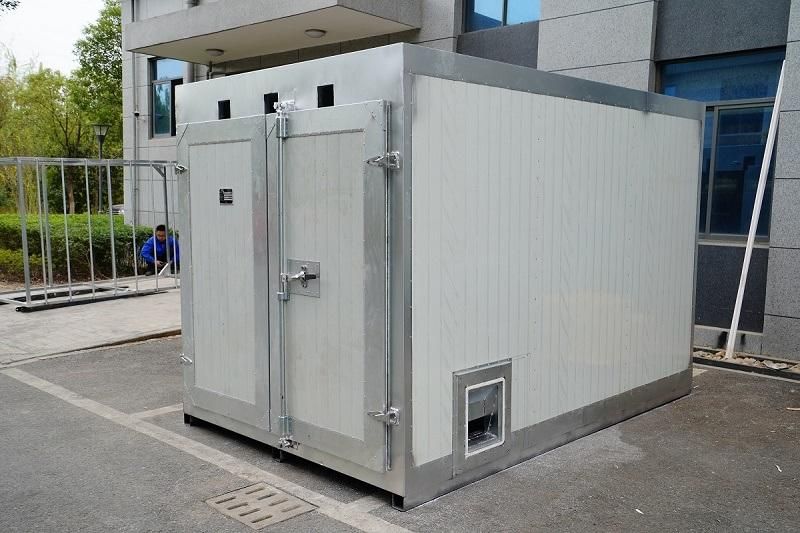

COLO-3210 Powder Coating Curing Oven

1. Built with three top tracks to connect to powder coating line convetor.

2. Riello burners that imported from Italy makes heating faster to a required temperature.

3. Oven body is 100mm rockwool insulation board interlayer with galvanized innerwall and color steel outwall, to get a better heat preservation effect.

4. Powerful Circulation Fan circles hot air in the chamber to ensure even temperature distribution.

5. PLC Controller provides high-precison heating process, easy to set accurate temperature, heating time and control fan working.




This powder coating plant can be customized base on customers' detailed need.




FAQ

1.When did your company commence its business?

As a factory of powder coating machines, F&F is the brother company of HICOLO ,dated  to 2005, on that year we are produce the spare parts for powder coating systems mainly,we expand our business range ,takes decades time.

2.Where is your Company located?

HANGZHOU CITY, Zhejiang province. China
IF YOU WANT TO VISIT US, YOU COULD TAKE PLANE TO Shanghai AIRPORT OR Hanghzou AIRPORT.

3.How can I pay you from abroad?

YOU COULD TRANSFER THE PAYMENT VIA T/T OR PAYPAL, WESTERN UNION WE COULD PROVIDE YOU THE BANK DETAILS.

4.How do you ship the goods?

Generally, the bigh machine with more quantity we ship the goods by sea.
For some spare parts or only one machine, we suggest client to choose express like TNT, DHL, UPS, FEDEX, which is more faster.
If you have special requirements or need DOOR TO DOOR service, then please tell us in advance, we can calculate the shipping cost to you.

5.How do you provide after sales support?

We provide very active support by emails, telephone, online tools.
If necessary, we also could send technicals over there to help customer solve the problems.

6.How is the booth shipped and how long will it take to get once I order it?

There so many models we have in stock then we can delivery it as soon as we got your payment.
Others no in stock then we need some days to produce, machines need 3 days. and spray booth or curing oven we need 2 weeks.
if send by EXPRESS, it will take 5 days more or less you can get it. if send by sea, then depends on the country where you are.
Anyway, we will be your feet and finsh the production soon to support you.
