• Model NO.：as the drawing
• Material：Alloy
• Application：Metal Processing Machinery Parts
• Application Range：Heating Treatment,
• Transport Package：Seaworthy Package
• Specification：as the requirement
• Trademark：FANGLE
• Origin：China
• Production Capacity：50000 Tons,Year

Basic Info.

Model NO. as the drawing Material Alloy Application Metal Processing Machinery Parts Application Range Heating Treatment, Transport Package Seaworthy Package Specification as the requirement Trademark FANGLE Origin China Production Capacity 50000 Tons/Year

Product Description

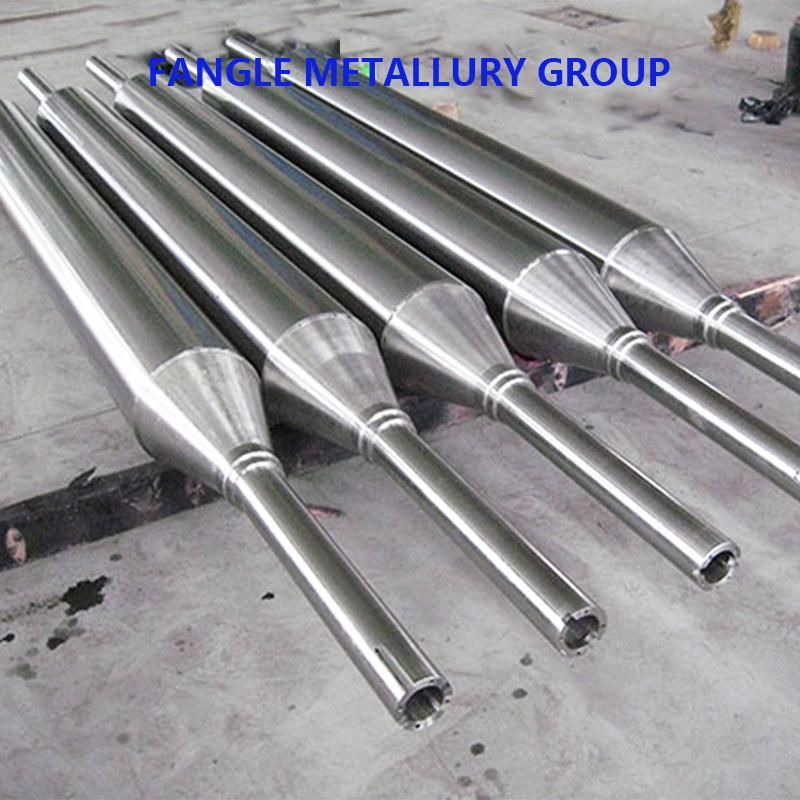

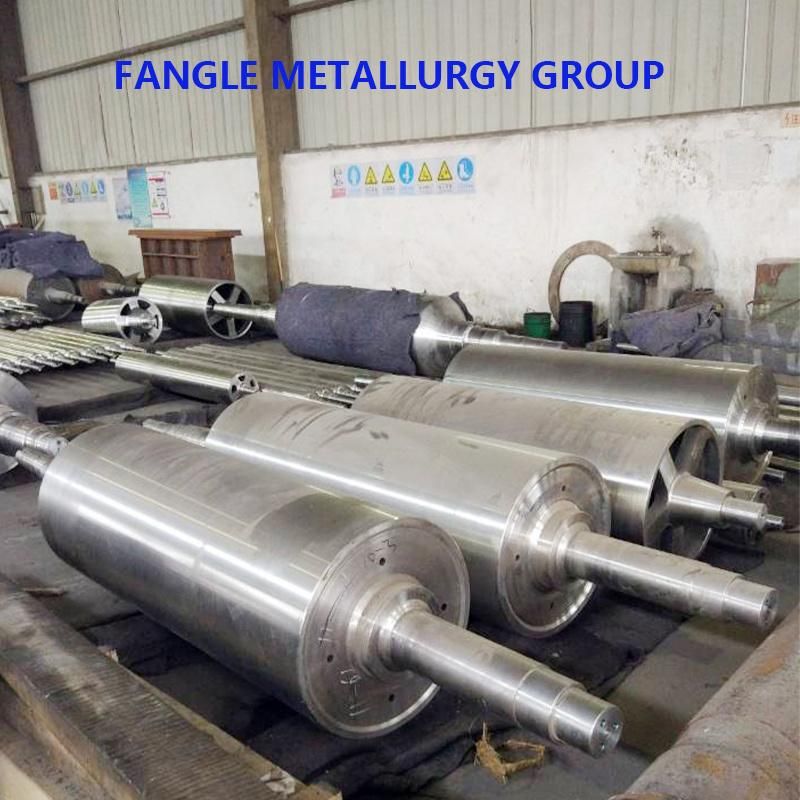

Furnace Roller  With Good High Temperature Resistance for Continuous Annealing Production Line

Description
The hearth roll,also called furnace roll is the key equipment for continuous annealing furnace. The working condition is very tough for furnace roller. So the high temperature resistance must be good with furnace roller. The continuous heat treatment furnace with bottom rollers is often used for annealing, normalizing, quenching and tempering of steel plate, steel tube, section steel and wire.

Furnace bottom rolls made from small diameter of 60 mm - 2000 mm Φ  various national standard material of heat-resisting alloy steel hollow bottom roller.The temperature of furnace varies from 850ºC to 1200ºC, and the material used is also different.Suitable for annealing treatment of general carbon pipe, oil well pipe, stainless steel pipe and steel strip.In particular, it is suitable for continuous annealing treatment line with higher reliability.

Parameter

Materials	wear resistant, heat resistant,corrosion resistant alloy steel, such as ZG35Cr24Ni7SiNRe, ZG40Cr25Ni20Si2, 1Cr18Ni9, ZGCr25Ni35Nb, ZGCr28Ni48W5 HK40, HT, HU, HH, 22H, 304,  Super 22H, HP-Nb, More1, More2, 1.4848, 1.4855, 1.4852, 2.4879, 1.4460, 1.4462, S32205, S32750, etc.
Process	Lost wax casting: Mould making- Shell making- Pouring-Sand (glass ball) blasting- CNC machining- Inspection- Assembly.
specification	As per cusomers' requirements
Property	Excellent Corrosion Resisitance, High Temperature Resistance, Wear resistance, Good surface, Hight tolerance, Fast delivery, etc.
Test	Each piece has to go through our strict inspection, VT, PT, UT, LT, RT, MT, or according to customers' requirements
Application	Refinery, Petrochemical and Fertilizer:  Ammonia production,Convection furnaces,Direct Reduction of Iron (DRI),Ethylene pyrolysis,Hydrogen production,Methanol production,Steam reformers, Annealing furnace, heating furnace, cracking furnace
Working temperature	depending on the materials (max 1350°C)

Manufacturing process of furnace roll:
1. Centrifugal casting of roll body.
2, the shaft head adopts lower than the roll profile processing.
3. The shaft head is combined with the roll body by heat fitting, and welded with welding material of the same material of the roll body.

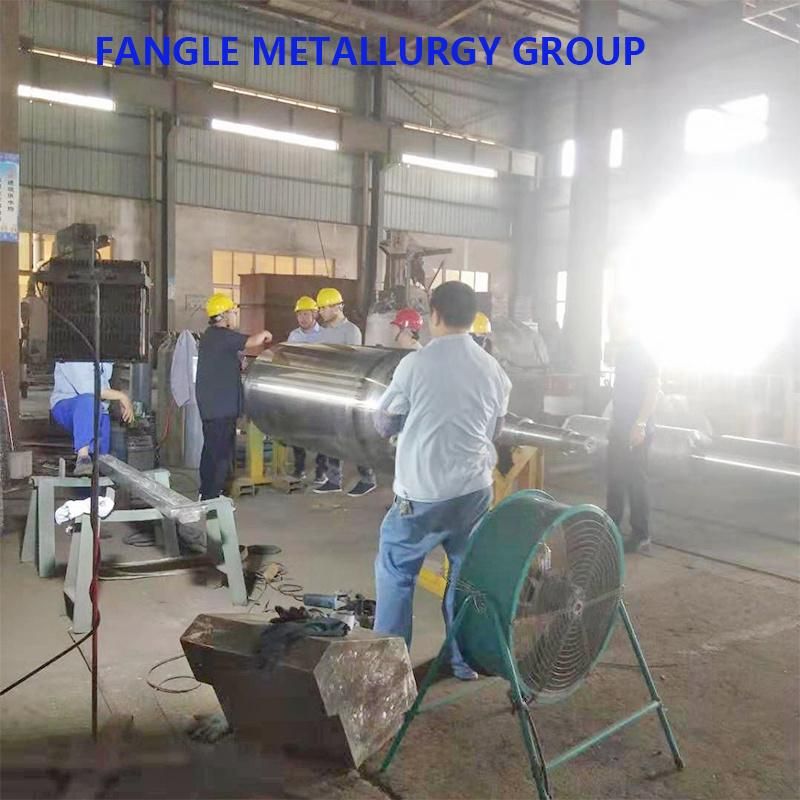

Customer Visit
