Cicel Car Lights Thermal Metalizing Plant
Wenzhou Cicel Vacuum Machine Co., Ltd.- Type：Coating Production Line
- Coating：Vacuum Coating
- Substrate：Steel
- Certification：CE, ISO
- Condition：New
- Transport Package：Plastic Film Package and Wooden Case Package
Base Info
- Model NO.：CCZK-EL
- Specification：CCZK-EL
- Trademark：CICEL
- Origin：Wenzhou China
- HS Code：8479899990
- Production Capacity：200 Set,Sets Per Year
Description
Configuration
Model
CCZK-1000EL
CCZK-1200EL
CCZK-1400EL
CCZK-1800EL
CCZK-2200EL
Customized
Size is available
Chamber size(MM)
D1000*H1200
D1200*H1500
D1400*H1800
D1800*H2000
D2200*H2400
Customized
Vacuum system
Diffusion pump/Molecular pump + Roots pump + Rotary pump + Holding pump + Cryogenic pump(optional)
Customized
Evaporation power
10KW
15KW
20KW
30KW
40KW
Customized
Evaporation source
20sets
26sets
36sets
52sets
68sets
Customized
Ion glow cleaning system
5KW
5KW
10KW
15KW
20KW
Customized
Control system
PLC+HMI Full automatic + Remote control system ( optional)
Customized
Ultimate vacuum
5.0*10-4pa
5.0*10-4pa
5.0*10-4pa
5.0*10-4pa
5.0*10-4pa
Customized
Total power
30.6KW
37.5KW
58.5KW
96KW
125KW
Customized
Coating Cycle time
6 to 10mins one cycle ( Depending on the coating film layer of different coating products)
Customized
Delivery container size
1set 20GP
1set 20GP
1set 40GP
1set 40HQ
1set 40HQ
Customized
Machine installing time
5days
(1engineer)
5days
(1engineer)
7days
(1engineer)
7days
(2engineers)
7days
(2engineers)
Customized

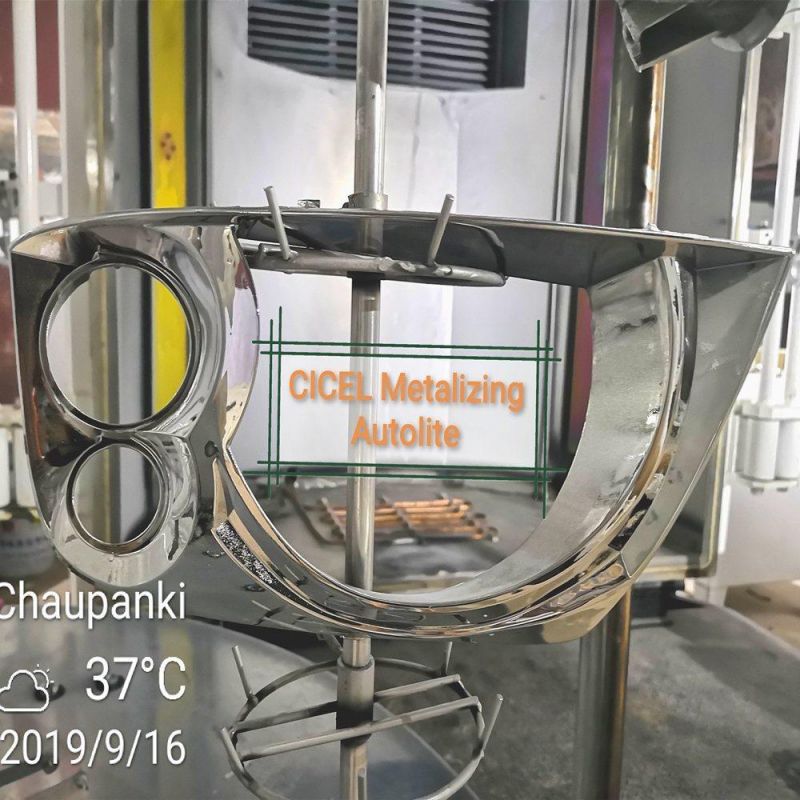

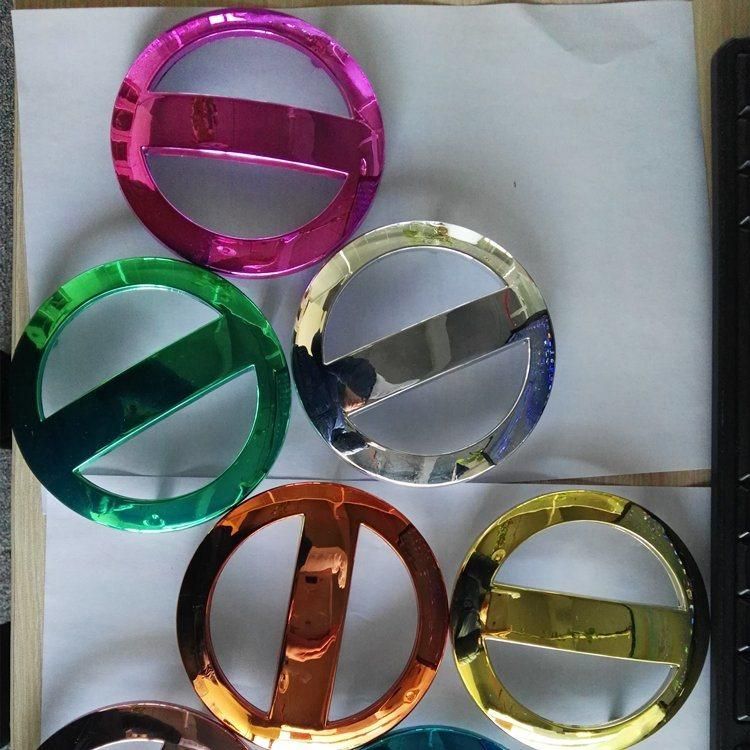

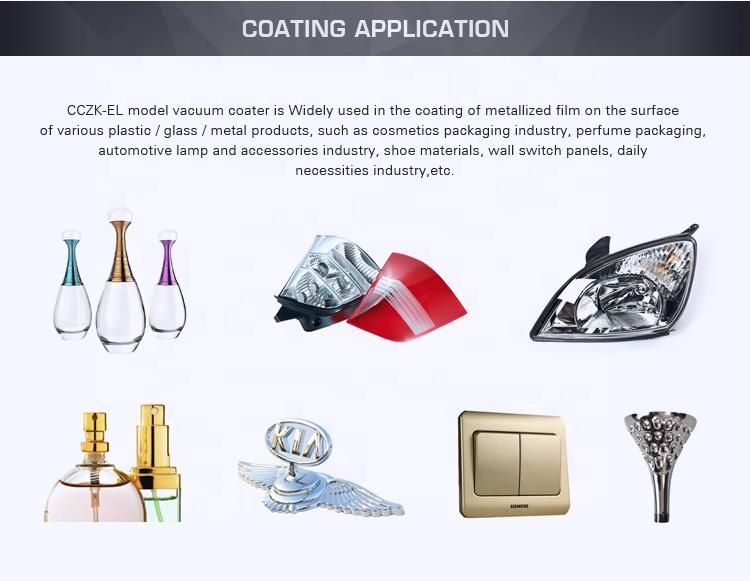

Application:
Company information:
