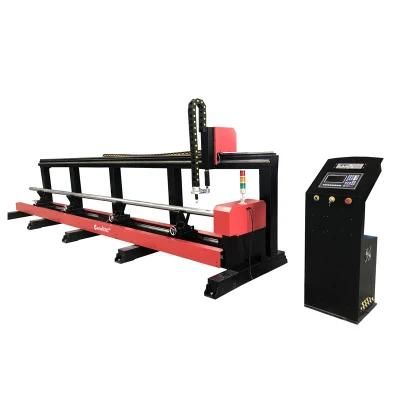

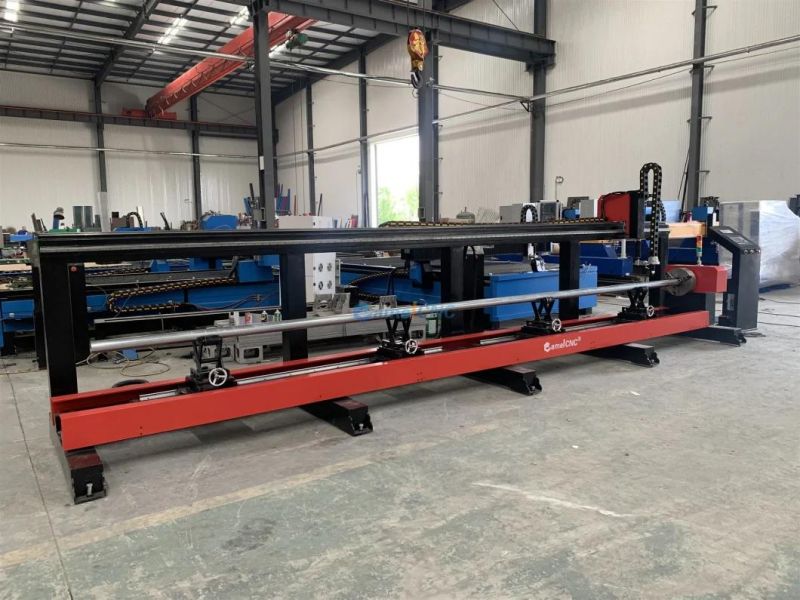

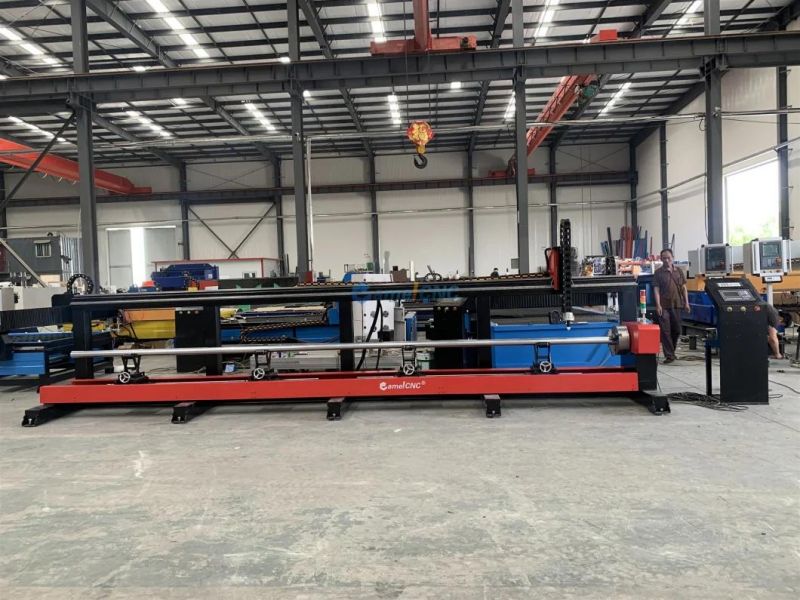

Economic Price Plasma Pipe Cutting Machine Ca-6000 8000 Circle Tube Plasma Cutting Machine
Jinan Camel CNC Machinery Co., Ltd.- Warranty：2 Years
- Working Length：3000mm(Can Make 6000mm)
Base Info
- Model NO.：CA-6000
- Pipe Max Profile：330*330mm
- Processing Material：Square, Circular,Rectangular Pipe
- Cutting Method：Plasma
- Max Travel Speed：0-50000mm,Min
- Cutting Speed：0-10000 mm,Min
- Running Accuracy：≤0.1mm
- Cutting Thickness：According to The Power Supply( 0-200mm)
- Cutting Gas：Air
- Gas Pressure：0.4-0.8MPa for Normal Plasma Power
- Drive System：Dual Drive
- Arc Type：Untouched Type
- X, Y Axis：High Quality Rack & Pinion and Taiwan Linear Rail
- Power Supply：Lgk or Hypertherm(Any Other Brand Also Is Ok)
- Voltage：Machine: Single Phase 220V 50Hz,60Hz
- Transport Package：Plywood Case
- Specification：3800*2280*1860mm
- Trademark：Camel CNC
- Origin：Shandong
- Production Capacity：10000set,Month
- Package size per unit product：650.00cm * 150.00cm * 110.00cm
- Gross weight per unit product：1000.000kg
Description
Laser Cutting Machine Display

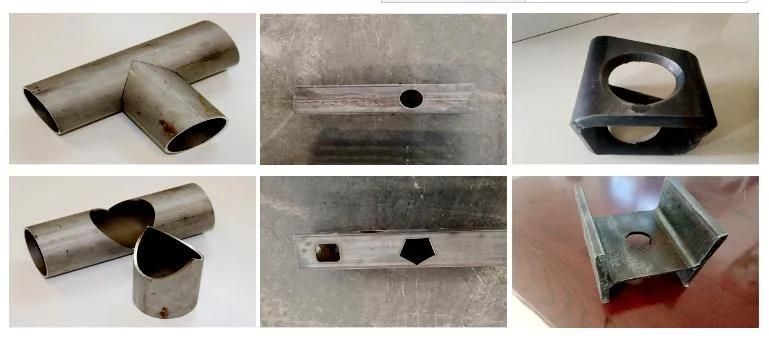

Sample Display
