Powder Curing Oven Horno De Curado
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service:Yes
- Warranty:12 Moths
- Type:Electric Powder Coating Oven
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO
Base Info
- Model NO.:FF-2447
- Condition:New
- Model No.:FF-3127
- Temperature:180-250 Degree
- Outer Case:Baking Paint for Metal
- Controlling Mode:Mechanical Timer Control
- Usar:Pintura Electrostatica
- Voltaje:220V,380V
- Power Supply:Electric
- Size:W1.2*H1.7*L3.2m
- Warm Board:Thinkness:100-150mm
- Usage:Bake
- Transport Package:Bulk
- Specification:1200width x 1700 height x3200 depth
- Trademark:F&F
- Origin:Zhejiang Hangzhou
- HS Code:8417809090
- Production Capacity:50sets,Months
Description
Basic Info.
Model NO. FF-2447 Condition New Model No. FF-3127 Temperature 180-250 Degree Outer Case Baking Paint for Metal Controlling Mode Mechanical Timer Control Usar Pintura Electrostatica Voltaje 220V/380V Power Supply Electric Size W1.2*H1.7*L3.2m Warm Board Thinkness:100-150mm Usage Bake Transport Package Bulk Specification 1200width x 1700 height x3200 depth Trademark F&F Origin Zhejiang Hangzhou HS Code 8417809090 Production Capacity 50sets/MonthsProduct Description
Electric Powder coating oven Horno de curado/Horno de secadoModel: COLO-2447
Working size(mm): width 1200 x height 1700 x depth 3200
Heating by electricity
Features
1 With front and back doors, top conveyor system, easy to loading objects.
2 Heat spreads equally in the oven thanks to the circulation fan motor
3 Control Panel to set heating temperature and heating time.
4, Easy operation ,heating time : 25 minutes
Technical Data:
Model | Colo-3127 |
Worksize dimensions | 1200width x 1700 height x 3200 depth |
Overall dimensions | 1400 width x 2200 height x 3400 depth |
Power supply | Electric/ kw |
Voltage/Frequency | 380V/220v(50-60hz) |
Warm-up time | 15-30 min. (180° C) |
Temperature stability | < ± 1-3°C |
Temperature max. | 250° C |
Ventilation performance | m3/h |
Motor power | 2.2kw |
Warranty | 12 months |

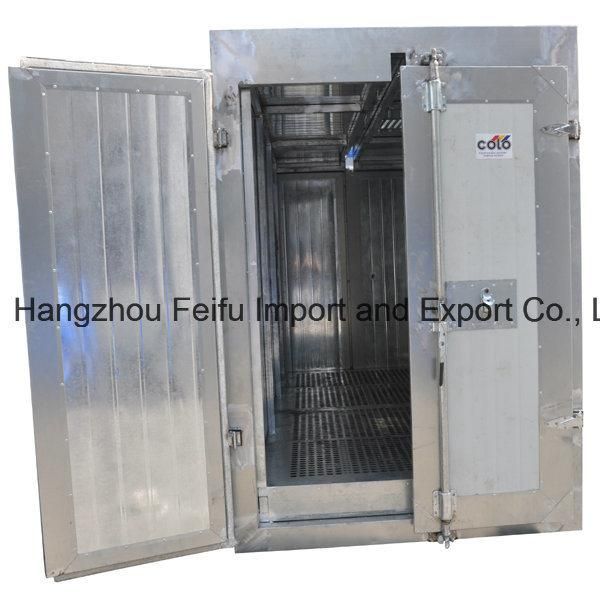

More pictures of Electric Manual Powder Painting Oven with Top Conveyor

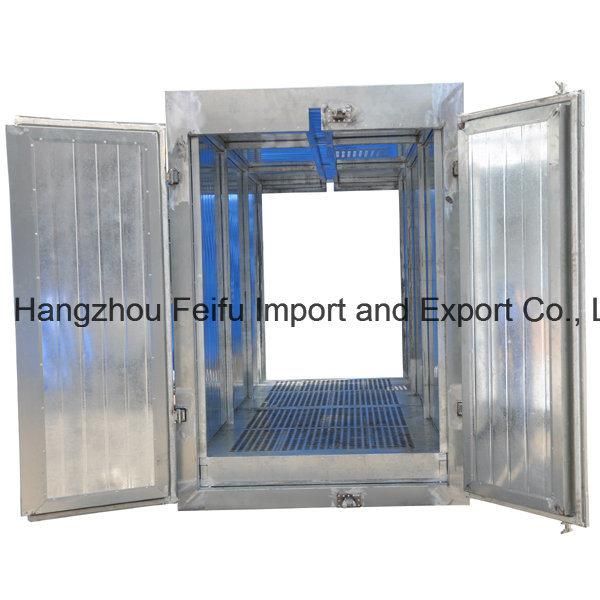

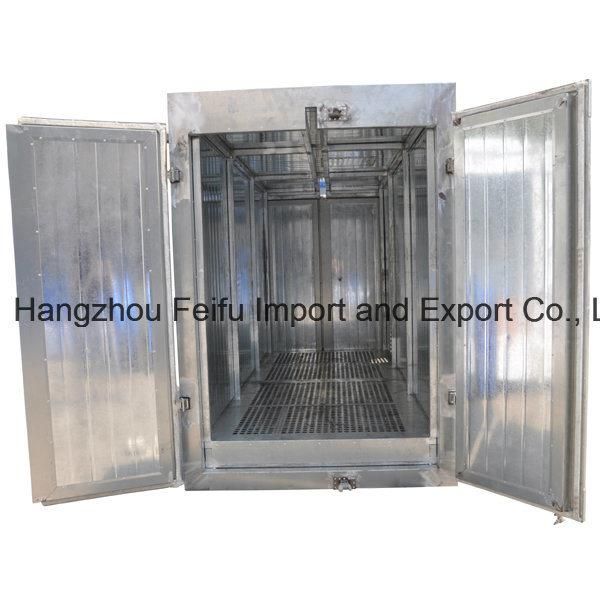

Inner View :with high quality rock wool board thickness=100mm, and top track rail to load the objects

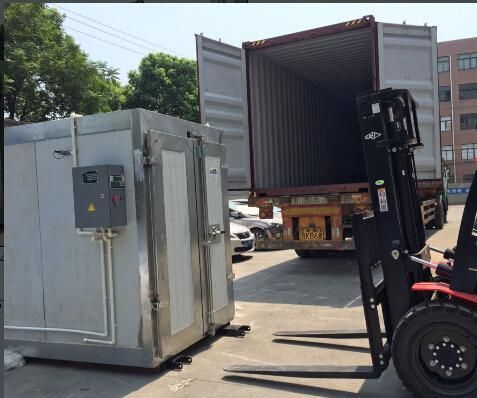

Delivery of Electric Manual Powder Painting Oven with Top Conveyor
20 working days after payment

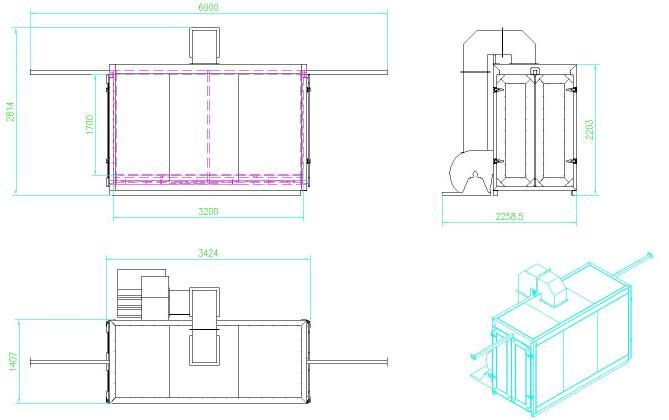

The Drawing for COLO-2447
Why choose us:
1. More than 10 years manufacturing experience in whole powder coating and powder painting line in China.
2. Very good Client service and within 24 hours reply.
3. Customed as you want.
4. Competitive price: we are factory.Design, produced ,installed all by ourself-save cost.
5. One year of warranty period and life long technical support.
6. Market share in Global: more than 90%, we are the leading factory in this filed.WE ARE NOT ONLY PRODUCER ,BUT ALSO THE SLOVER.
