• Model NO.：COLO2315
• Voltage：220V,380V
• Size：D1500*W2300*H1500mm
• Delivery Time：10 Day S
• Powder Supply：Electric
• Weight：450kgs
• Fan Motor：4kw
• Filter Hang Type：Easy for Change
• Filter Quantity：4PCS
• Filter Matrial：Polyster
• Transport Package：Carton
• Specification：CE
• Trademark：HICOLO
• Origin：China
• HS Code：8424899990
• Production Capacity：20PCS ,Meses

Basic Info.

Model NO. COLO2315 Voltage 220V/380V Size D1500*W2300*H1500mm Delivery Time 10 Day S Powder Supply Electric Weight 450kgs Fan Motor 4kw Filter Hang Type Easy for Change Filter Quantity 4PCS Filter Matrial Polyster Transport Package Carton Specification CE Trademark HICOLO Origin China HS Code 8424899990 Production Capacity 20PCS /Meses

Product Description

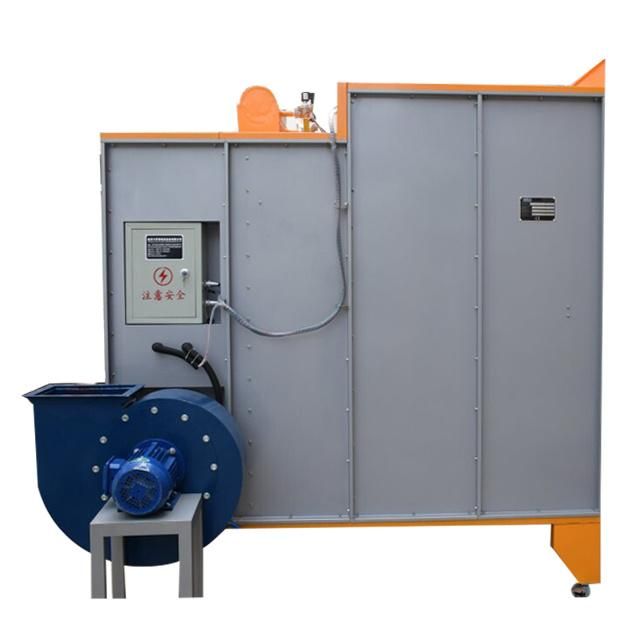

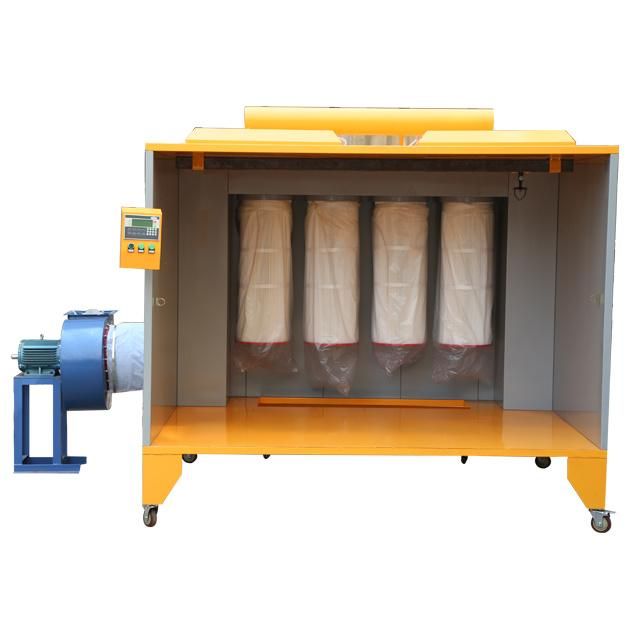

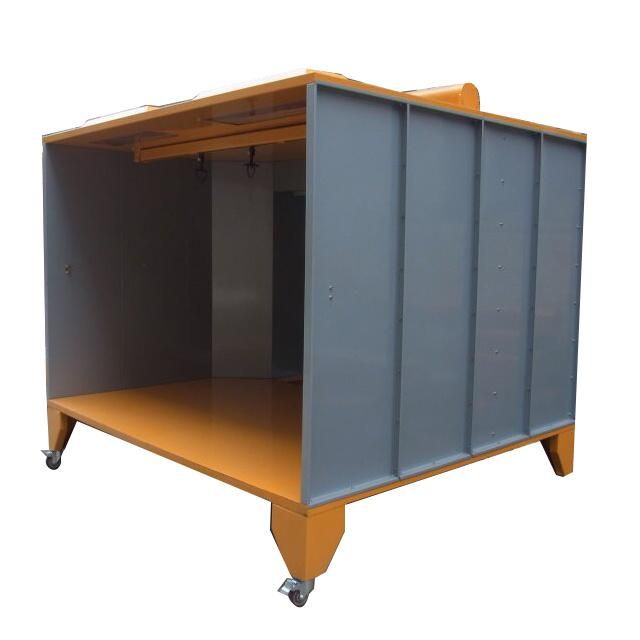

Gray Color Standard Size Manual Powder Spray Cabinet

Description:
Inner size:D1500*W2300*H1500mm
Value  Flexbility Performance
100% polyster filters quick-release type
Color can be choosed
Rocker arm PLC  control unit,easy operation

Advantages:
1.Plastic anti-static, not easy adsorption powder, therefore, clear color change is very easy and quick.
2.Spray outlet has a sliding door, when the clean-up booth, the import and export all off, you can
speed up the rate of spray to clean the room.
3.Light-colored spray booth and the integrated lighting to ensure good working conditions, staff
can enter the booth, with an elongated air lance can facilitate internal cleaning spray.

Model COLO-S-2315 the  size and color  can be ordered according to the requirements of the clients.

Model	COLO-S-2315
Booth Type	Closed
Operator dimensions	D1500*W2300*H1500mm
Overall dimensions	D2070*W2750*H2180mm
Weight	450kg
Power supply	Electric
Nominal power	4kw
Voltage	380V 3PHASE
Frequency	50-60Hz
Filters	Polyester
Filters count	4(325*900)
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Air consumption	6677-13353m3/h
Warranty	12 months







Introduction:Powder Coating Booth

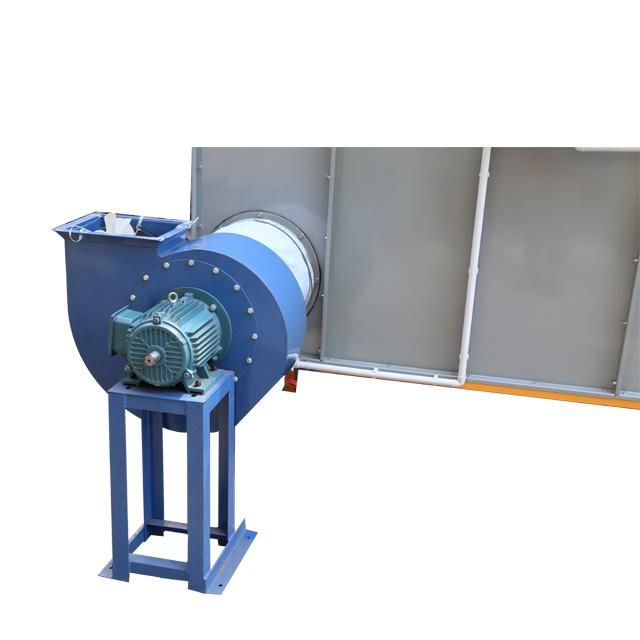

Powder Coating Booth consists of stainless steel panel room, Cleaning Panel, Fast Change Color Recovery System, including Mono-cyclone Unit, Filter Recycle Unit, Recycle Fan, Magnetic Valve, Re-verse Blow,
Compress Air Reservoir, Pneumatic Control and Electrical Control.

There are four stages for the Recovery System; it includes Powder Coating Suctions, Separation, Filtering and Out Deliver, 98% recycle powder can be reused.

To our new design, there is a Cleaning Panel in the bottom of booth, which is able to reverse, easy to cleaning. The Powder Coating Booth optional size 5~8meters, depends on clients' requirement and
technical design.
