• Model NO.：Colo-S-2152
• Warranty：12month
• Transport Package：as Export Standard
• Specification：Internal Size: 1400width x?1800?height x?1000 dept
• Trademark：COLO
• Origin：China
• Production Capacity：50set,Month

Basic Info.

Model NO. Colo-S-2152 Warranty 12month Transport Package as Export Standard Specification Internal Size: 1400width x?1800?height x?1000 dept Trademark COLO Origin China Production Capacity 50set/Month

Product Description

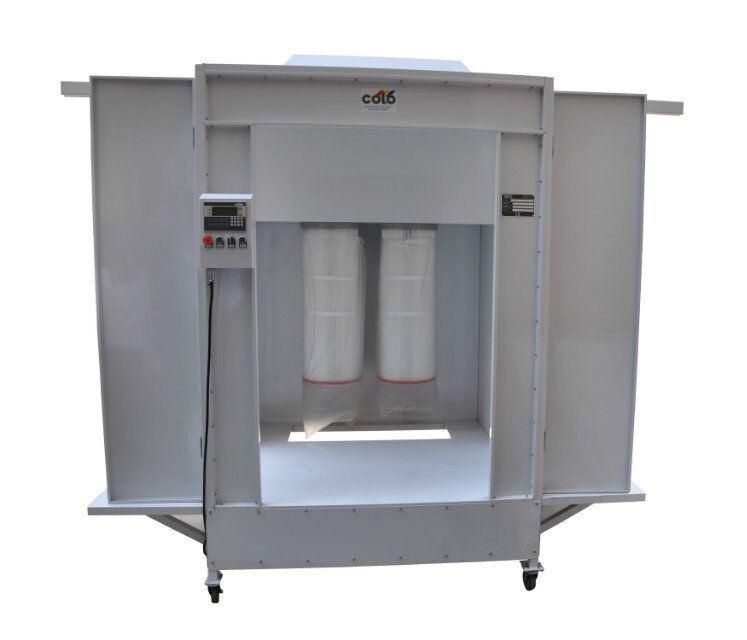

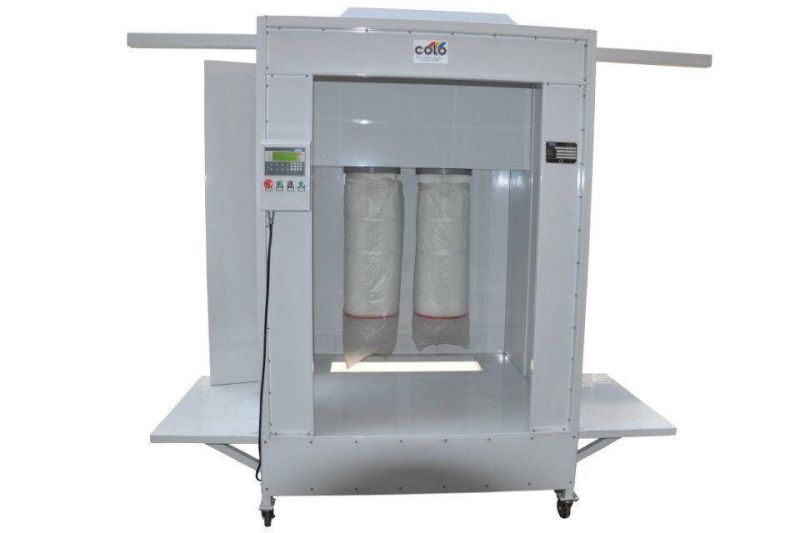

Closed-drive-thru Powder Paint Spray Booth
COLO-S-2152 Tunnel BoothThis booth is having side doors & article holding track entry & exit is from side through doors. By this way material handling is systematic i.e. from one side entry, coating & then exit from other side. If for spraying two side, could make 2 operation doors.
In exceptional case, if article is very long then a door can be kept open & coating is done step by step by moving article slowly. In this case recovery will be reduced.

youtube Video link: https://coatingsystem.en.made-in-china.com

Excellent Features
1.  Cartridge filter style powder coating booths
2.  Low compressed air consumption and noise level
3.  Good lighting system
4.  Open design making cleaning a simple operation
5.  Powerful extraction guarantees a safe and clean working environment
6.  Booth with a two sides door, can be used in line coating

Specifications

Model	Colo-2152
Booth Type	Closed-drive-thru
Operator dimensions	1400widthx1800heightx1000depth
Overall dimensions	2500widthx2300heightx1500depth
Power Supply	380V(50-60HZ)
Nominal power	3.5kw
Filters	Polyester
Filter Count	2
Filter Cleaning System	pneumatic
Machine Weight	450kg
Warranty	12 months

When you need to coating the big workpiece you open the door ;
If coating samll size metals ,  closed the door and paint.

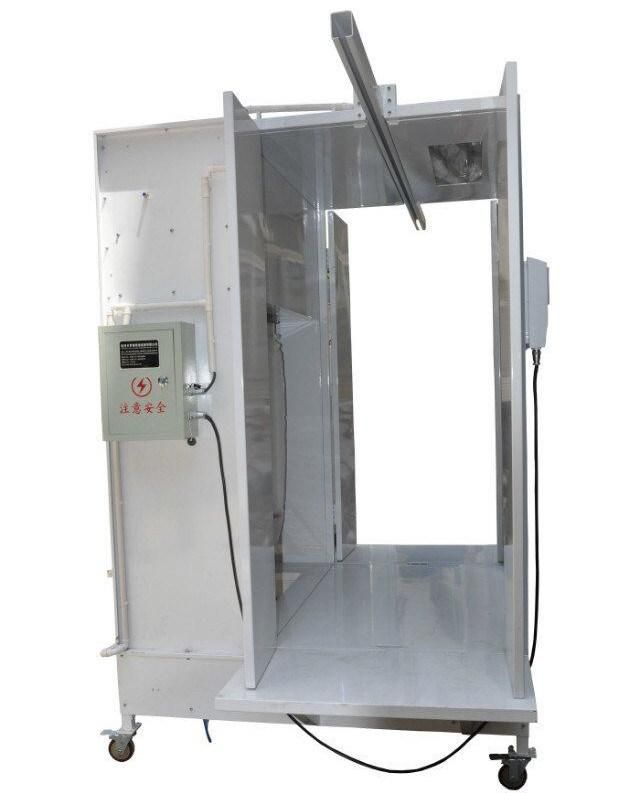

Side door open

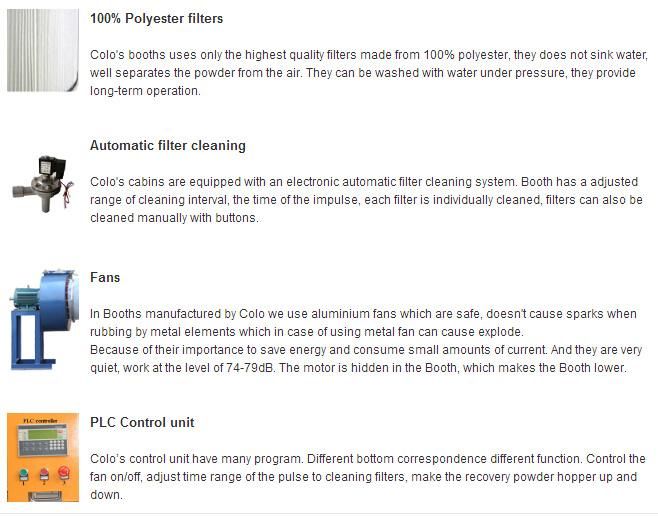

Components
