• Model NO.：COLO-191S-H
• Transport Package：Carton
• Specification：Weight: 20kg
• Trademark：COLO
• Origin：China
• Production Capacity：3000,Month

Basic Info.

Model NO. COLO-191S-H Transport Package Carton Specification Weight: 20kg Trademark COLO Origin China Production Capacity 3000/Month

Product Description

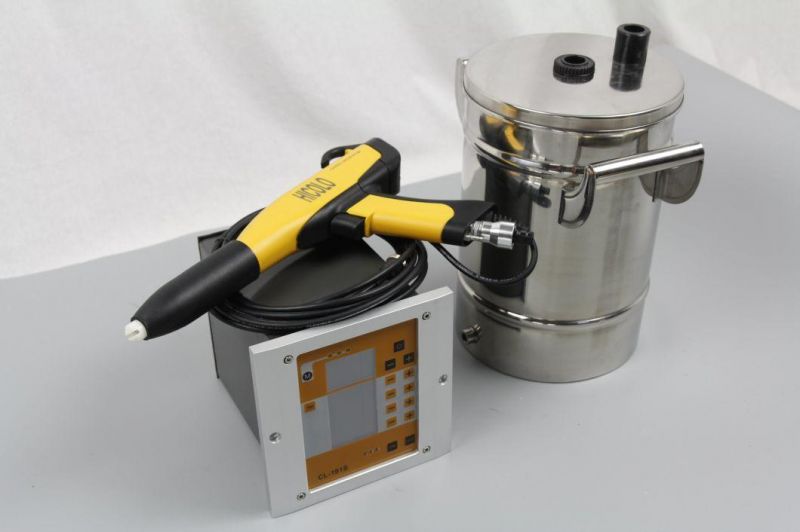

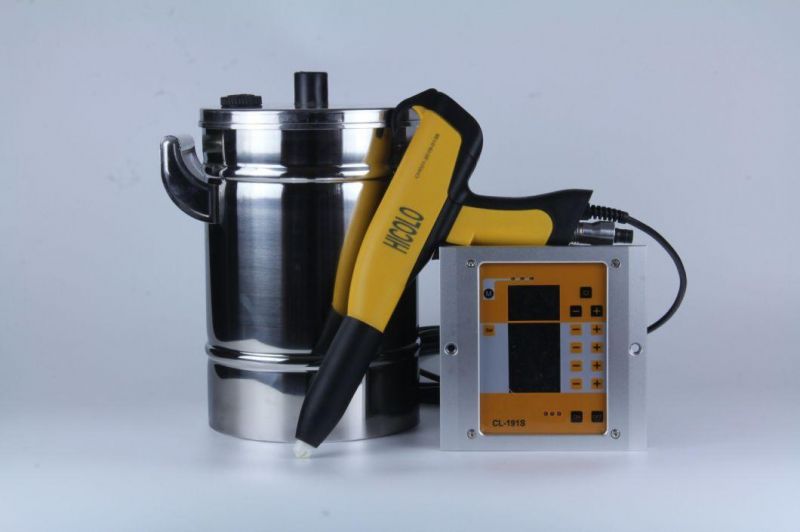

Digital Powder Coating Machine High Quality

Colo-191s-H powder coating gun is suitable for small powder coating job or for powder coating testing.It is digital ,up to 20  coating programs can be stroed in the control unit for different value.In addition,it offers 3 pre-set standard application programs for flat parts,complex parts and recoating.It is for high quality powder coating required,it is optimized even for parts or powder.Perfect coating quality!




Technical Data:
Electrical data
Power range                                   220V
Frequency                                      50HZ
Temperature range in use              -10 ºC+50 ºC
Powder Gun
Gun weight:    .........                      500G
Rated output voltage ...…                      24VDC
Input voltage     ......…                       - 200kv
Maximum output current  ...…              180Ua(max)
Maximum output voltage......             0-100KV (  adjustable)
Maximum powder injection :...…            600g/min
Polarity .........                                negative (-)
Pneumatic data
Maximum input-air pressure ........                          10kg/cm
Optimum input-air pressure.....                                    6kg/cm
Minimum input-air pressure   ...                                  4kg/cm
Maximum water vapor content or compressed air …..    1.4g/N m3
Maximum oil vapor content of compressed air   .....     0.1ppm
Maximum compressed-air consumption...…                13.2 m3/h

Packing&Delivery
Packing: usually by wooden case and carton as need.
Delivery:small order like under 10sets usually with 3days after get the payment.

If you are interested in our products,please feel free to contact us .
