• Model NO.：LXP1325
• Transport Package：Wooden Case
• Trademark：asyy
• Origin：China
• Production Capacity：100,Month

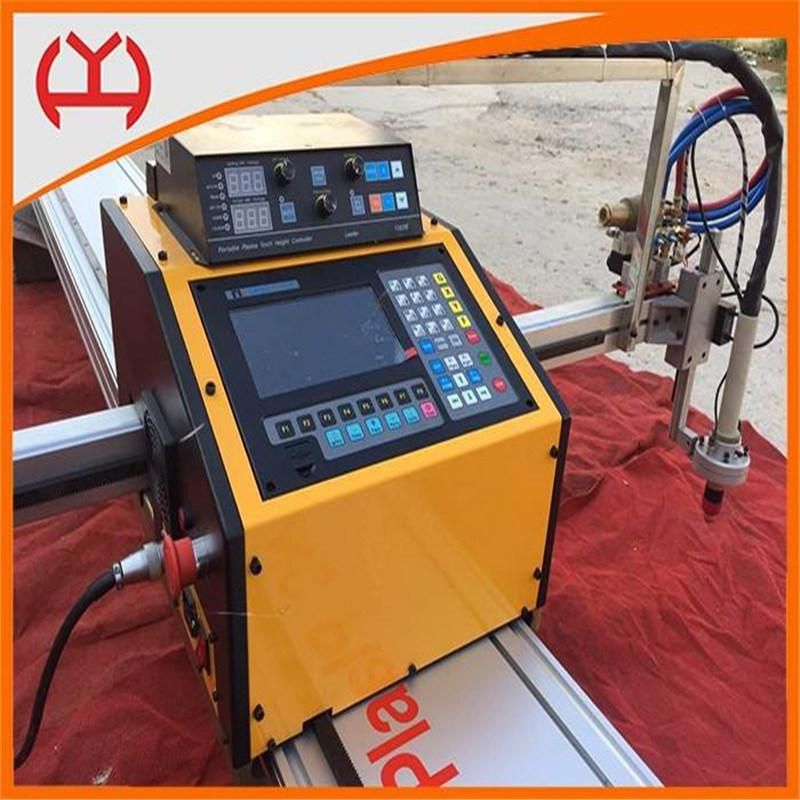

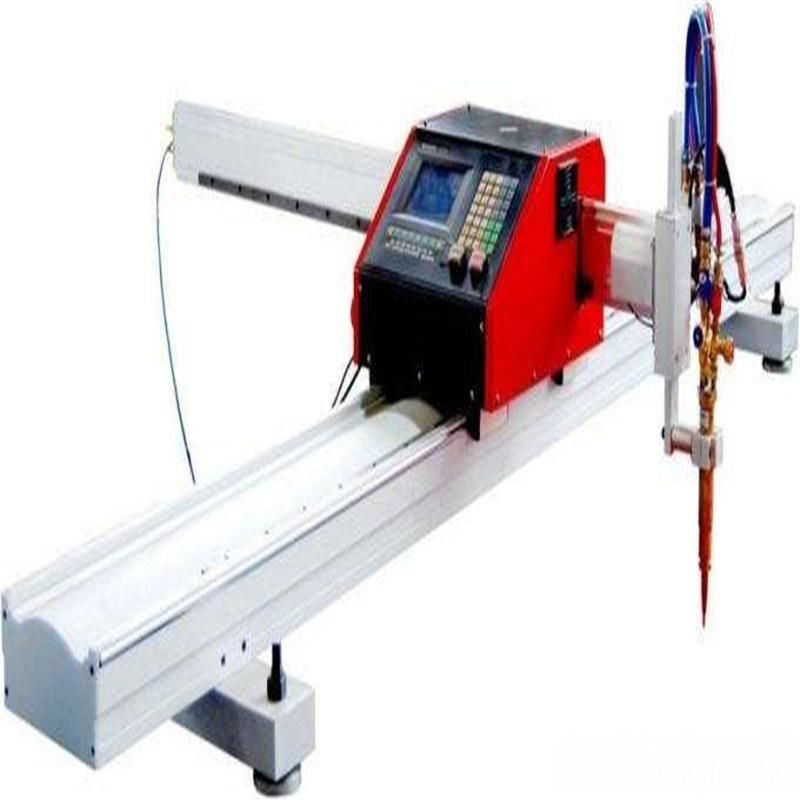

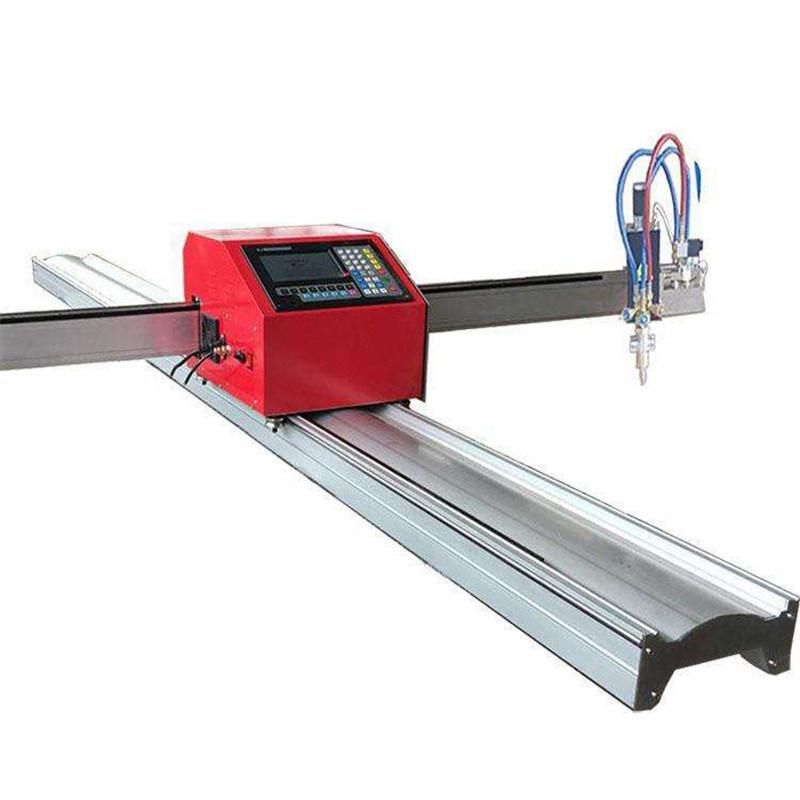

Technical specification of Portable cnc plasma cutting machine1ModelLXP13252Power sourceAC 220/380±10%VAC 50/60Hz 3Cutting modeO2/C3H8 or C2H24Effective cutting range(mm)1300*25005Input Voltage220V, 50HZ6Cutting speed(mm/min)0-8000mm/min7Cutting thickness(Flame)(mm)6-160 (O2/C3H8 or C2H2)8Move precision±0.2mm/m9TorchFlame, electric height adjustment(±60mm)10Processing thickness(mm)0.5-15mm11Cutting systemStarfire control system12Host weight(kg)1913Total weight(kg)100KG14Gas pressure(Mpa)Max.0.115Oxygen pressure(Mpa)Max.0.716Type of gasC3H8 C2H217Emergency stopYes18Working temperature-5~45ºC19Power8.5kw20Plasma power40A to 200A21ARCUntouched arc striking22Processing MaterialsIron, steel aluminum sheets, galvanized sheets, Titanium plates

configurations of machine

1. STARfire Control system

2. Huayuan plasma power (Option:Hypertherm Power) You can aslo choose machine without power supply.

3. Automatic arc pressure adjustable

4. Stepper motor and driver

5. UCANCAM Software

6. Round rails and gear Guide

7. Thicken cast steel structure

8.Wooden box package
