• Model NO.：KIH-25AB
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• 25kw：30-80kHz
• Color：Blue and Black
• Application：Melt Heating
• Transport Package：Wooden Cases
• Specification：CE ROHS CCC ISO
• Trademark：KIA
• Origin：China
• HS Code：8514400090
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. KIH-25AB Customized Customized Advantage Use Widely Condition New 25kw 30-80kHz Color Blue and Black Application Melt Heating Transport Package Wooden Cases Specification CE ROHS CCC ISO Trademark KIA Origin China HS Code 8514400090 Production Capacity 1000 Sets/Month

Product Description

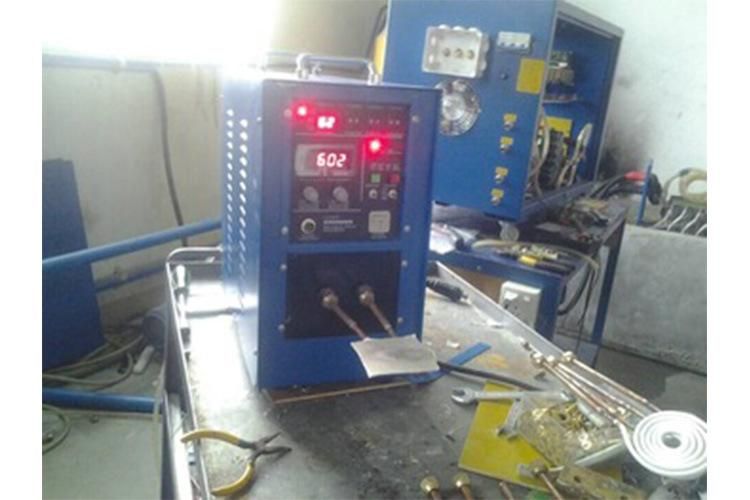

KIH-25AB High Frequency Induction Heating Machine
Main characteristics:

1. MOSFET and Inverting technologies of First generation been used;
2. Simple structure and light weight;
3. Simple to operate, a few minutes is enough to learn it;
4. Simple to install, Installation can be done by unprofessional person very easily;
5. Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
6. The saparated models are designed to fit the dirty surrounding of some cases

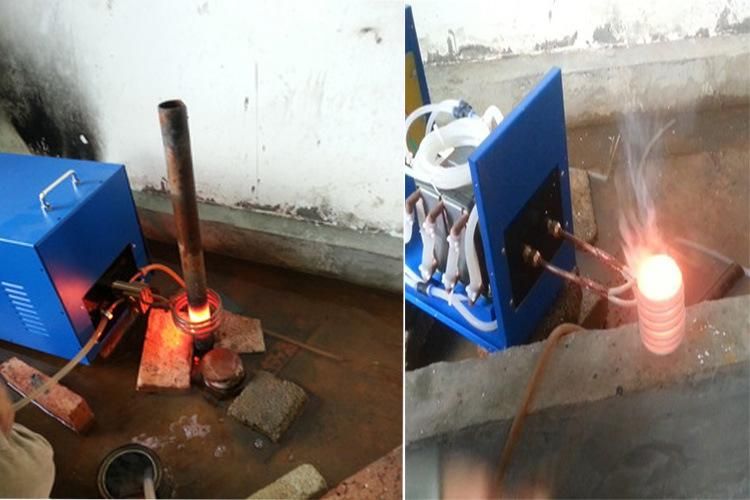

Applications:
Heat treatment
Quenching(gear quenching, scissors quenching, hammer surface quenching)
Forging(rod hot forging, drill tip heat shaping)
Melting(gold, silver, copper forging)
Soldering and brazing(solder copper pipe and aluminum pipe, diamond blade tool brazing)

Type	KIH-25AB
Work power	3×380V/50-60HZ
The range of operating voltage	340V-430V AC
Output power	25 KW
Fluctuating frequency	30-80KHZ
Output current	200-1200A
Timing (Heat time Retain time  Cool time)	1-99S
The flow rate of cooling water	0.06-0.12 Mpa  6L/Min
Water temperature protection point	40ºC
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:21.5Kg; Extension:15.5kg
Size	Main parts:480*240*400mm Extension:315*200*350mm
