Rebar Bending Hoop Machine Steel Bar Bender Round Equipment Iron Rod Curved Bending Machinery
Henan Yugong Machinery Co., Ltd.- Bending Speed:20m,Min
- Motor Model:Y100s-4
- Voltage:380V
- Bending Diameter:Φ12-24mm
- Power:3kw
- Weight:360kg
Base Info
- Name:Steel Bending Machine
- Rotating Speed:1440r,Min
- Curvature Radius:More Than 100mm
- Model:Gwh-24
- Transport Package:Wooden Case
- Specification:860*600*700
- Trademark:YUGONG
- Origin:China
- HS Code:8463900090
- Production Capacity:100 Set,Month
Description
Basic Info.
Name Steel Bending Machine Rotating Speed 1440r/Min Curvature Radius More Than 100mm Model Gwh-24 Transport Package Wooden Case Specification 860*600*700 Trademark YUGONG Origin China HS Code 8463900090 Production Capacity 100 Set/MonthProduct Description

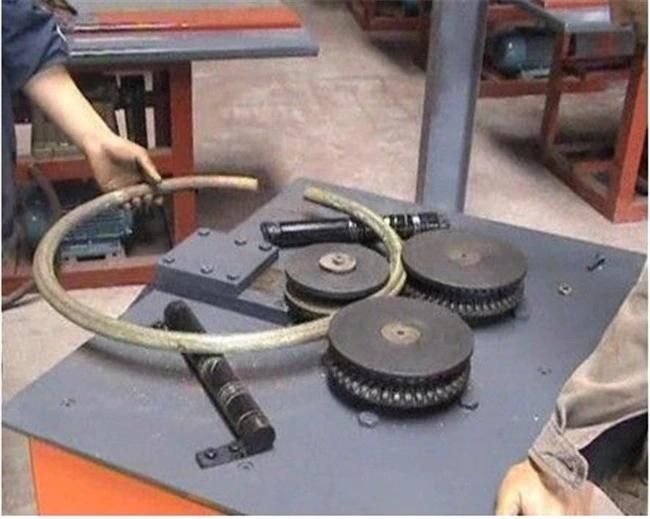

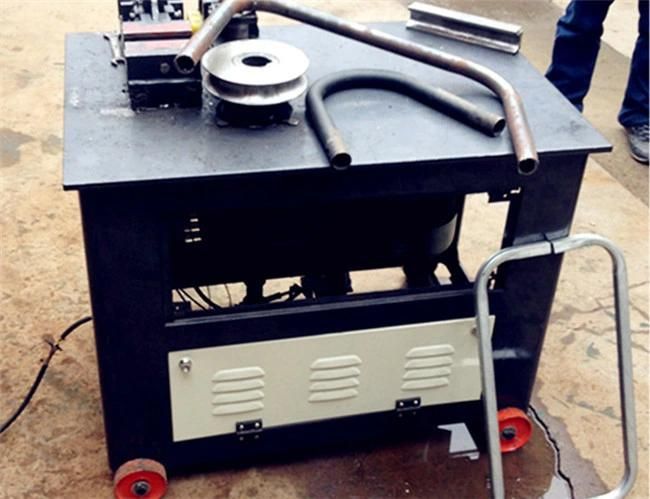

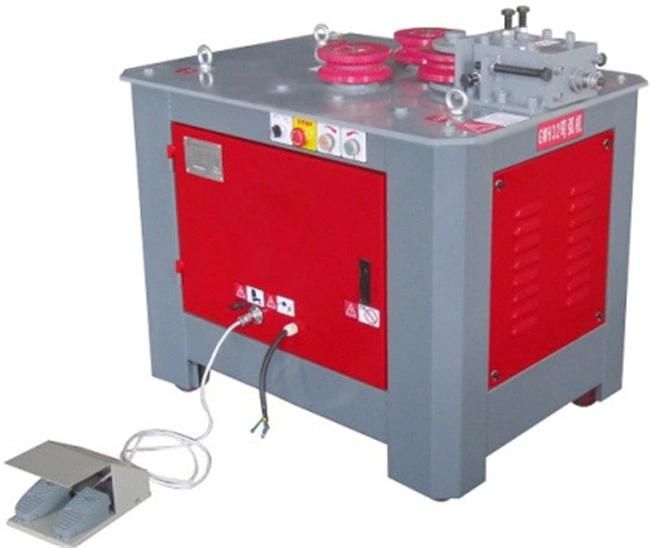

Description of rebar bending hoop machineThe steel bar bending hoop machine belongs to a kind of steel bar bending machine structure improvement. The utility model comprises a reducer, a large gear, a pinion and a curved disk.
Steel bar bending hoop machine is an ideal steel bar bending equipment, mainly used for large-scale construction projects, such as briges, tunnels, culverts, hydropower stations, subway project 360° steel arc forming processing.
Feature of rebar bending hoop machine
1. New movement cone-oriented devices,scrap steel does not play section,not stuck,go out more smoothly.
2.Entrance anti-rejection and anti-hook design,bending steel easier to enter.
3.Professional sharp steel cut-off device,easy to cut,more durable.
4.More reasonable inlet&outlet assembly design,adjustment is more convenient.
5.Improved globle detail design, sound smaller,lower energy consumption,easier operation.
6.Applicable to 4-12mm waste steel straightening
Application for rebar bending hoop machine
Applicable to construction engineering, highway, bridge engineering and concrete components, prefabricated board straight disk circle and straightening of the use of waste steel straightening.Technical parameter of rebar bending hoop machine
Model | GWH-24 | GWH-32 | GWH-40 | GWH-45 | GWH-50 |
Bending diameter of rebar | Φ12-24mm | Φ24-32mm | Φ32-40mm | Φ40-45mm | Φ45-50mm |
Curvature radius of the arc | ≥100mm | ≥ 150mm | ≥300mm | ≥400mm | ≥500m |
Bending speed | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min |
Motor Model | Y100s-4 | Y112M-4 | Y112M-4 | Y112M-4 | Y132S-4 |
Power | 3kw | 4kw | 4kw | 4kw | 5.5KW |
Rotating speed | 1440r/min | 1440r/min | 1440r/min | 1440r/min | 1440r/min |
Voltage | 380v | 380v | 380v | 380v | 380v |
Size (mm) | 860*600*700 | 960*760*800 | 180*1000*880 | 1180*1000*880 | 1180*1000*980 |
Weight | 360kg | 430kg | 600kg | 630kg | 680kg |
1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.
Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery.
packaging &shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
