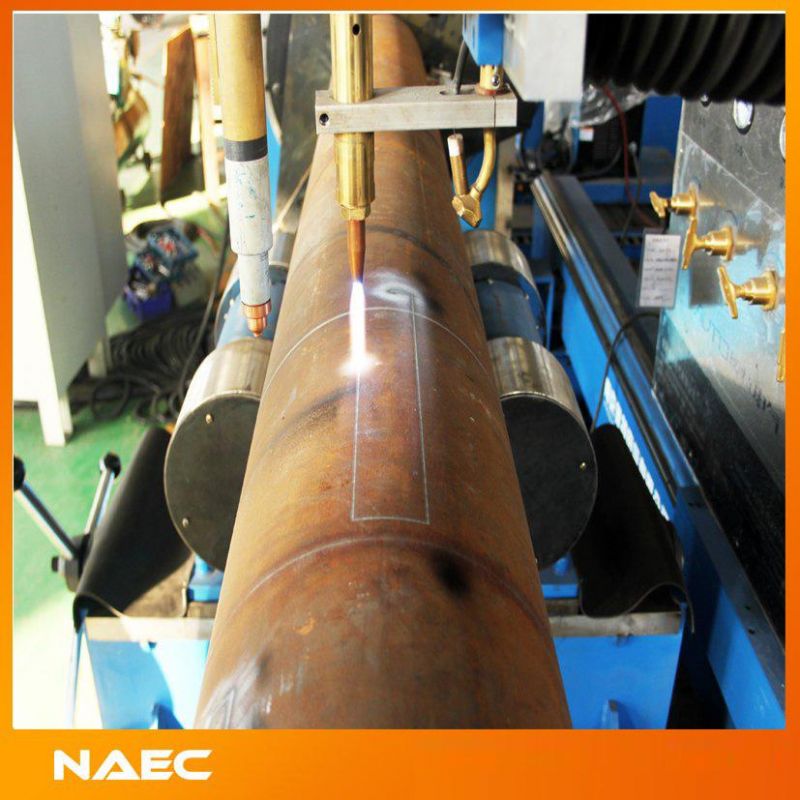

Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Machine 2-24"

Nanjing Auto Electric Co., Ltd.
  • Specification：SGS, ISO9001
  • Trademark：NAEC
  • Origin：China

Base Info

    Description

    Production Line Type:Fixed in workshopSuit for Pipe Diameter:2 to 24inchSuit for Pipe Material:CS/SS/ALSSuit for Pipe Wall Thickness:2-50mmSuit for Pipe Length:12MCutting & Beveling Speed:No more than 5 mins to finish 2 bevelsCutting Precision: 1mmCutting Self Measuring FunctionIncluded Conveying Speed:2-20 m/minCutting Mode:Vertical cutting
    random angel cutting
    multi syphon unfolding cutting
    insert style- 3 pipe union transversal cutting
    ride style- 3 pipe union transversal cutting  Program software:

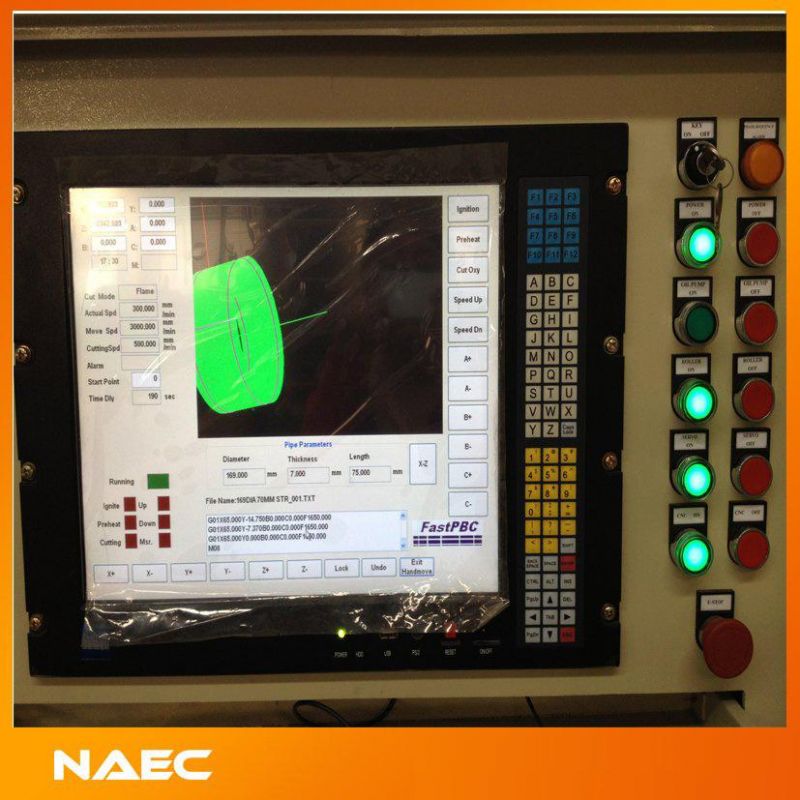

     World Top brand of FASTCAM program softwareServo system: Panasonic alternating servo
    Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Machine 2-24"

    Q: Can programming be done remotely? Does Customer need a programmer?
    A: Programming cannot be done remotely. It is done in the computer and copy to the machine by USB flash disk. You will need a programmer, but he does not need to be very professional because of easy operation with menus and diagrams.

    Q: Can customer use drawing input directly to load machine?
    A: Yes, such as AUTOCAD drawing to be loaded.

    Q: What will happen in continuous HOT / Humid condition in open Yard?
    A: PANEL needs to be air-conditioned AND tropicalised.

    Q: What will happen if ovality of tubular is more? Will it give error?
    A: Our machine can track and correct the height of cutting gun.

    Q: Will machine find work point?
    A: Yes, the machine can find the work point automatically.

    Q:Will turning rollers have any synthetic material (rubber/ Teflon) to minimize "pipe slippage" during cutting?
    A: Plasma cutting needs such material. Flame cutting does not need.

    Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Machine 2-24"

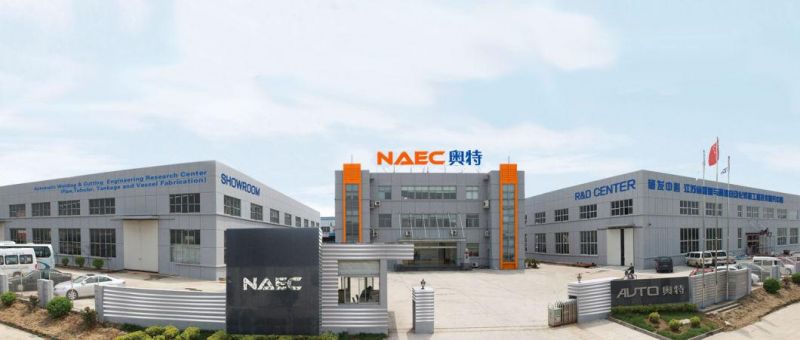

    Welcome to visit NAEC in Nanjing, China.
