• Model NO.：450-3700A
• Cutting Width：Max 120mm
• Cutting Height：Max 200mm
• Cutting Angle：-45° - 90° - 45°
• Transport Package：Seaworthy Package
• Specification：450mm saw blade
• Trademark：Eworld
• Origin：China
• HS Code：84752919
• Production Capacity：10 Sets ,Month

Basic Info.

Model NO. 450-3700A Cutting Width Max 120mm Cutting Height Max 200mm Cutting Angle -45° - 90° - 45° Transport Package Seaworthy Package Specification 450mm saw blade Trademark Eworld Origin China HS Code 84752919 Production Capacity 10 Sets /Month

Product Description

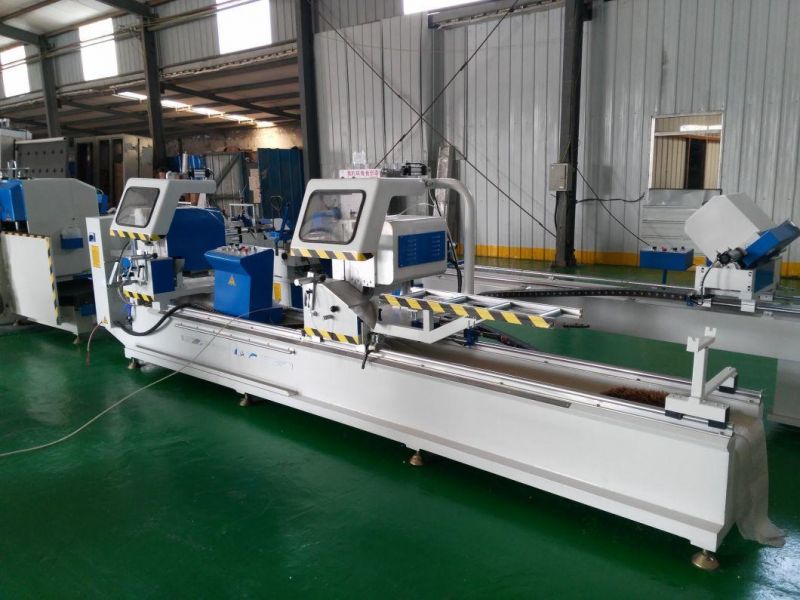

Double Head Cutting Saw Aluminum Window Machine




1.Features

Used for aluminum profile cutting.

2. The linear guiding pair ensured steady processing accuracy.

3. Saw blade rotate smoothly due to high accuracy main spindle.

4. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

5. It has feature of easy operation, reliable performance, advanced technique and convenient maintenance ect.

6. Right head moving saw blade give accurate processing and high efficiency.

7. Imported carbide saw blade give accurate processing and high efficiency.

8. Two head can work together or single, when together work , one tine. can cut off the required length and angle

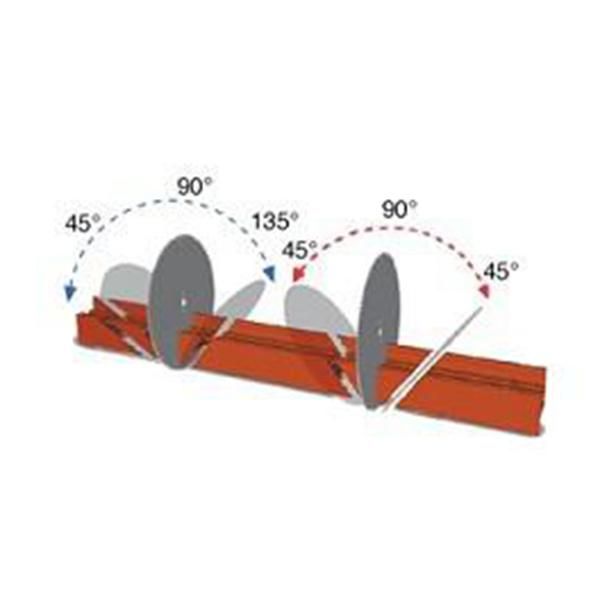

2.Cutting Angle description

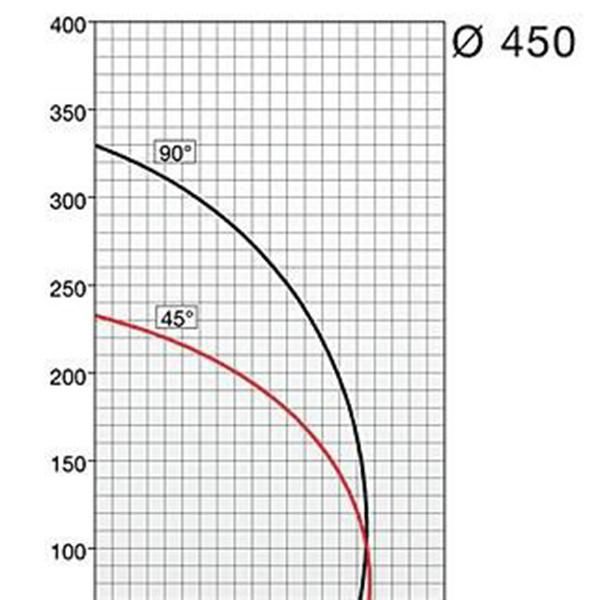

3.Cutting chart



 4.Technical parameter


Model	450-3700A
Power Supply	3 Phase
Operation Air Pressure	4~6 kgs
Cutting Motor Power	2 x 2HP
Motor Rotary Speed	2800 r/min
Air Consumption	200 L/min
Blade Specification	Φ450×4.0×3.5×30.0×120
Cutting Length	max3700mm / Min400mm
Cutting Width	max 120mm
Cutting Height	max 200mm
Cutting Angle	-45° - 90° - 45°
Cutting Angle Allowance	± 5'
Cutting Speed	0-3m/min
Cutting Profile Surface Planeness	≤ 0.1mm
Cutting Profile Surface Rougness	Ra 12.5µm
Contour Dimension	4500mm x 1100mm x 1400mm
Net/Gross Weight	1500 kgs
