Aluminum Windows Machine with Double Head Cutting Saw 450-3700
Shandong Eworld Machine Co., Ltd.- After-sales Service：on Line
- Warranty：One Years
- Blade Specification：Φ450×4.0×3.5×30.0×120
- Cutting Length：Max3700mm , Min400mm
- Cutting Width：Max 120mm
- Cutting Height：Max 200mm
Base Info
- Model NO.：450-3700
- Cutting Angle：-45° - 90° - 45°
- Cutting Angle Allowance：± 5′
- Cutting Speed：0-3m,Min
- Contour Dimension：4500mm X 1100mm X 1400mm
- Net/Gross Weight：1500 Kgs
- Transport Package：Seaworthy Package
- Specification：450mm saw blade
- Trademark：Eworld
- Origin：China
- HS Code：84752919
- Production Capacity：10 Sets ,Month
Description
Basic Info.
Model NO. 450-3700 Cutting Angle -45° - 90° - 45° Cutting Angle Allowance ± 5′ Cutting Speed 0-3m/Min Contour Dimension 4500mm X 1100mm X 1400mm Net/Gross Weight 1500 Kgs Transport Package Seaworthy Package Specification 450mm saw blade Trademark Eworld Origin China HS Code 84752919 Production Capacity 10 Sets /MonthProduct Description

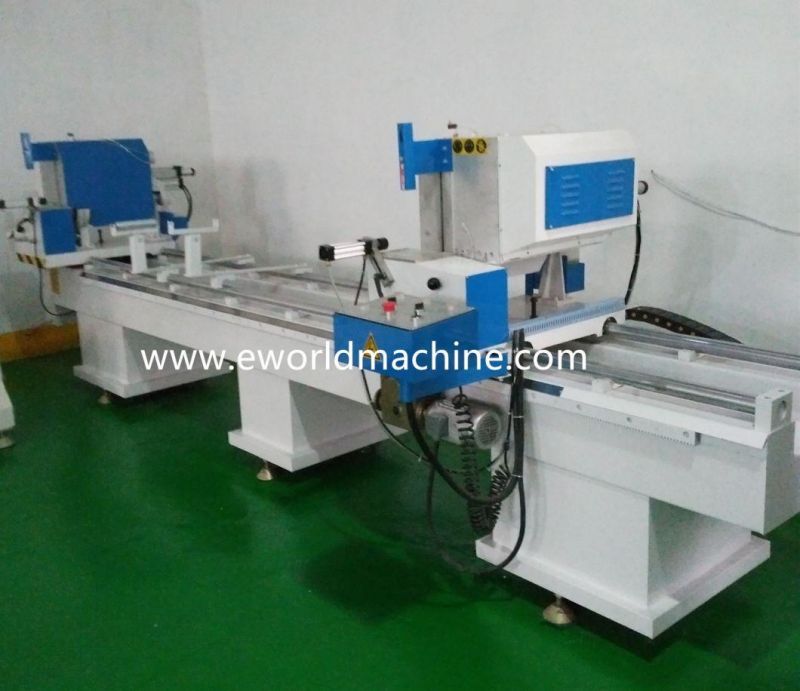

Aluminum windows and doors machine with double head cutting saw
1.Features
| Used for aluminum profile cutting. |
| 2. The linear guiding pair ensured steady processing accuracy. |
| 3. Saw blade rotate smoothly due to high accuracy main spindle. |
| 4. Uniform speed feeding and smooth motion due to airdraulic damping cylinder. |
| 5. It has feature of easy operation, reliable performance, advanced technique and convenient maintenance ect. |
| 6. Right head moving saw blade give accurate processing and high efficiency. |
| 7. Imported carbide saw blade give accurate processing and high efficiency. |
| 8. Two head can work together or single, when together work , one tine. can cut off the required length and angle |

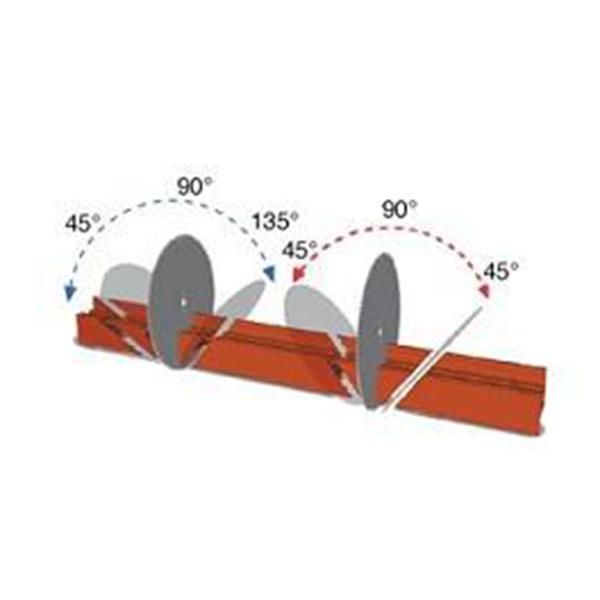

2.Cutting Angle description

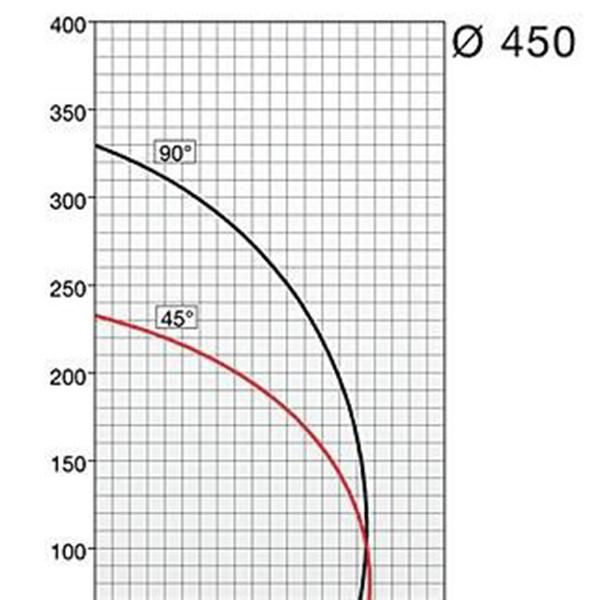

3.Cutting chart
4.Technical parameter
| Model | 450-3700 |
| Power Supply | 3 Phase |
| Operation Air Pressure | 4~6 kgs |
| Cutting Motor Power | 2 x 2HP |
| Motor Rotary Speed | 2800 r/min |
| Air Consumption | 200 L/min |
| Blade Specification | Φ450×4.0×3.5×30.0×120 |
| Cutting Length | max3700mm / Min400mm |
| Cutting Width | max 120mm |
| Cutting Height | max 200mm |
| Cutting Angle | -45° - 90° - 45° |
| Cutting Angle Allowance | ± 5' |
| Cutting Speed | 0-3m/min |
| Cutting Profile Surface Planeness | ≤ 0.1mm |
| Cutting Profile Surface Rougness | Ra 12.5µm |
| Contour Dimension | 4500mm x 1100mm x 1400mm |
| Net/Gross Weight | 1500 kgs |
