• Model NO.：C41-40 kg
• Feature：High Efficiency
• Certification：ISO9001
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Weight of Falling Parts：40kg
• Weight：1500kg
• Dies：Flat Die to Start
• Motor：600V 50Hz 3 Phase
• Round Steel Can Be Forged：68mm
• Malleable Side Steel Length of Side(mm)：52X52 mm
• Electrical Rotational Speed：1440 Rpm
• Hit Energy：0.53kj
• Motor Size：4kw
• Transport Package：Plywood Cases
• Specification：1500x670x1800 mm
• Trademark：tokmc
• Origin：Shandong China
• HS Code：8462109000
• Production Capacity：80 Sets,Month

Basic Info.

Model NO. C41-40 kg Feature High Efficiency Certification ISO9001 Warranty 12 Months Customized Customized Advantage Use Widely Condition New Weight of Falling Parts 40kg Weight 1500kg Dies Flat Die to Start Motor 600V 50Hz 3 Phase Round Steel Can Be Forged 68mm Malleable Side Steel Length of Side(mm) 52X52 mm Electrical Rotational Speed 1440 Rpm Hit Energy 0.53kj Motor Size 4kw Transport Package Plywood Cases Specification 1500x670x1800 mm Trademark tokmc Origin Shandong China HS Code 8462109000 Production Capacity 80 Sets/Month

Product Description

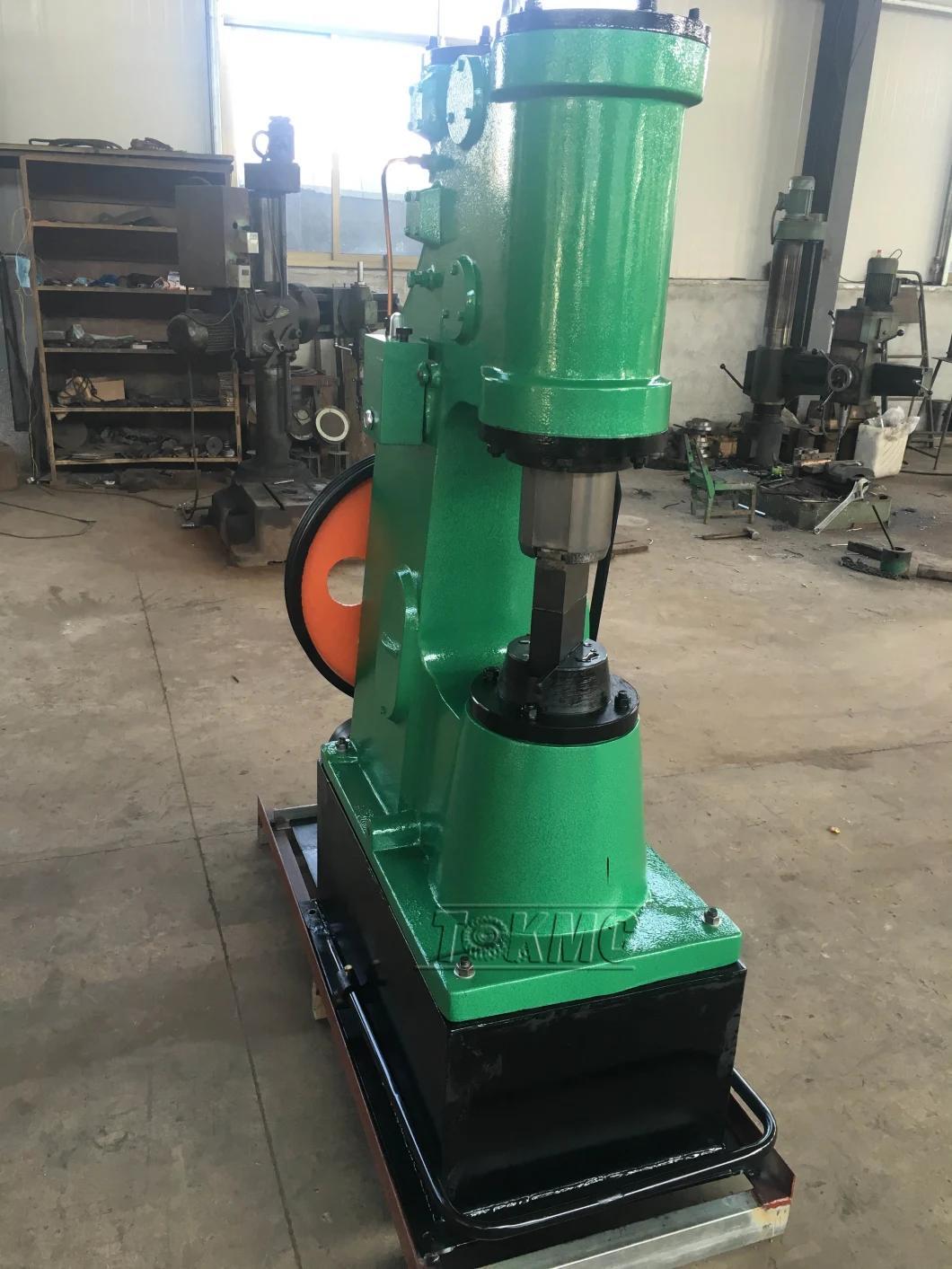

hammer air ,pneumatic hammer forging machine
1. there are two kinds of forging hammer.
     anvil built in
     anvil seperate
2.Base part is optional
3. The motor can be single phase from 16 kg to 25kg,

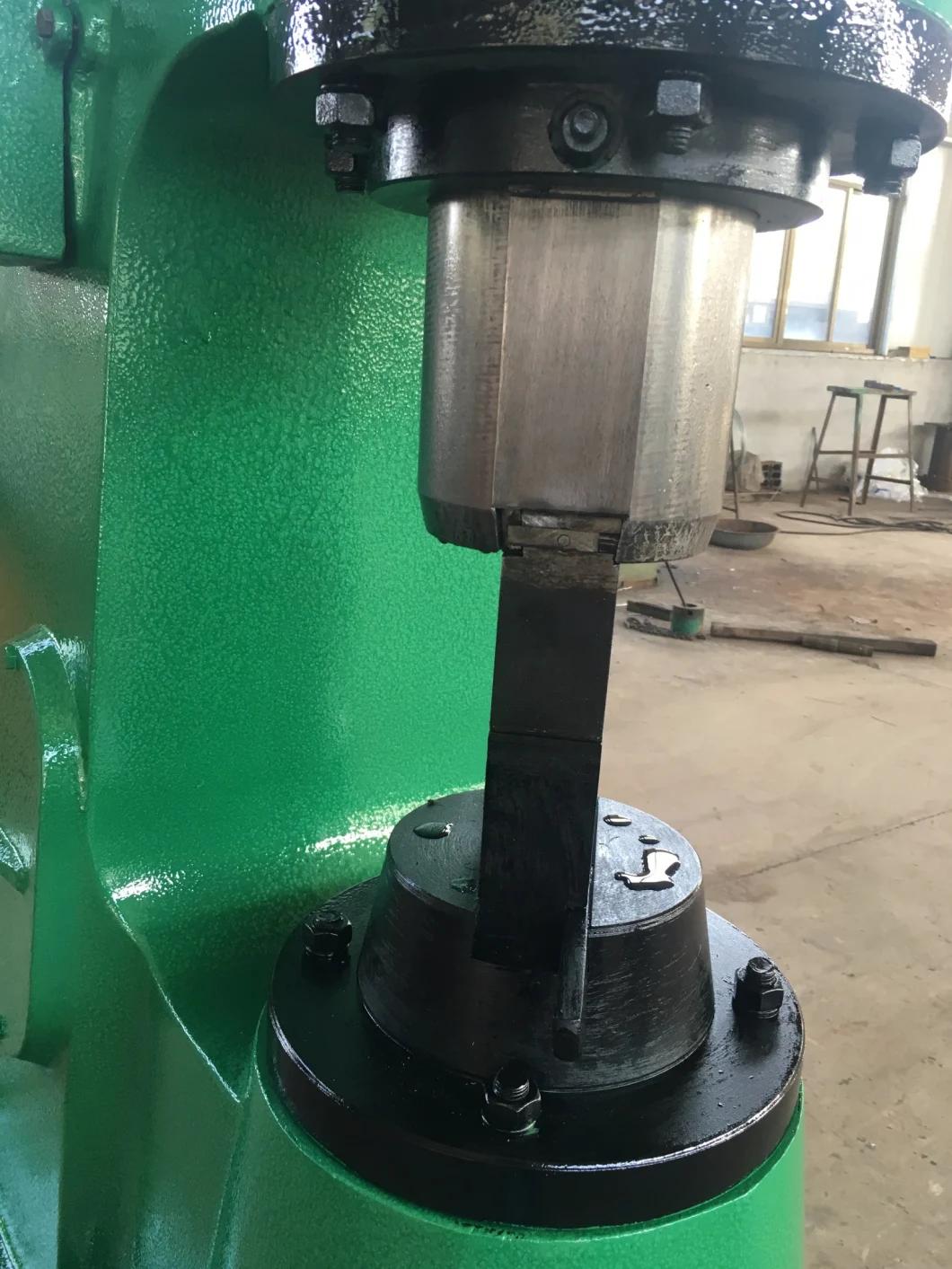

4. There will be a flat die for start using.
5. Optional dies can be supplied.


Learning to use this hammer is easy.

1. Apply pressure on the foot pedal
2. Your foot controls the hammer Stroke, from heavy blows to soft taps.
3. No stopping to Re-tune the hammer for different sizes of stock means more productivity !

Advantage of self-contained Air hammer

1. Higher hitting Energy
2. More hammer control
3. Dependable
4. Low operating cost

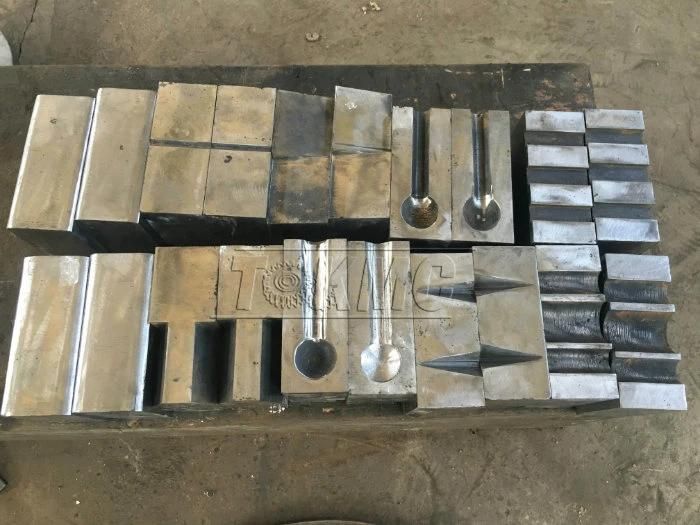

A wide selection of dies are in stock and ready to ship !

1. For tool Manufacturing,
2. Ornamental Iron
3. Knife making
4. Custom Die making is also available.

TOKMC has you covered !
Forged tool steel for all major Moving parts including the hammer's ram
All components are forged, machined, heat-treated and polished in our factory.

Specifications	C41-75kg	C41-40kg
Attack energy(J)	100	53
Work sector altitude(mm)	300	245
Attack number of times(min-1)	210	250
Malleable side steel length of side(mm)	65×65	52×52
Malleable round steel length of side(mm)	Φ85	Φ68
Uses for patrs the power(mm)	7.5	4
Electrical rotational speed(r.p.m)	1440	1440
Anvil weight(kg)	850	400
Gross weight(kg)	2800	1350
Outlook size(mm)	1600×950×1950	1080×600×1389

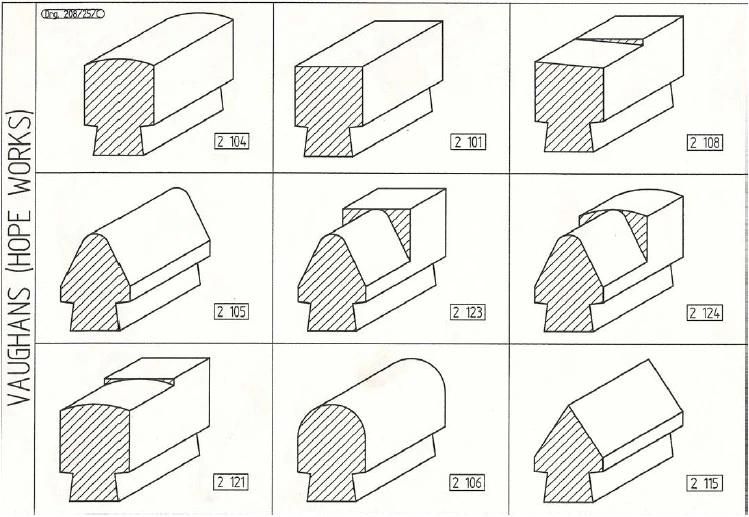

Optional dies size:




Company information


FAQ
 -When do you deliver?
Depending on your community we delivery   ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or cheques?
We accept Interac e-transfers? cash, and cheques.
-How is the warranty ?
12 months
- If i have a problem setting the hammer up/ getting it running problem.  Will you be available by email to assist with solving the problem.
Video techanical support, online service

Our advantage
We service the world from Zaozhuang city Shandong Province. Our knowledgeable sales staff can help you find the best industrial equipment to meet your needs. We ship world wide China Port and can find any Model, Condition, year and miles you want at unbeatable prices based on quality. The advantage productions:cnc milling machine,cnc lathe machine,radial drilling , sheet metal works, blacksmith jack hammer, surface grinding,
