• Model NO.：SFJ A Series
• Feeding Motor Power(Kw)：0.37-0.55
• Capacity(Kg/H)：100-800
• Feeding System：Variable by Means of Frequency Inverter
• Screw Speed(Rpm)：0-500
• Speed Adjust System：Adjustable Speed by Means of Frequency Inverter
• Cooling System：Water Cooled
• Raw Material：Stainless Steel
• Application：Powder Coating
• Key Word：Extruder for Powder Coating Processing Equipment
• Transport Package：Stardard Export Package
• Specification：CE, SIRA, SGS, ISO9001: 2008
• Trademark：Yuanli
• Origin：Yantai, Shandong
• HS Code：84772090
• Production Capacity：120 Sets Per Year

Model
SFJ-46A or B
SFJ-55A or G
SFJ-64A or G
SFJ-80G
Screw diameter(mm)
46
55
64
80
Length-diameter(L/D)
14:1
16:1
15:1
15:1
Capacity(Kg/H)
100~180 or 100~280
300~400
400~500
600~800
Screw motor power(kw)
15, 6 or 22, 4
30
45
55
Feeding motor power(kw)
0.37
0.37
0.55
0.55
Heating power(kw)
0.75*4
0.75*6
1*5+0.75*1
2*5+1.5*1
Mixing motor power(kw)
-
0.37
0.37
0.37
Screw speed(rpm)
0~500/0~800
0~500
0~500
0~500
Temperature control system
±2°C Double temperature PID auto-control. Accuracy ±2
Speed adjust system
Adjustable speed by means of frequency inverter
Feeding system
Variable by means of frequency inverter
Cooling system
Water cooled
Equipped with
Screw feeding
Permanent strong-magnetic device
Overall dimension(mm)

2650*900*1900
2900*900*2000
3600*950*2260

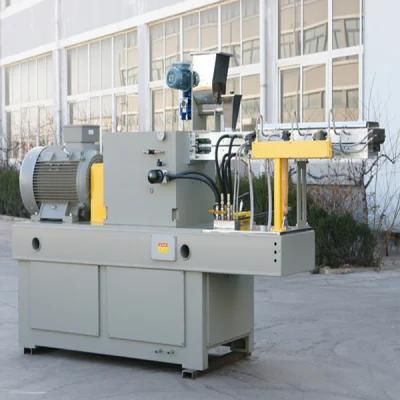

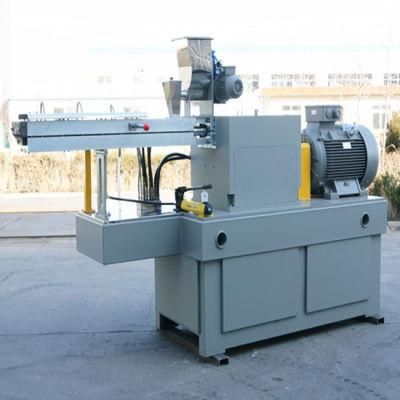

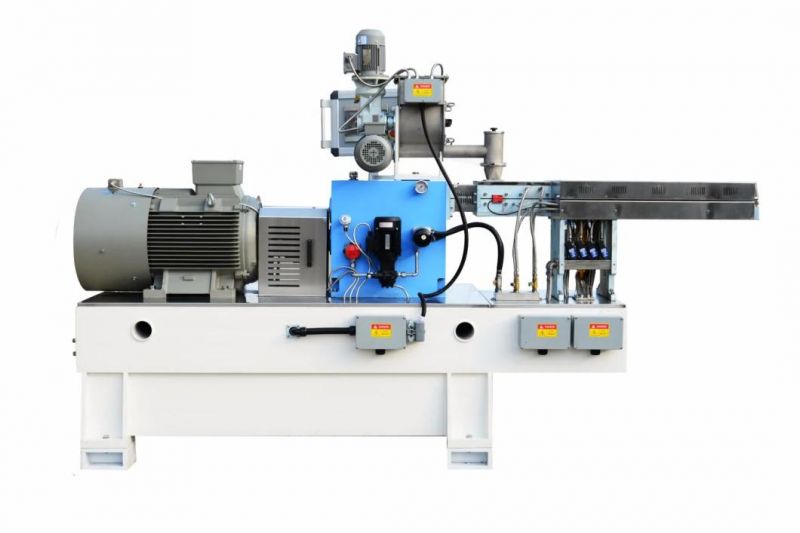

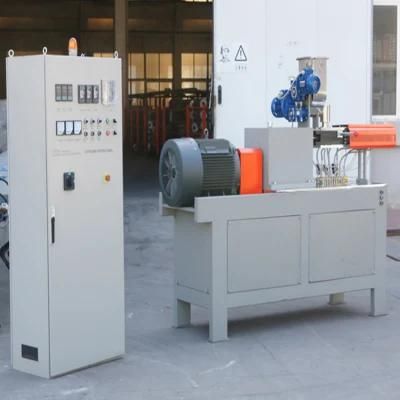

4. Machine Pic:








5. Company Profile:

Yantai Yuanli Machinery Manufacturing Co., Ltd. is a highly regarded, privately owned specialty powder coating machinery and raw material companies with headquarter in Yantai, China. We have a presence in over 15 countries and are a technology driven organization with an extensive staff of highly experienced R&D and technical service personnel in Asia, Europe and the Americas.

Yantai Yuanli Machinery Manufacturing Co., Ltd. with more than 27 years experiments, offer wide range of services in powder coating field from A to Z including know-how, technology, machinery, raw material, technical support.
Our product has been supplied all around China and exported to international market like, Italy, Iran, Turkey, India, Thailand, Egypt, Malaysia, Czech, Poland, Russia, USA.



6. Our Certificate:

CE Certificate
CE Certificate authorized by APRAGAZ Inspecting Authority from Belgium

Sira Certification Service
The Quality Management System of Yantai Yuanli Machinery Manufacturing Co., Ltd. has been assessed by Sira Certification Service and found to comply with GB/T19001-2008 idt ISO9001:2008 for the Design, manufacturer and sales of electrostatic power production equipment.



7. Our Advantage & Service:

-Technical Support Online Service Provided
According to customer's requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.

-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning

-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.

-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers' requirements. Ensure advanced craft, good material and high precision.

Formulation Provided (our advantage):
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.

8. Coating Show:

We attend the coating shows abroad, like Chinacoats, Eurpean Coating Show, PaintIndia, Middle East Coatings Show, Turkcoat and PaintIstanbul.













We sincerely welcome customers from all over the world come to visit and negotiation with us!
