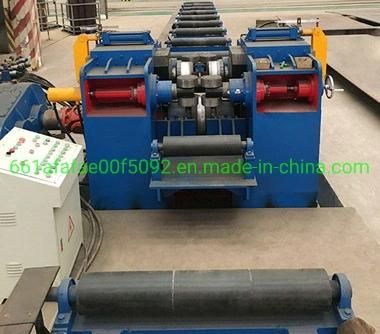

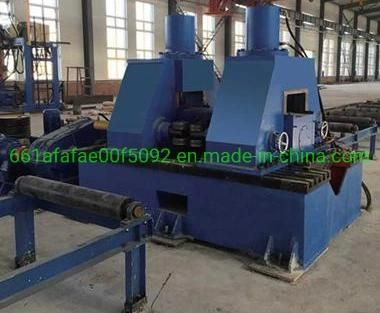

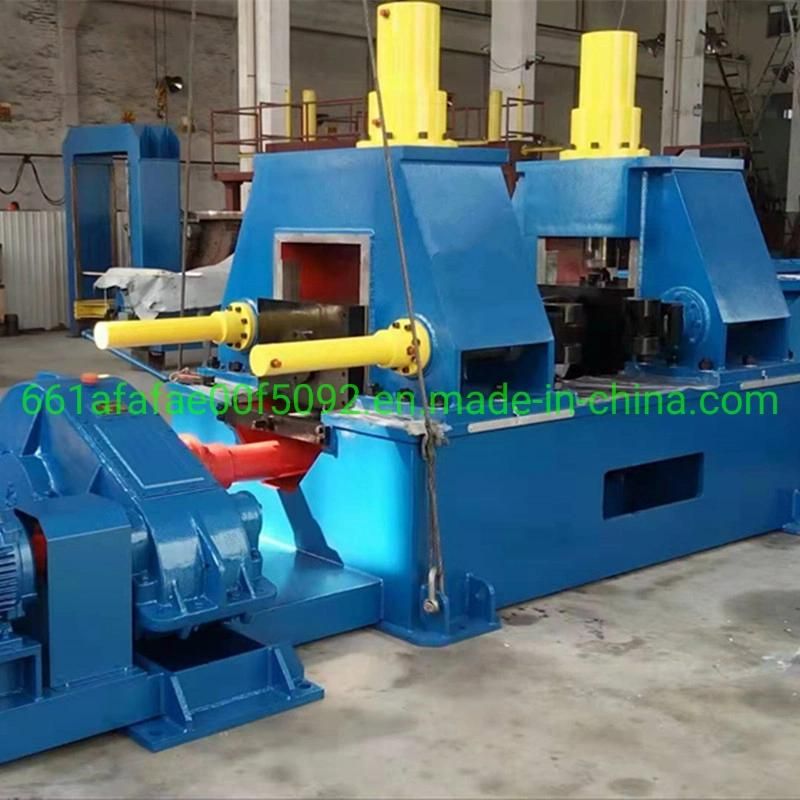

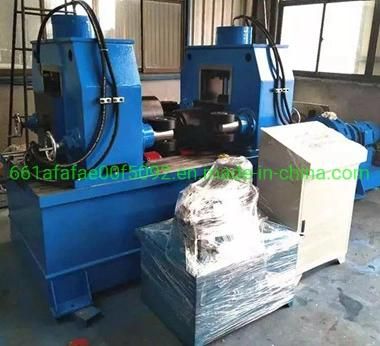

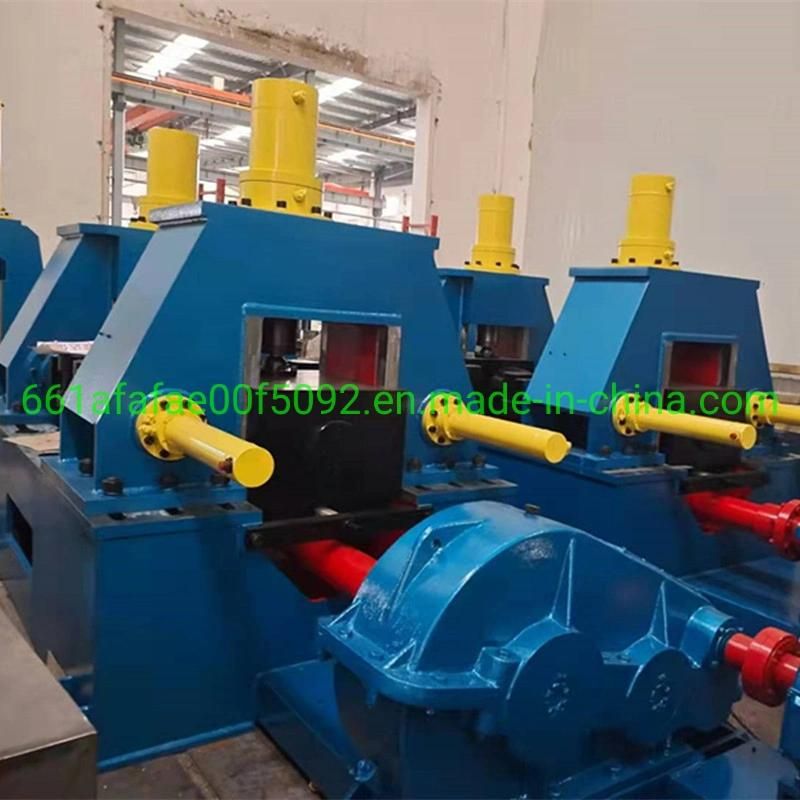

Hydraulic H Beam 60 mm 80 mm Thickness Flange Straightening Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Installation
- Usage：H Beam Flange
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Beam Deformation
- Certification：ISO9001, CE
Base Info
- Model NO.：JZJ-60
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Name：Heavy Beam Hydraulic Flange Straightening Machine
- Function：Beams Deformation Straightening
- Straightening Mode：Hydraulic
- Straightening Flange Thickness：60 mm,80 mm
- Flange Width：180-800 mm
- Web Height：No Less Than 350 mm
- Straightening Speed：6.4 M,Min
- Power：35 Kw
- Straightening Material：Carbon Steel Q 345 Q 235
- Beam Model：H Beam I Beam Straightening
- Delivery：30 Days
- Optional：H Beam Welding and Assembly Machine
- Pump Motor：15 Kw
- Drive Motor：22 Kw
- Work for：Correction of H-Beam After Heat Treatment

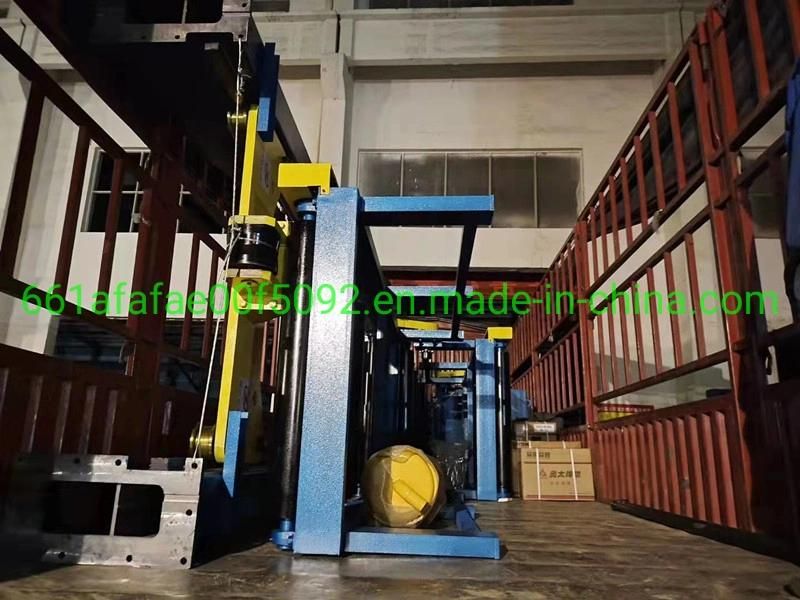

- Transport Package：Container Shipment
- Trademark：Lemar
- Origin：Jiangsu, China
- HS Code：8462291000
Description
The 60B/80B heavy steel hydraulic straightening machine produced by Lemar Machinery has been put into use in many domestic and foreign manufacturers and has achieved good economic benefits.
This machine is used to straight the surface deformation of the welding H-shaped steel flange plate during the welding process
The upper roller device of the heavy steel hydraulic straightening machine adopts the axle box structure, which has a large bearing capacity.
The adjustment distance is driven by a hydraulic cylinder, which is stable and reliable. The main cylinder adopts high-quality sealing ring, which has good sealing performance and long service life.
The adjustment of all movements of the H-shaped steel flange plate straightening machine is equipped with a ruler to ensure convenient and accurate use.
The pump station of H beam I beam flange straightening machine is equipped with a precision filter to ensure the long-term and reliable use of the solenoid valve.
The heat treatment process ensures that there will be no defects such as cracks in long-term use.
The active roller table on both sides adopts hydraulic lifting to prevent the H-shaped steel flange plate from damaging the roller table when it is separated from the roller table after being corrected by the hydraulic straightening machine, ensuring convenient operation.
Specification: Model Max flange thickness Drive motor Straightening Speed Straightening Material Pump motor Straightening Mode Flange Width JZJ-60/80B 60/80mm 15/22kw 6.4 M/Min Carbon Steel Q 345 Q 235 15KW Hydraulic 180-800 mm
Main motor
Reducer
Active roller

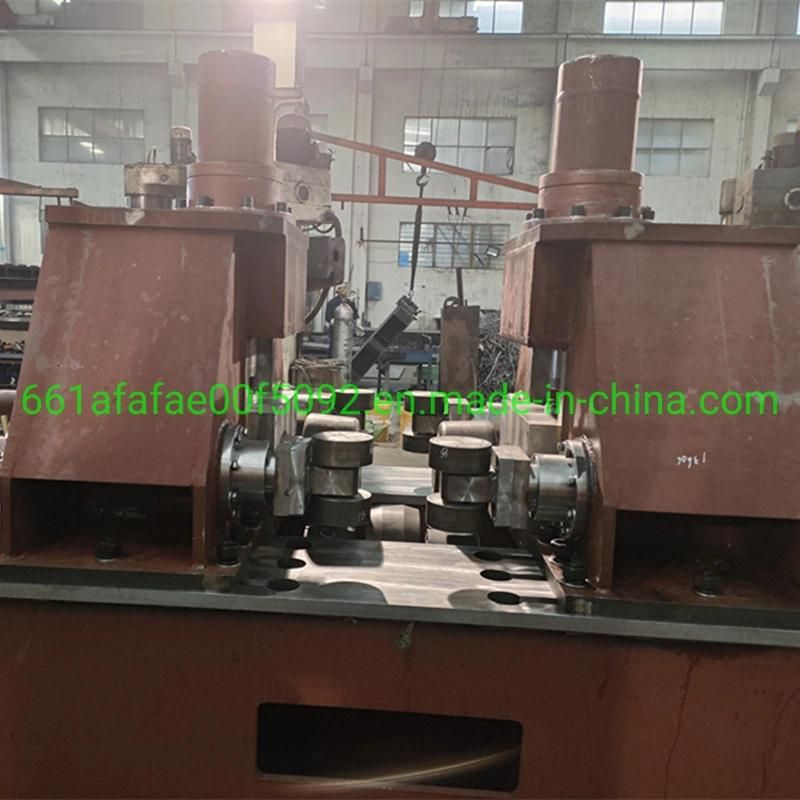

Correction roller device
Active roller lifting cylinder
Web and wing plate clamping device
Main Frame of Lemar H-shaped Steel Flange Plate Straightening Machine
Machine base
Front and back conveyor roller
Hydraulic system
Electrical system and other components.
The equipment has compact structure, high strength and sufficient rigidity.
The hydraulic pumping station is an independent system with external equipment, using Jiangsu products.
The driving wheel is made of forging and pressing, the material is 35CrMo, and the hardness is HRC50-55.
Lemar machinery Equipment Co.,Ltd is committed to H beam Production line machine (PEB H BEAM FABRICATION MACHINES),Auto assembly machine,Submerged welding gantry type machine,Flange straightening machine,End face milling machine,Sand shot blasting machine,
And vessel tank pipe wind power fabrication line,consists of: Seam welding machine,TIG/MIG/MAG Seam welding rotator,welding positioner,welding manipulator,Straight seam welding machine,Circular seam welding machine,etc.
Please kindly visit our website and send mail call us!
