80mm Flange Thickness Straightener Machine for H Beam I Beam Production
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Type：H Beam Flange Straightening Machine
- Usage：H Beam Flange
- Voltage：380V-440V
- Automatic Grade：Automatic
- Principle：Deformation After H Beam Welding
Base Info
- Model NO.：JZJ-80
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Function：Straightening for H Beam Flange Plate
- Straightening Mode：Hydraulic or Mechanical Type H Beam Straightener
- Max Flange Thickness：80mm
- H Beam Material：Q345,Q235
- Power：Customized
- Suitable for H Beam Length：12m
- Flange Width：200-1000mm

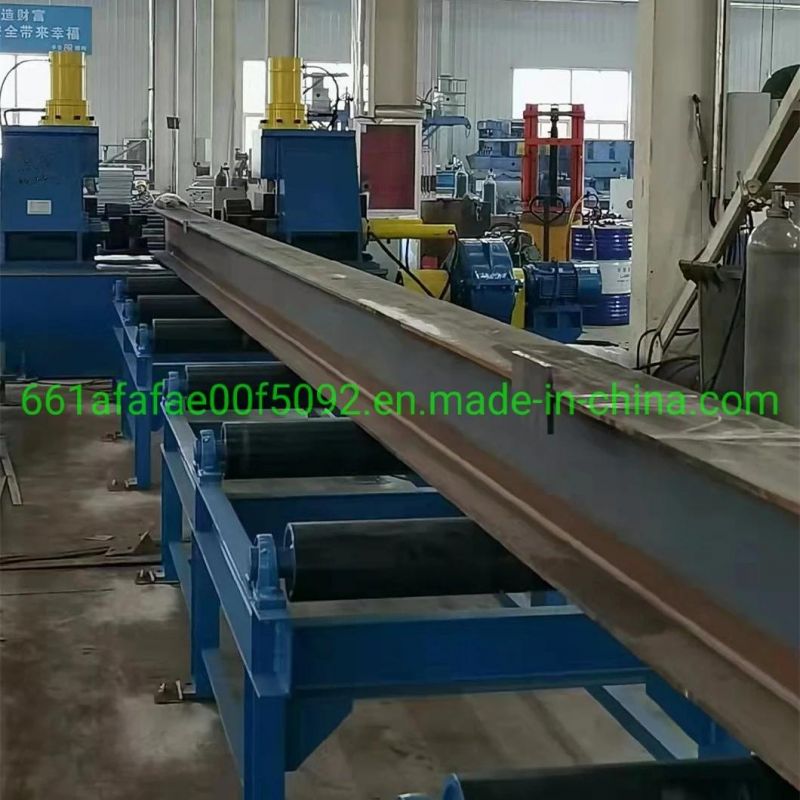

- Input Roller Length：9m
- Output Roller Length：9m
- Colour：Customized
- Roller Material：35CrMo
- Hydraulic Station：1 Set
- Roller Hardness：HRC50-55
- Straightening Wheel Speed：8.9m,Min
- Delivery：45 Days
- Transport Package：Nude
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8462291000
Description
Lemar Machine Machine introduction:
Lemar company produces and sells multi-head straight CNC cutting machine, CNC plasma flame cutting machine, H-beam assembly machine, H-beam gantry welding, H-beam flange straightening machine, shot blasting machine, tailor-welding straightening machine, welding roller rotator, Welding positioner, welding operation column and boom manipulator, longitudinal straighte seam welding machine and other products are widely used in boiler and pressure vessel, petrochemical, power station, heavy machinery, ship, steel structure construction and other industries, creating good use value for users and enhancing competitiveness.
Specification:

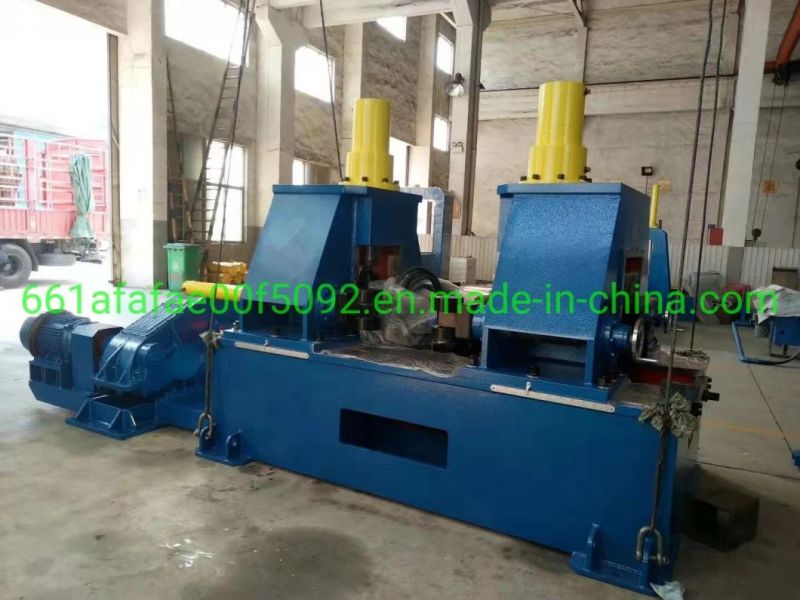

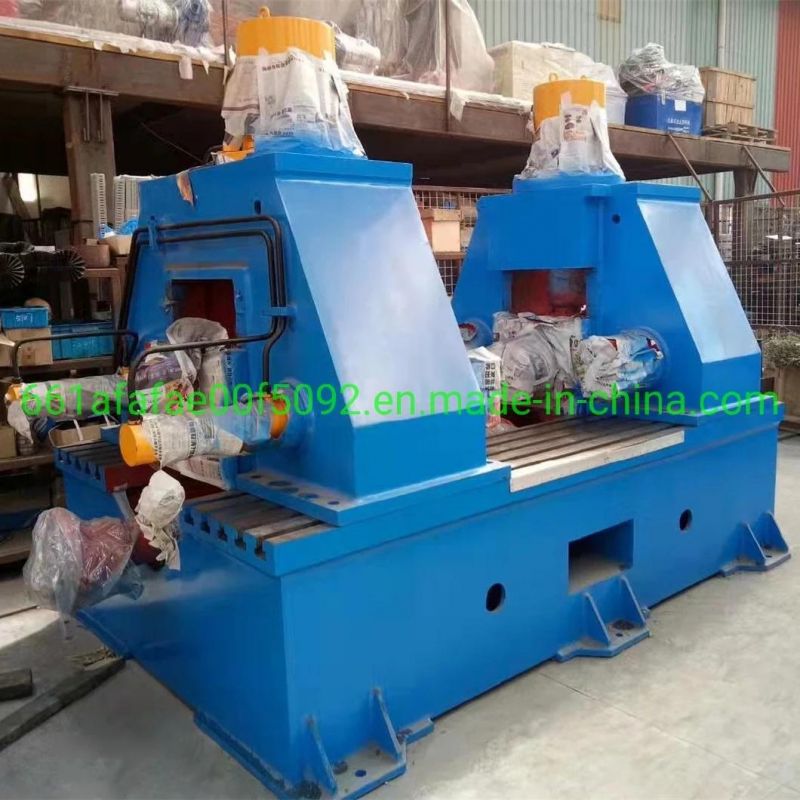

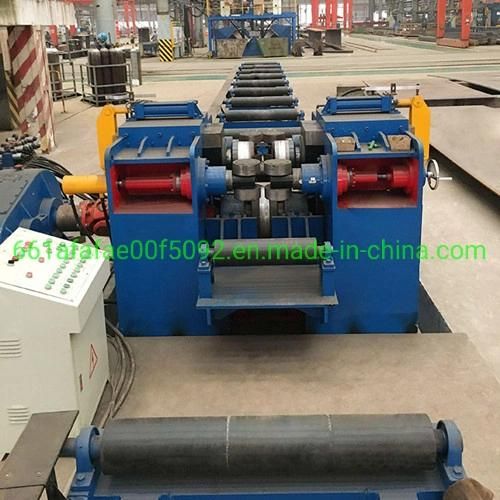

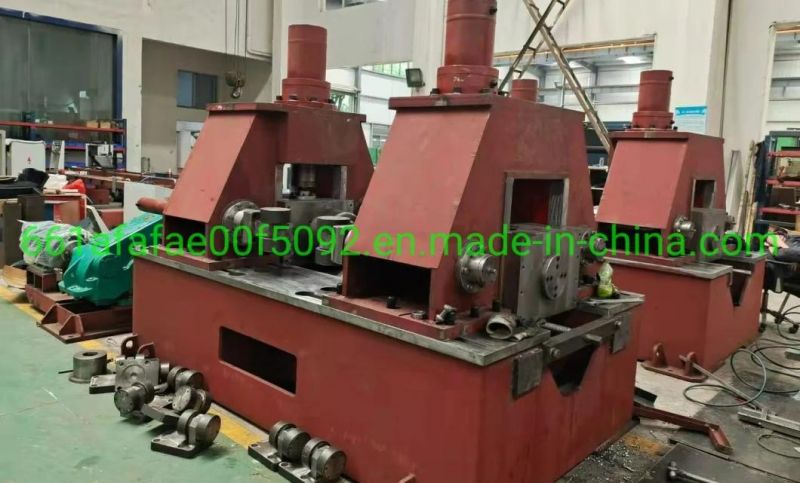

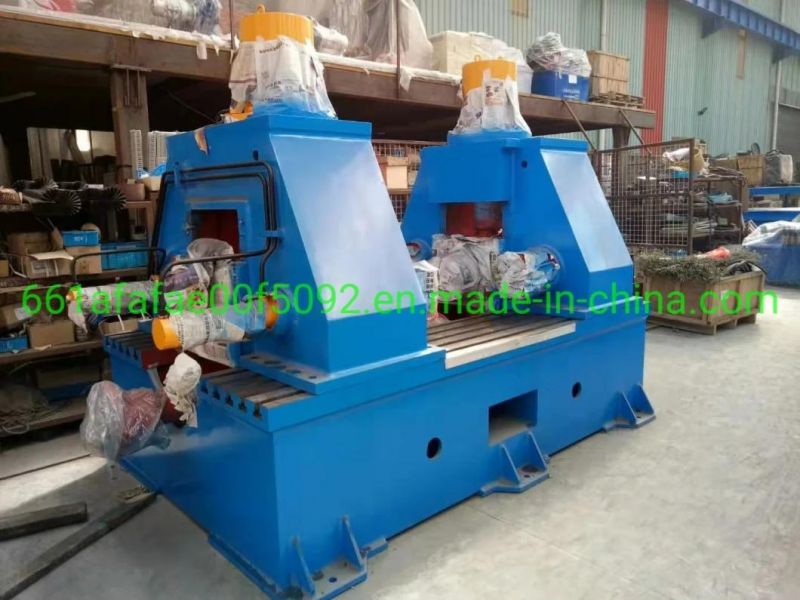

This H beam flange straightening machine is a special equipment for straightening the deformation of welded H-beam flange plates.
There are two major series of mechanical and hydraulic for users to choose.
All of our machines can be customized,welcome your h beam specification then choose suitable machine for you.Machine features:
1. The straightening wheel is made of solid bearing steel, ground and hard chrome-plated after high-frequency heat treatment. After being corrected by this machine, it is smooth and smooth without indentation, and does not damage the surface of the material
2. H-beam T-beam flange plate straightening machine can be used alone, and can be used together with gantry type submerged arc welding machine, automatic assembly machine and end face washing machine to complete the work of H-beam automatic production line.

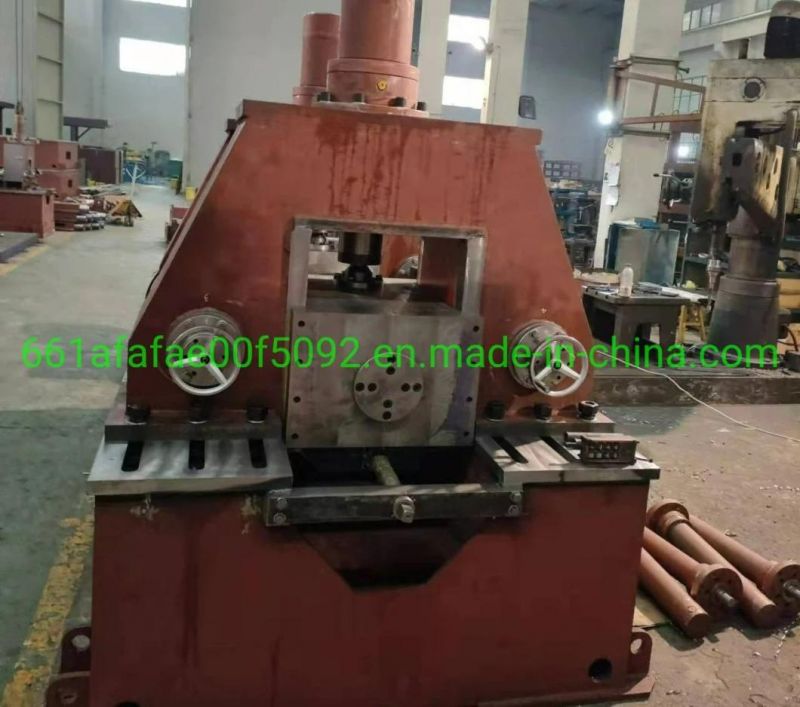

3. The hydraulic H-shaped steel flange plate straightening machine adopts a large cylinder to press the material, and the straightening adjustment adopts synchronous worm gear and worm adjustment. When the handle is rotated once, the correction upper wheel only drops 1mm, which can be finely adjusted
4. High rigidity mechanical structure, high horsepower output. It can be used for high-speed and stable feeding, improving production efficiency and extending the service life of equipment.
Maintenance:
1. Always check the joints of various moving parts and fixing parts, and do a good job of fastening.
2. The H-beam flange plate mechanical or hydraulic straightening machine can only correct the flange plate welding deformation of the H-beam plate, but cannot correct the verticality of the web and the flange plate and the straightness of the H-beam steel.
3. During the operation of the H beam I beam steel structure flange straightening machine, the pressing device must not be started.
4. During the working process, no one should stand at the inlet and outlet to avoid the impact of H-beam.
5. The lifting and turning process of the work cannot be carried out on the track, so as to avoid the workpiece slipping and damaging the equipment.
6. The oil should be changed after the first use of the cycloid reducer for one month. It will be replaced every six months thereafter.
FAQ:
1. How to choose hydraulic type and mechanical type for H-beam flange plate straightening machine?
We can customize the H-beam flange plate straightening machine for you according to the size requirements of the H-beam.
Generally, the mechanical H-beam T-beam straightening machine is suitable for the thickness of the flange plate <=40mm, and the hydraulic steel structure straightening machine is suitable for the thickness of the flange plate 40mm~80mm.
2. In addition to the flange plate straightening machine, what other equipment is required for the production of H-beam and box-beam production lines?
The type of equipment and the quantity purchased need to be based on the layout of your company's on-site factory. Before purchasing the machine, we recommend that the customer send us the factory layout plan for design.
A complete H-beam box beam production line includes:

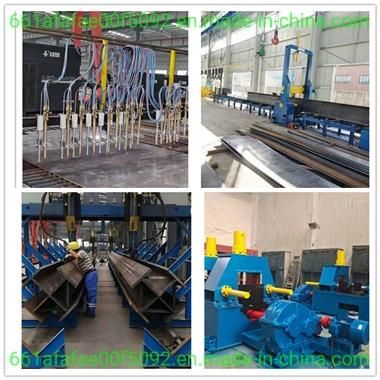

CNC Plasma Flame cutting machine-Automatic assembly machine with gas shield welder-Gantry type Submerged arc or gas shield welding machine-H beam flange straightener-End face milling machine.
If for Box beam production need Electroslag welding machine, Box beam assembly machine and spot welding machine, etc.
3. How to provide installation service?
Under normal circumstances, we will arrange engineers to go to your factory for on-site installation guidance. But for now, due to the global virus outbreak, we currently offer installation instruction manuals, as well as online video instructions. These installation manuals have been able to ensure that customers can successfully complete the installation and commissioning of the machine
4. How to visit your company?
We can pick you up from Shanghai Pudong International Airport, Hongqiao International Airport or Wuxi Airport. Or Wuxi Railway Station.
5. What should I do if the machine is broken?
The warranty period for our machines is 12 months. If the damaged parts cannot be repaired, we can send new parts to replace the damaged parts, but you need to pay for the courier yourself. After the warranty period, we can negotiate and provide technical support for the entire life cycle of the equipment.
6. Can you be responsible for shipping?
Yes, please tell us the port of destination or address. We have rich experience in transportation. FOB, CIF or EXW will do price calculation according to your needs.
7. Do you provide OEM service?
Of course, we can design equipment based on the structural section data you provide. We are a professional designer and manufacturer of H-beam production line equipment and automatic pipe welding equipment.
