• Model NO.：(YX3.5-1140)
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Place of Origin：Fujian, China (Mainland)
• Brand Name：Xhh
• Model Number：Yx3.5-1140
• Motor Power：2.2kw
• Hydraulic Power：3.7kw
• Transport Package：Standard Package for Export
• Trademark：XHH
• Origin：Xiamen of China
• HS Code：84552290
• Production Capacity：22 Sets,Months

Basic Info.

Model NO. (YX3.5-1140) Customized Customized Advantage Easy to Maintenance Condition New Place of Origin Fujian, China (Mainland) Brand Name Xhh Model Number Yx3.5-1140 Motor Power 2.2kw Hydraulic Power 3.7kw Transport Package Standard Package for Export Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 22 Sets/Months

Product Description

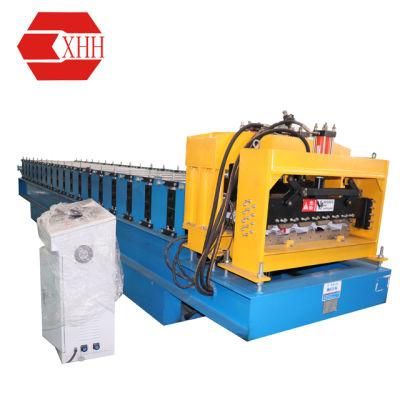

YX3.5-1140 Roll Forming Machine For Siding Panel Detailed Informations are as follows:

(1)Working Speed: 8-14m/min;
(2)Forming Steps: 8;
(3)Height of Rooofing: 3.5mm;
(4)Effective Width: 253mm, 504mm, 1140mm.

Main Accessories:
(1). Main Forming Machine for Siding Panel;
(2). 5 Tons Manual Uncoiler for Coil Width 1300mm;
(3). Hydraulic System;
(4). PLC Computer Controlling System with Touch Screen (Brand: Delta from Taiwan);

(5). Punching Hole Device;
(6). Hydraulic Forming Cutter;
(7). Run out tables(3 PCS);
(8). Operation Manual.

1.	Size	4000*1400*1400mm
2.	Weight	2000KGS
3.	Motor Power	2.2KW
4.	Hydraulic Power	3.7KW
5.	Voltage	220V/60HZ/3PH
6.	Forming Steps	8
7.	Working Speed	8-14m/min
8.	Height of Roofing	3.5mm
9.	Effective Width	253mm,504mm,1140mm
10.	Material Width	300mm and 305 for YX3.5-253,600mm and 610mm for YX3.5-504,1200mm and 1220 for YX3.5-1140
11.	Thickness for common use and test machine	0.3mm or 0.4mm(material:prepainted galvalume 275-300Mpa)
12.	Tolerance	±2mm
13.	Roller material	high grade 45# forged steel,Plated hard chrome on the surface of rollers,polished all the rollers
14.	Material of principal axis	high grade 45# forged steel
15.	Sprocket wheel	45 steel high-frequencies quench
