• Model NO.：as the drawing
• Application Range：Continuous Rolling Mill,Mpm,Fqm,Pqf
• Transport Package：Woodern Case
• Specification：max 20m, Diameter 100mm-500mm
• Trademark：FANGLE
• Origin：China
• Production Capacity：50000tons,Year

Basic Info.

Model NO. as the drawing Application Range Continuous Rolling Mill,Mpm,Fqm,Pqf Transport Package Woodern Case Specification max 20m, Diameter 100mm-500mm Trademark FANGLE Origin China Production Capacity 50000tons/Year

Product Description

Mandrel Bar for multi-stand plug mill tool

Description
MPM & PQF mandrel bars are also named retained mandrels.Mandrel bars are the key parts during the production of Seamless Tubes and Pipes. Once the billet has been pierced, the Mandrel Bar supports the tube  internally during elongation and wall thickness reduction.
The Mandrel bar is the important tool for multi-stand pipe mill process,which is also called Mannesmann plug mill process or multi-stand plug mill.The mandrel bar is used to roll a pre-pierced steel billet to produce a tube blank (the preliminary seamless tube).
The multi-stand plug mill (MPM) with controlled (constrained) floating mandrel bar and the plug mill process in the size range from approx. 140 to 406 mm outside diameter.

Production process:
1) forging
2) rough machining
3) magnetic test
4) heating treatment
5) ultrasonic test
6) finish machining
7) chromium plating
8) thread phosphating
9) package

Production parameters

Materials	AISI H13, X35CrMo V51 ,4CrMoSi V1 etc.
Diameter	80-600mm
Length	max to 20,000mm
Hardness	Meet the customers' requirements
Surface Processing	Chrome plating
Application	MPM, PQF and FQM mills,Assel Mills,Accu-roll mill, Push Bench, Pilger mill etc
Threading	Available, phosphating
Chrome plating	As per requirement,thickness 0.045-0.065mm
Process	EBT + LF (VD) + ESR
Property tests	Magnetic testing,Ultrasonic testing etc.
Lead time	about 45 days
Delivery condition	Finish machining
Market	India,Saudi Arab,Russia,Slovenia,Thailand,Vietnam etc.

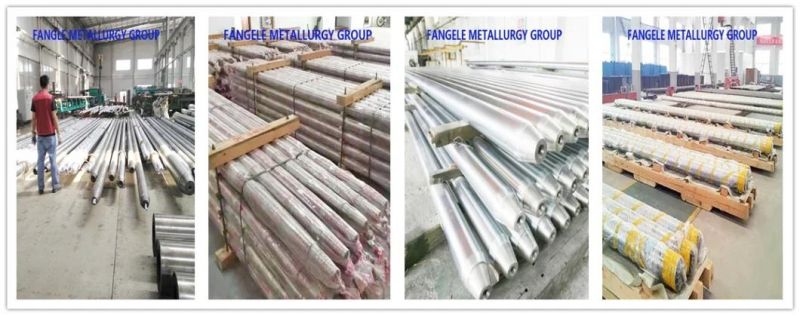

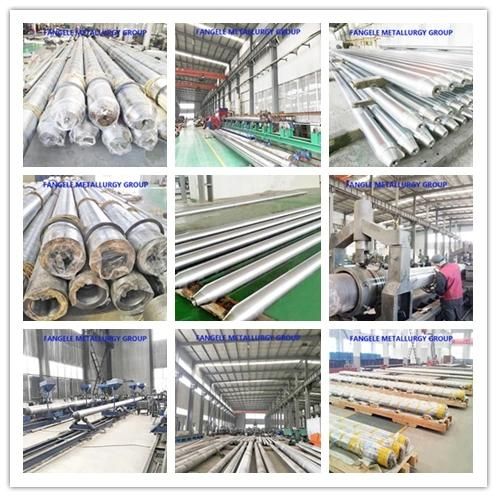

 Mandrel products show

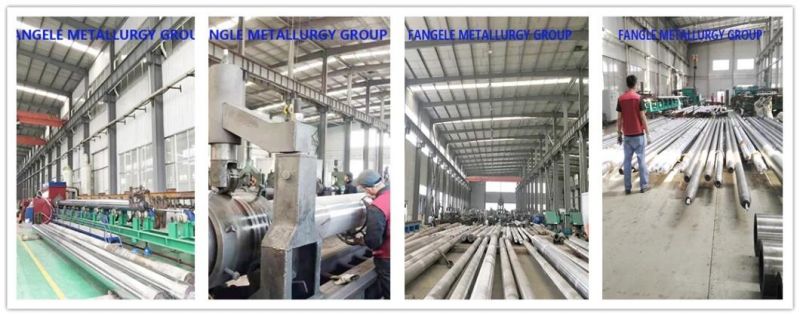

 Mandrel Workshop show



Package &Delivery

Customer Visit
