• Model NO.：SKM-6060
• Certification：CE, Customized
• Warranty：24 Months
• Customized：Customized
• Condition：New
• Table Structure：Cast Iron
• Cooling Mode：Water Cooling
• Spindle Power：2.2kw Water Cooling
• Controller：DSP A11 Controller
• Transport Package：Wooden Box
• Specification：600*900*150mm
• Trademark：senke
• Origin：China
• HS Code：8465990000
• Production Capacity：200 Set,Month

Basic Info.

Model NO. SKM-6060 Certification CE, Customized Warranty 24 Months Customized Customized Condition New Table Structure Cast Iron Cooling Mode Water Cooling Spindle Power 2.2kw Water Cooling Controller DSP A11 Controller Transport Package Wooden Box Specification 600*900*150mm Trademark senke Origin China HS Code 8465990000 Production Capacity 200 Set/Month

Product Description

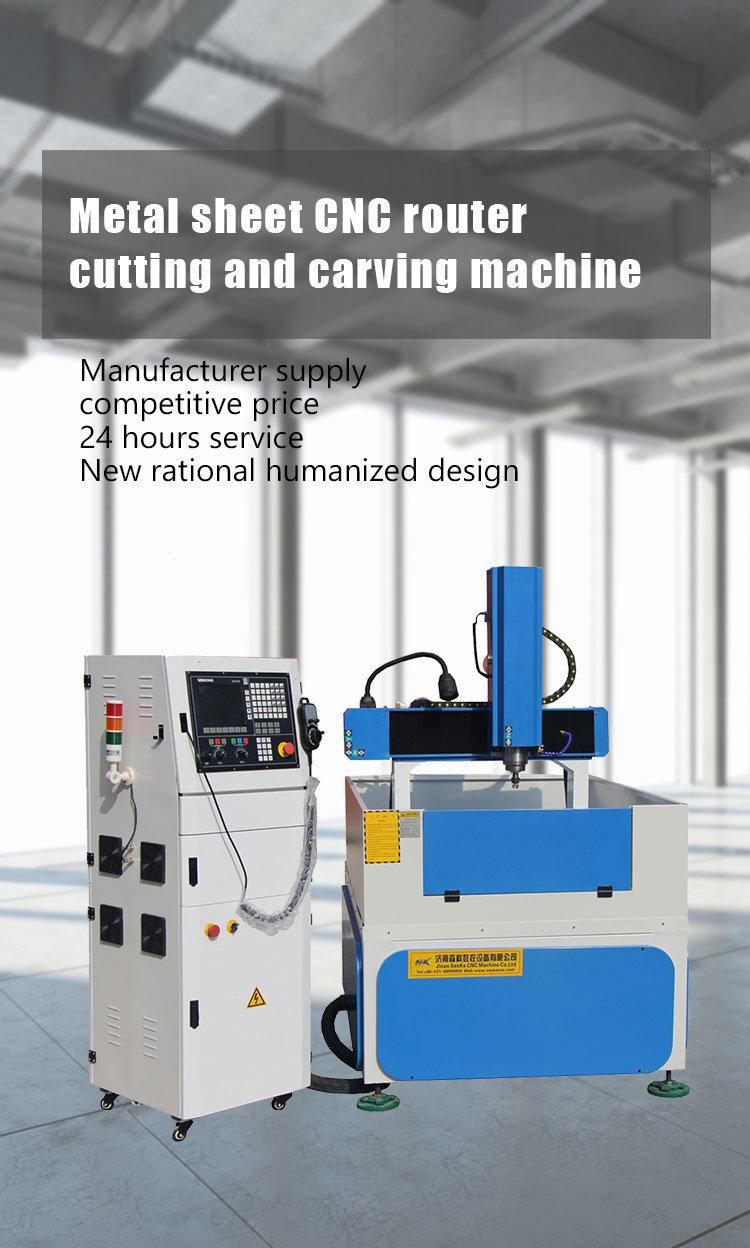

CNC Metal Engraving Milling Machine 6060 with Half Cover

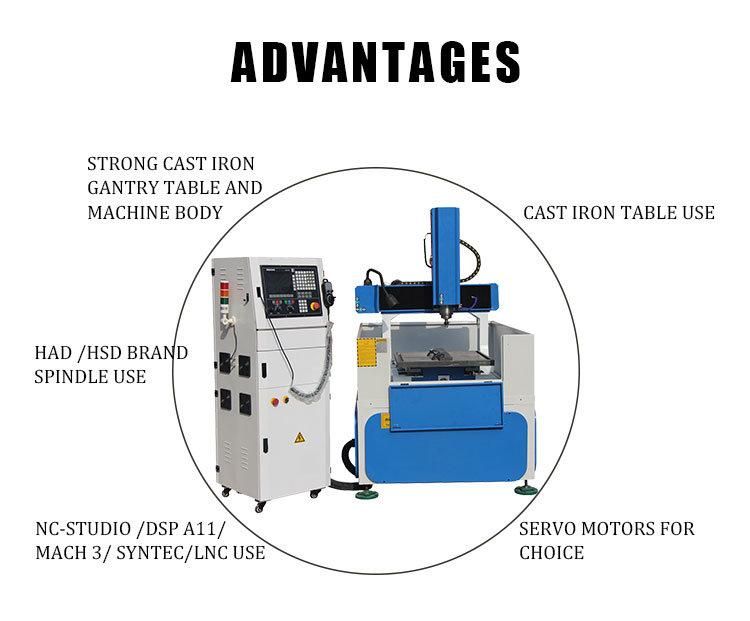

Features:

1.Integrally cast lathe bed,solid and stable,high rigidity and long service time.

2. Imported high accuracy ball screw ensures more stable movement and high accuracy.

3. Aluminum decorated appearance,beautiful shape and magnificent looking.

4. Water-cooling brushless spindle/ air cooling spindle,low noise,vigorous cutting strength and long time mass processing.

Technical parameters:

Model	SKM-4040	SKM-6060	SKM-6090
Working Area	400*400MM	600*600MM	600*900MM
Table Surface	Cast iron T-slot table with water tank	Cast iron T-slot table with water tank	Cast iron T-slot table with water tank
Frame	Strong Cast Iron	Strong Cast Iron	Strong Cast Iron
X Y Structure	Ball Screw Drive, HIWIN Rail Linear Bearings	Ball Screw Drive, HIWIN Rail Linear Bearings	Ball Screw Drive, HIWIN Rail Linear Bearings
Z Structure	Taiwan Original TBI Ball Screw	Taiwan Original TBI Ball Screw	Taiwan Original TBI Ball Screw
Spindle Power	2.2KW	2.2KW	2.2KW
Spindle Speed	0-24000RPM	0-24000RPM	0-24000RPM

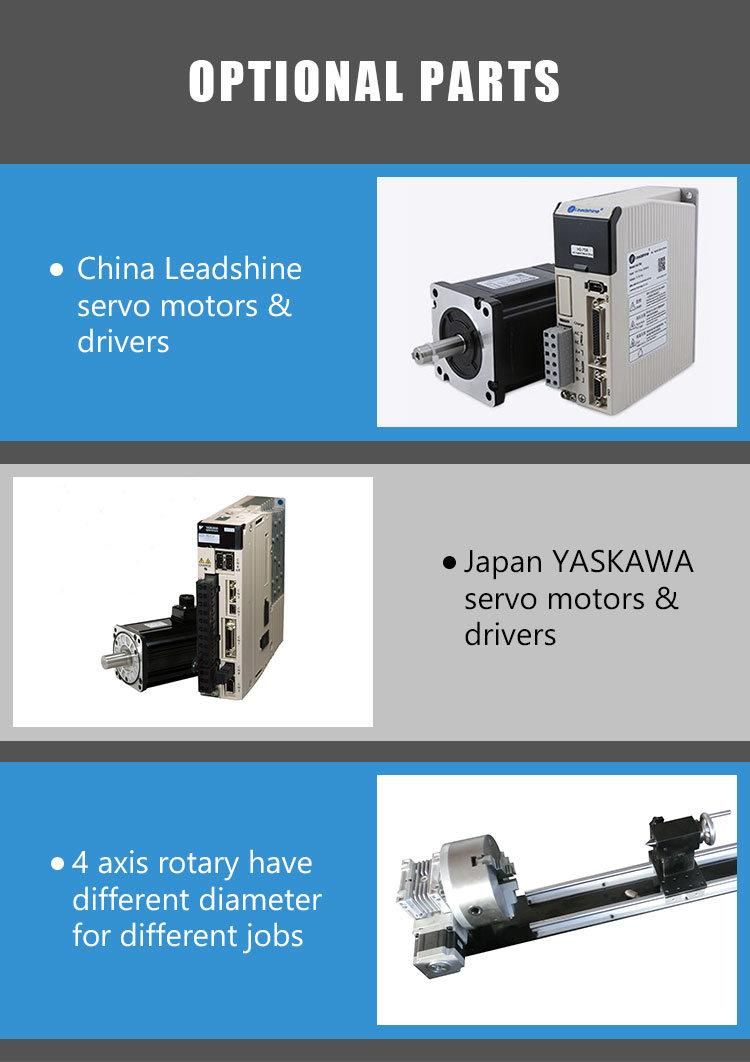

Diver Motors	Stepper (Servo Motor Optional)	Stepper (Servo Motor Optional)	Stepper (Servo Motor Optional)
Working voltage	380V/415V 3 Phase 50/60Hz	380V/415V 3 Phase 50/60Hz	380V/415V 3 Phase 50/60Hz)





FAQ:
1. I am not sure if this machine suitable for my work?
-Do not worry, just tell us your working materials, Max working area and engraving cutting thickness, then we will recommend you the most suitable machine and Quotation for you
-We can free engraving sample for you

2. I am worrying about the operation of you machine?
-Do not worry, We will test and installed the machine before delivery. When you receive the machine you can use it directly. We offer free software installation video. if there anything wrong with machine within the guarantee time, we will change a new one for you.

3.How do I pay?
-We support online or offline payments. We mainly use TT (bank transfer )and credit card payment, of course, we can also use other payment methods that are convenient for you.

4.How much will it cost shipping to my country?
 Sea shipping: need to tell me your destination port

5.What is your delivery time?
-We need to spend 10-13 working days to produce this machine and parameter test.

6.What is your guarantee?
-The machine we supply two years warranty.

7.What style do you have?
-We have full cover model, half cover model,table move body, gantry move body etc. .
