• Model NO.：remax 8090 cnc
• Condition：New
• Voltage：AC220V,380V,
• Motor Type：Servo Motor
• Positioning Accuracy (mm)：0.02 mm
• Spindle Motor Power(Kw)：3.0,5.5kw
• Max Travel Speed：18m,Min
• Dimension(L*W*H)：2270*2270*1900
• Control System：Nc Studio, Syntec, Mach3, DSP,
• Spindle Power：3.0 Kw,5.5kw Water Cooling Spindle
• Frame：Cast by Iron
• Transport Package：Export Standard Wood Package
• Specification：800*900mm
• Trademark：Remax
• Origin：China
• HS Code：8465990000
• Production Capacity：200 Set,Month

Overview Product ParametersXYZ working area800*900*200mmXYZ accuracy0.02mmXYZ Repositioning Accuracy0.02mmTable SurfaceT-slot TableFrameCast by ironXYZ StructureHIWIN square guide rail and Ball screwMax, Power Consumption(without spindle) 3kwMax. Rapid Travel rate18000mm/minMax working speed10000mm/minSpindle power3.0kw/5.5kw water cooling spindleSpindle speed0-24000rpmDriver and motorsLeadshine Servo Motor and driverWorking voltageAC220V/380V, PH3, 50/60HZCommand languageG codeControl systemDSP / NCstudio /Mach3SoftwareType3 / Artcam /UcancameV9

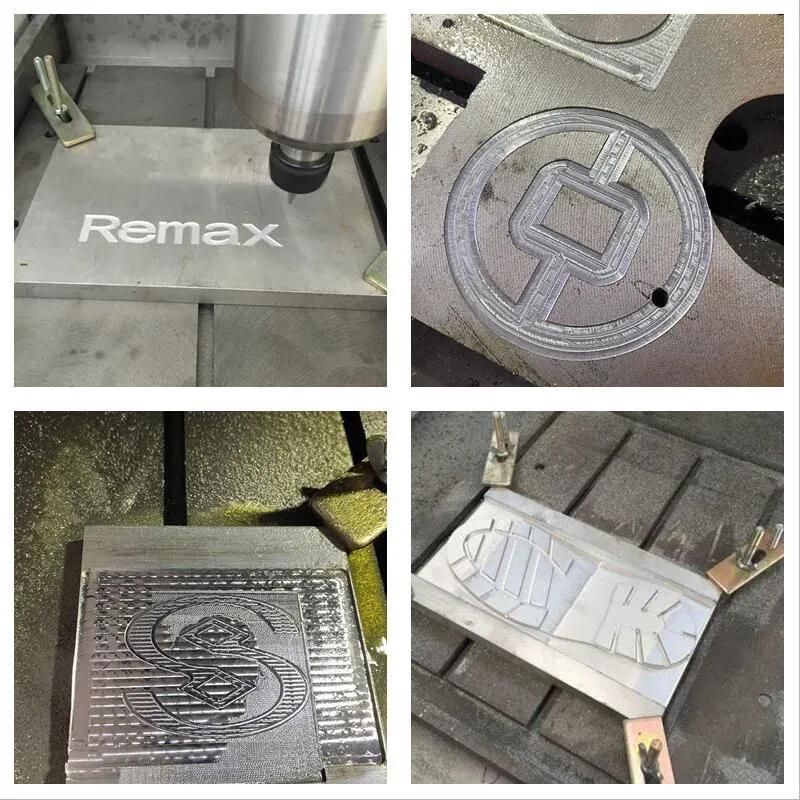

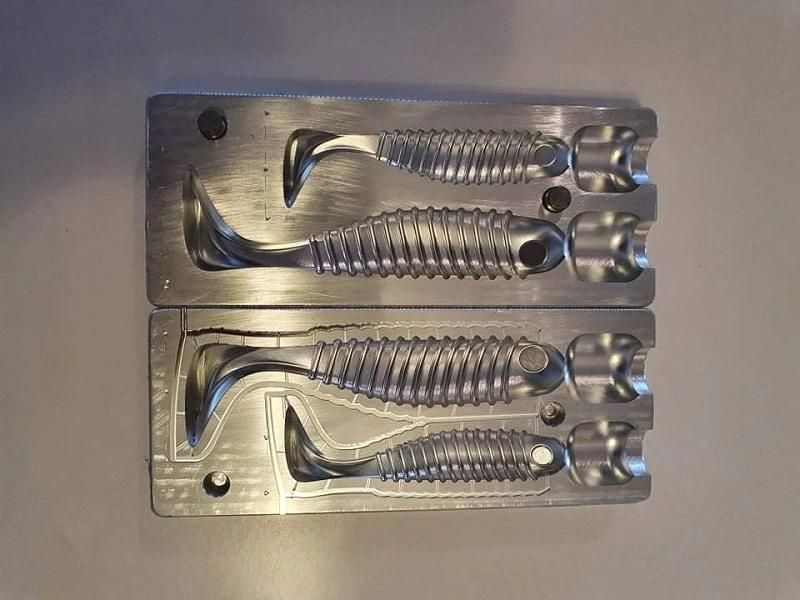

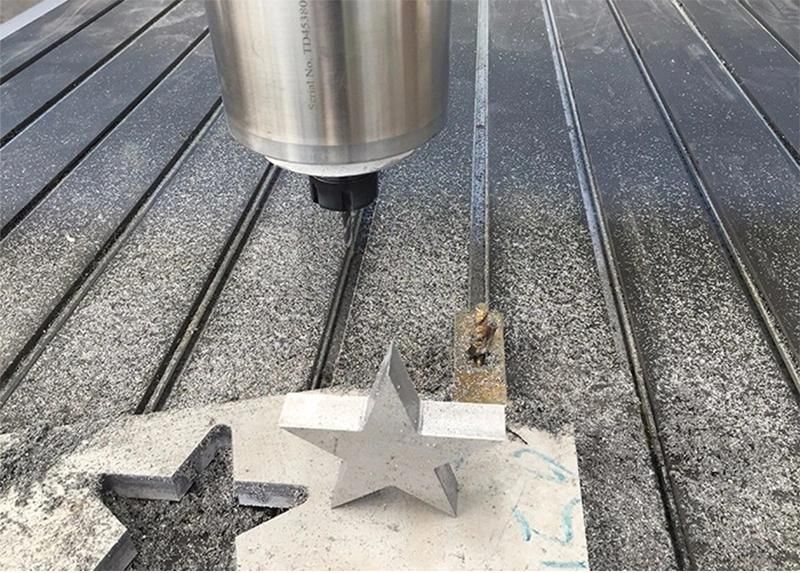

SAMPLE

Certifications

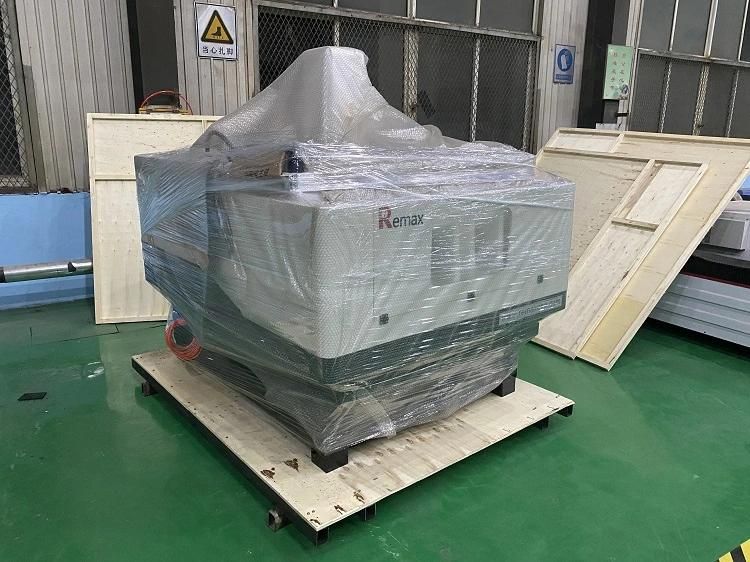

Packaging & Shipping

Company Profile

FAQ

Q1.Manufacturer or trader?
We are CNC ROUTER machine factory. We can supply best factory price.

Q2.Deliver time of cnc router machine?
For standard size and configuration CNC router machine, the delivery time is about 15-20 days,
For 4 axis and 5 axis series machine, the delivery time is about 20-25 days.
Thus, to arrange machine delivery immediately, it is better to make a 100% payment.

Q3.Can you send cnc router machine to my home?
Yes. The shipping agent we have long time cooperation is famous in China, and they can offer affordable FCA, FOB, CIF, DDU, DDP price. If your receiver address is Business District, the truck for deliver would be a small one.
