• Model NO.：ZYYX
• Working Speed：20m,Min
• Controlling System：Mitsubishi PLC & Converter
• Machines Size：About 8*1.6*1.5m
• Operation Language：English or as Per Client`S Required

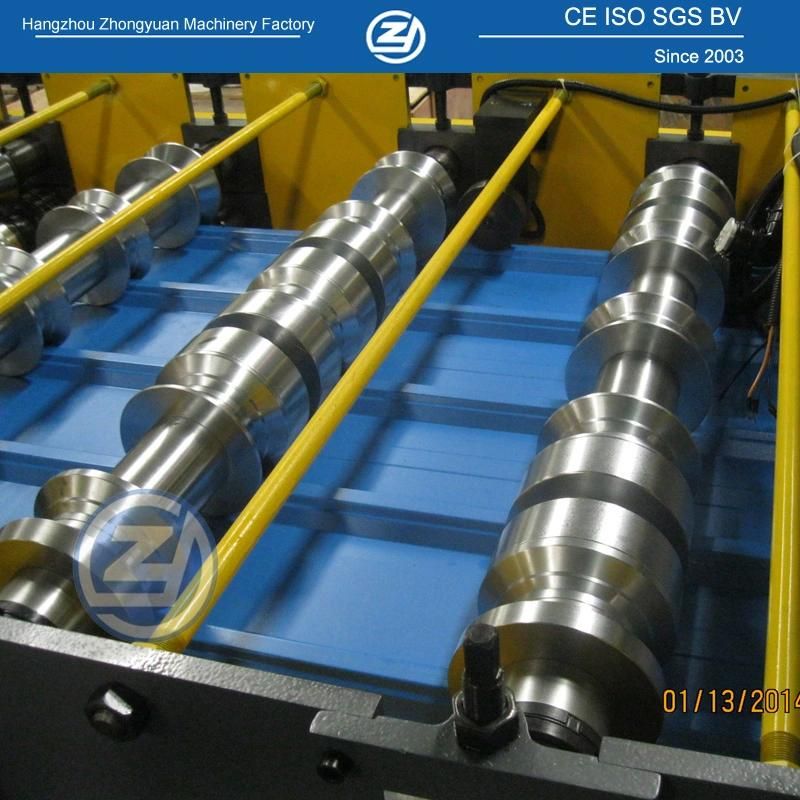

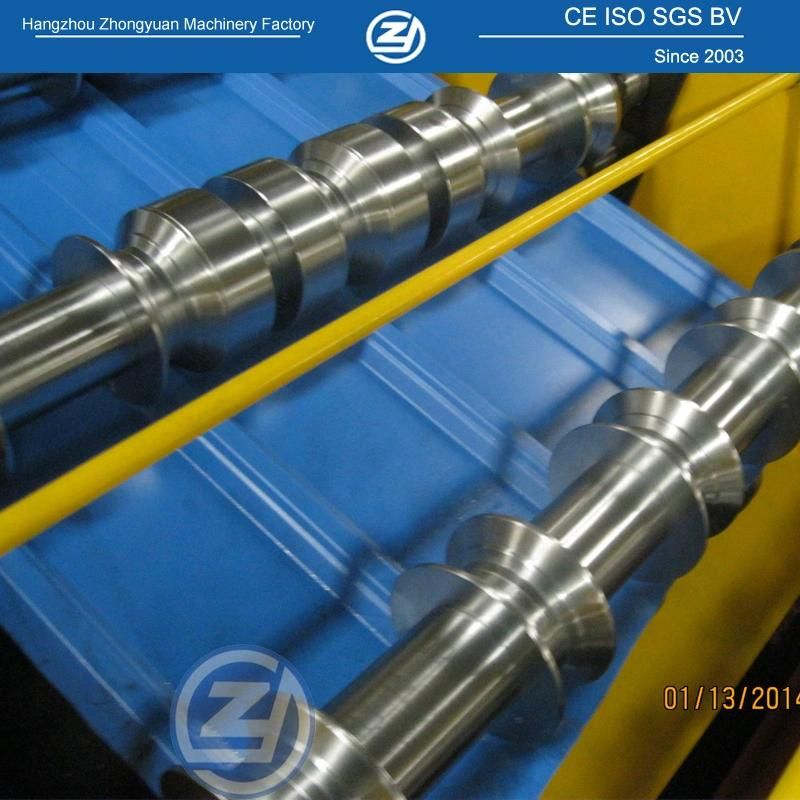

• Rollers Material：No.45 Forged Steel with Hard Chrome
• Cutter Material：Cr12 Mould Steel with Quench Treatment

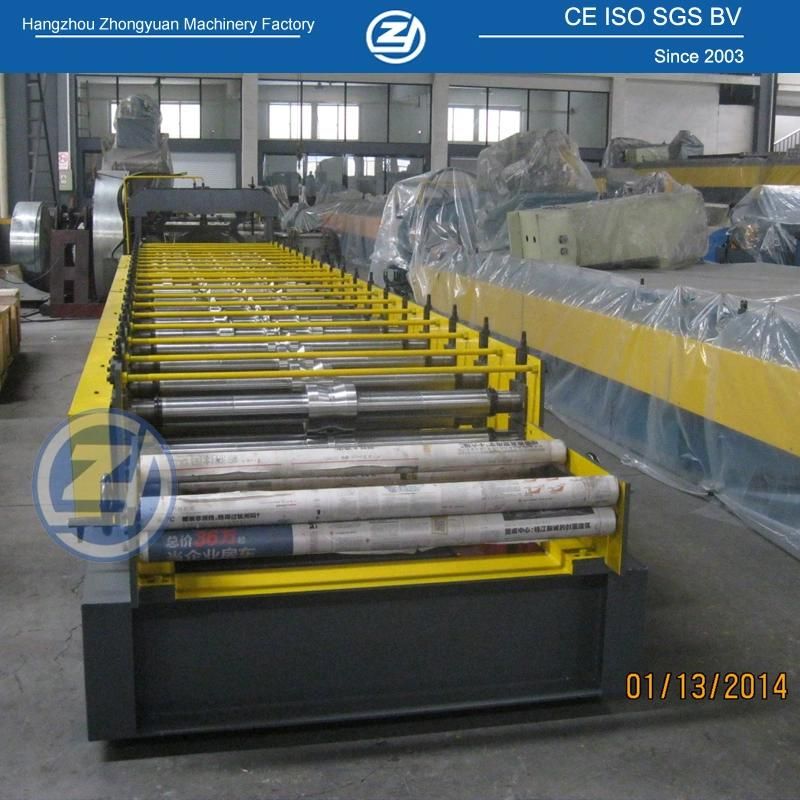

• Machine Type：Metal Roller Machine
• Transport Package：1*40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10 Sets,Month

ItemSpecification
MaterialTypePlate steelThickness(mm)0.3-0.8Yield strength(mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 20-25Output speed(m/min)8-10Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWHydraulic power2.2KWMachine sizeAbout 8*1.6*1.5mMachine weightAbout  8 tons

 Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table 1set

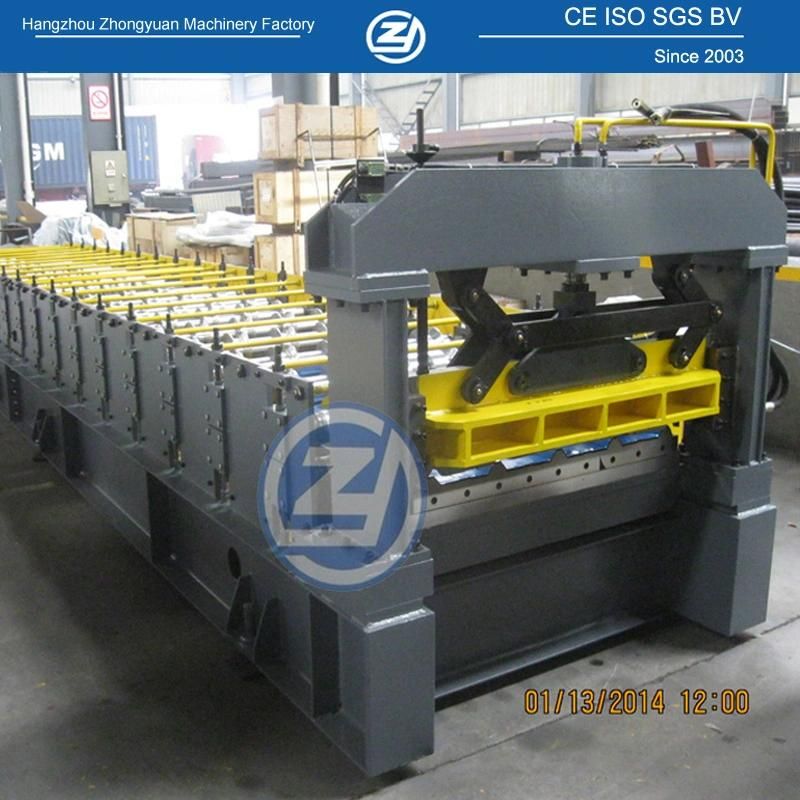

3. Process flow of roof corrugated metal sheet forming machine
 Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table

4. Controller:
We choose Mitsubishi PLC from Japan.
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!








5. About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

    Capacity: 12-15 sets/month
    Delivery: in only 5-8 weeks for urgent order
    Have our own tool center. 12 sets CNC machines.
    Over the past 10 years, our R&D members dedicated in make better machines.


Get Free:
profile drawing & machine design technical support by our 15 year experience technicians!
