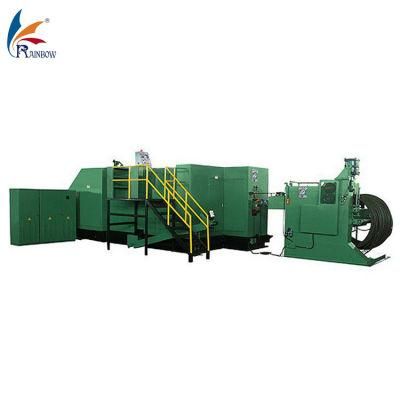

Automatic Bolt Maker
HARBIN RAINBOW TECHNOLOGY CO., LTD.- After-sales Service：Provided
- Type：Forging Operation
- Forging Forming Method：Cold Forging
- Power Source：Electric
- Feature：Automation
- Certification：CE
Base Info
- Model NO.：Rainbow
- Warranty：12 Months
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Transport Package：Seaworthy Packing
- Specification：4 stations
- Trademark：Rainbow
- Origin：Jiangsu
- Production Capacity：100 Sets,Year
Description
FORGING STATIONNo. 4 4 4 4 4 4 4 FORGING FORCE kgs 120,000 210,000 210,000 350,000 350,000 430,000 430,000 MAX. CUT-OFF DIA. mm φ15 φ18 φ18 φ23 φ23 φ26 φ30 MAX. CUT-OFF LENGTH mm 310 220 380 240 360 270 340 OUTPUT pcs/min 45 - 70 60 - 100 40 - 60 50 - 85 40 - 60 40 - 60 35 - 50 MAX. P.K.O LENGTH mm 30 30 46 46 46 40 46 DIE KICK OUT LENGTH mm 280 170 320 220 325 175 280 MAIN MOTOR kw 37 45 55 75 75 110 110 CUT-OFF QUILL mm φ 55*70L φ 60*90L φ 64*100L φ 75*120L φ 75*120L φ 80*130L φ 99*150L PUNCH SIZE mm φ 60*229L φ 75*185L φ 75*185L φ 90*215L φ 90*215L φ 120*270L φ 120*270L DIE SIZE mm φ 86*305L φ 100*190L φ 100*345L φ 125*240L φ 125*345L φ 140*250L φ 148*300L DIE PITCH mm 110 120 120 140 140 160 160 APPROX. WEIGHT kgs 38,000 43,000 60,000 62,000 75,000 105,000 131,000 DIA. OF PRODUCTION mm 8 - 12.7 10 - 16 10 - 16 12 - 20 12 - 20 14 - 25.4 16 - 25.4 LENGTH OF PRODUCTION mm 50 - 250 16 - 150 80 - 300 20 - 202 100 - 305 30 - 160 50 - 252
