Product Description

Application Scope

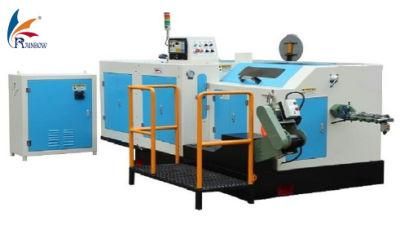

Automatic multi-station Cold Bolt Former is a specialized machine tool with high efficiency and automation among forging machinery. Cold forging technique and automatic cold forging formers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. Because of the advantage of the cold forging equipment itself and the superiority of cold forging technique, the formers also are widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.


Salient Features

Being equipped with air clutch with the advantage of low actuating current for operating the former in 3 modes such as inching, Single Stroke and Continuous Running, the main ram can stop at its rear position automatically, when the former is operated under Single Stroke and Continuous Running modes for guaranteeing the safety of die and leaving biggest space for operation and adjustment.
Thanks to swing type pneumatic gripping mechanism, the gripping capacity is adjustable and clamping power is stable even at high working speed. If the first gripper meets the wire in short size, it can open the jaw for release automatically, however the machine will stop and give the alarm simultaneously.
Pressing and feeding wire is actuated by pawl via the control of air cylinder, the pawl is fixed an auto-raise device, when the pawl goes back, it can raise, so the friction and noise can be eliminated, further more this device can prevent the ratchet running in reverse direction. However, there are two overdrive clutches fixed in the feeding course, it can guarantee the feed being beyond retreat.
There is imported converter available in electrical system, so it is easy to run the former with stepless variable drive PLC also is used for automatically inspecting the working mode of the former with the functions of fault alarm and fault display.
Touch screen and man-machine dialogue numerical control system are optional for meeting customer's requirement, they are used for setting the length of thread pipe of rear knock out, the length of barrier and the feeding length, it is convenient for quick die change. This system has a memory capacity of 99 mnemonic modules for meeting the requirement of quick die change.


Specification

Model	Unit	RBF-63S	RBF-83S	RBF-103S	RBF-103L	RBF-133S	RBF-133L
Forging Station	NO.	3	3	3	3	3	3
Forging force	Kgs	35.000	60.000	80.000	80.000	120.000	120.000
Max.cut-off dia.	mm	φ8	φ10	φ12	φ12	φ15	φ15
Max.cut-off length	mm	80	115	135	185	190	260
Output rate	pcs/min	150-240	120-200	100-160	85-140	80-120	60-100
P. K. O. stroke	mm	12	18	20	30	30	30
K.O stroke	mm	70	92	118	160	160	230
Main ram stroke	mm	110	160	190	262	270	380
Main motor power	Kw	11	15	18.5	22	37	37
Overall dims. Of cut off die	mm	φ30*45L	φ50*50L	φ45*59L	φ45*59L	φ63*69L	φ63*69L
Overall dims. Of punch die	mm	φ40*90L	φ45*125L	φ53*115L	φ53*115L	φ60*130L	φ60*229L
Overall dims. Of main die	mm	φ50*85L	φ60*130L	φ75*135L	φ75*185L	φ86*190L	φ86*305L
Die pitch	mm	60	70	90	94	110	110
Approx. weight	T	6.5	12	15	19.5	26	31
Applicable bolt size	mm	3-6	5-8	6-9	6-10	8-12.7	8-12.7
Shank length of blank	mm	10-65	15-90	15-110	20-165	20-150	50-220

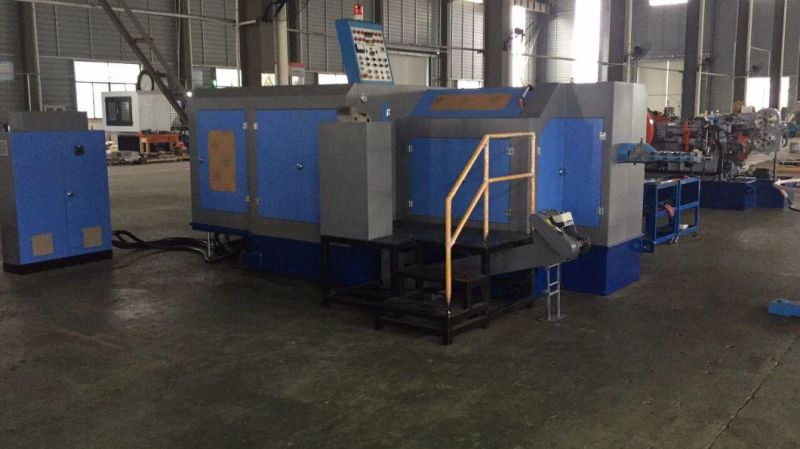

Workshop and package






Exhibitions in 2019








We can supply multi-station bolt former, 3 station, 4 station, 5 station and 6 station bolt former. We can guarantee high quality and reasonable price. We also have service center in India.  If you have any question, pls feel free to contact me.
