MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine

Hangzhou Suntech Machinery Co., Ltd.
  • Type:Welding Wire Production Machine
  • Usage:Wire, Rope Wire, Prestressed Steel Wire
  • Metal Material:Steel
  • Outlet Diameter:0.5-4.5mm
  • Max.Inlet Wire Dia.:6.5mm
  • Block Dia.:560mm

Base Info

  • Max. Number of Block:8
  • Certification:REACH, RoHS, ISO, CE
  • Condition:New
  • Transport Package:Seaworthy Packing
  • Trademark:SUNTECHMACH
  • Origin:China
  • HS Code:846330
  • Production Capacity:100 Sets,Year

Description

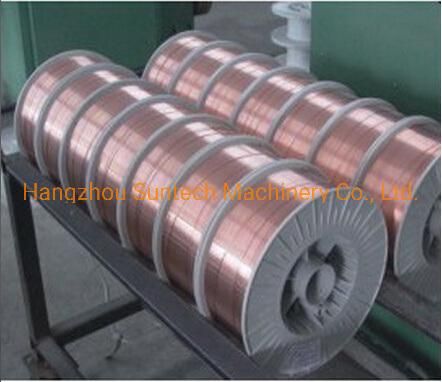

CO2 welding wireWire DiameterΦ0.8Φ1.0Φ1.2Φ1.6

Φ2.0


II. Process:

Pay off machine+ constant tension adjusting+wire supporting wheel and wire turning wheel + big turning device + mechanical degrease+ electrolytic acid pickling(rough cleaning )+electrolytic alkaline cleaning(fine cleaning)+ hot water wash+ former neutralize+electrolytic acid pickling - cool water clean+ activate acid cleaning + chemical copper coating+ cool water clean+Neutralized + hot water wash+ dry+ wire press fix wheel(roller) + big turning device + polishing drawing +take up machine


III. Photos of production line for reference:

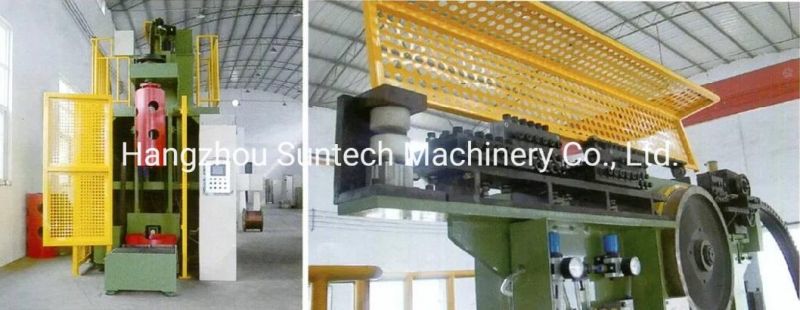

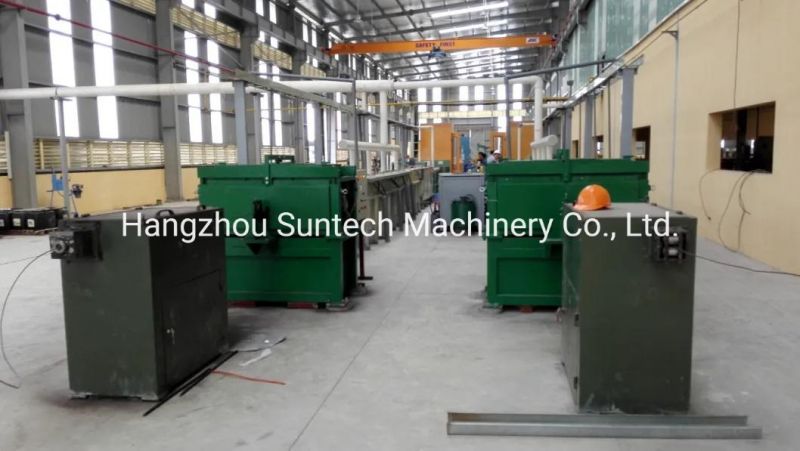

3.1 Surface pre-treatment:
MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine

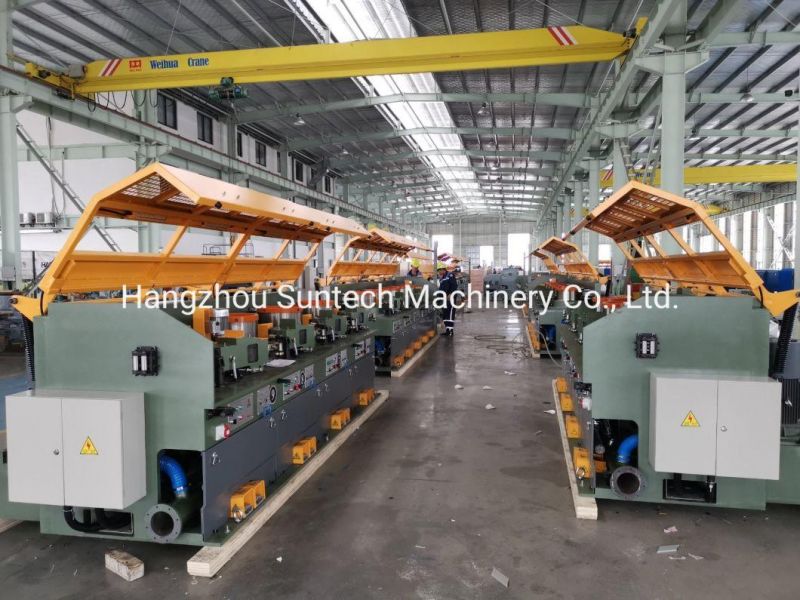

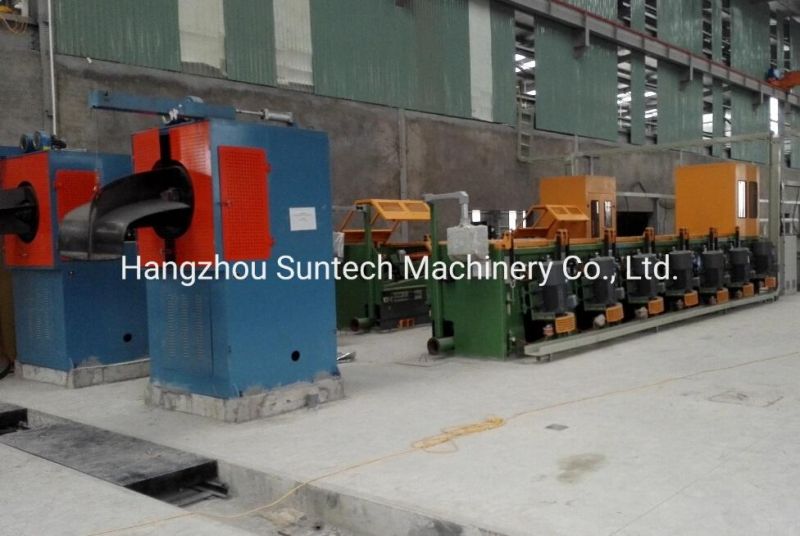

3.2 Rough drawing machine:
MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine

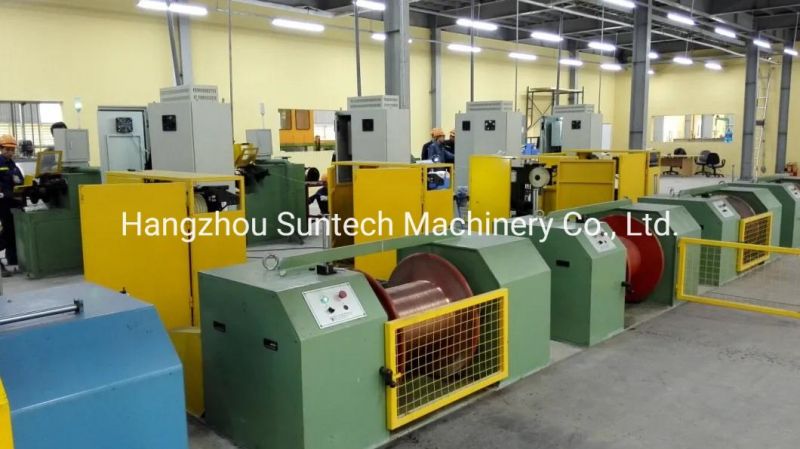

3.3 Fine drawing machine
MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine

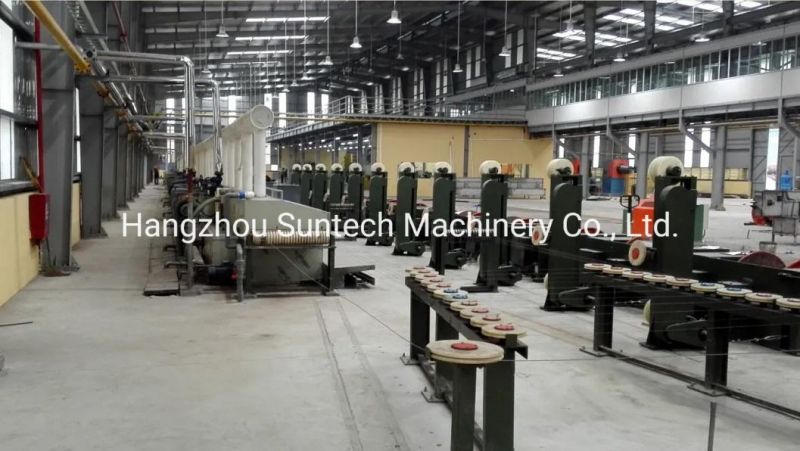

3.4 Multi-wire copper coating line:
MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine

3.5 Layer winding machine:
MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine



3.6 Precision rewinding machine:



MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine



3.7 Drum packing machine:
MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine

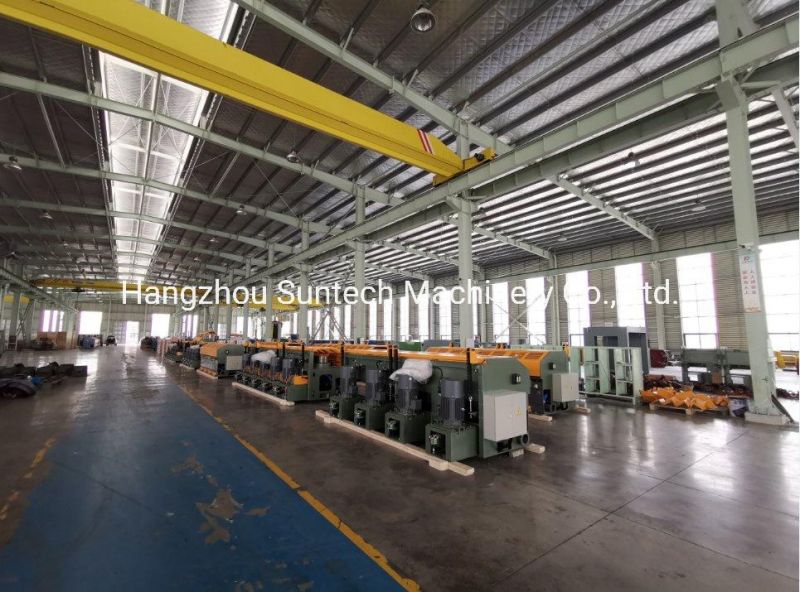

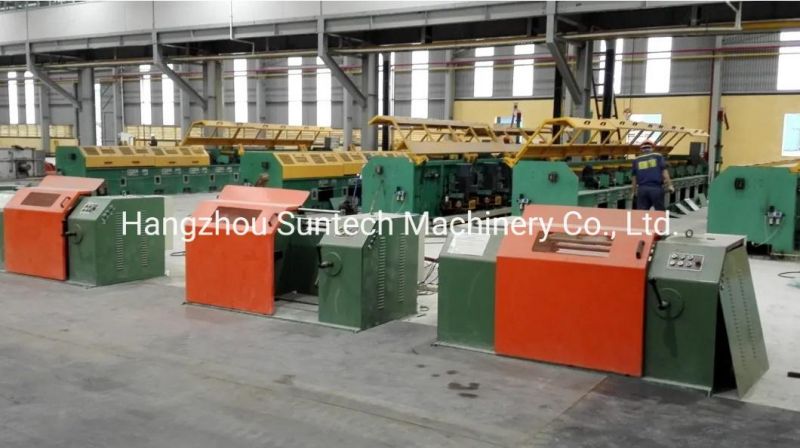

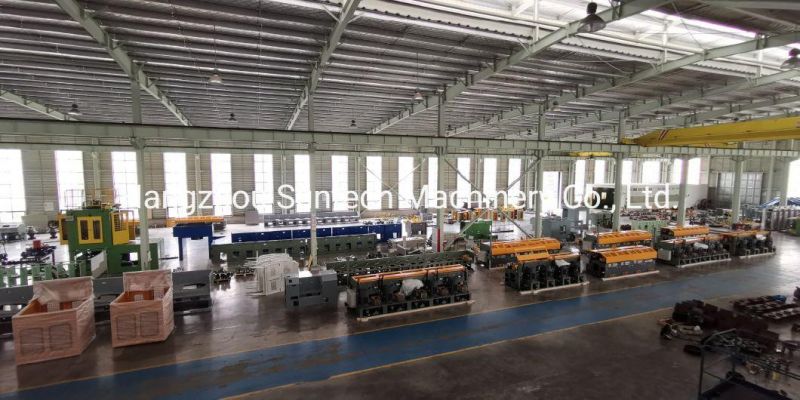

IV. Our Workshop for reference:
MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine

MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine

MIG CO2 Saw Welding Wire Production Line Welding Wire Making Machine with Copper Plating Machine and Layer Winding Machine
