China Headstand Type Skin Pass Coiler Single Stand Wire Drawing Machine
Hangzhou Suntech Machinery Co., Ltd.- Type：Headstand Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire
- Metal Material：Steel
- Outlet Diameter：<30mm
- Max.Inlet Wire Dia.：40mm
- Block Dia.：1400mm
Base Info
- Max. Number of Block：1
- Certification：REACH, RoHS, ISO, Ce
- Condition：New
- Transport Package：Seaworthy Packing
- Trademark：SUNTECHMACH
- Origin：China
- HS Code：846330
- Production Capacity：200 Sets,Year
Description
Basic Info.
Max. Number of Block 1 Certification REACH, RoHS, ISO, Ce Condition New Transport Package Seaworthy Packing Trademark SUNTECHMACH Origin China HS Code 846330 Production Capacity 200 Sets/YearProduct Description

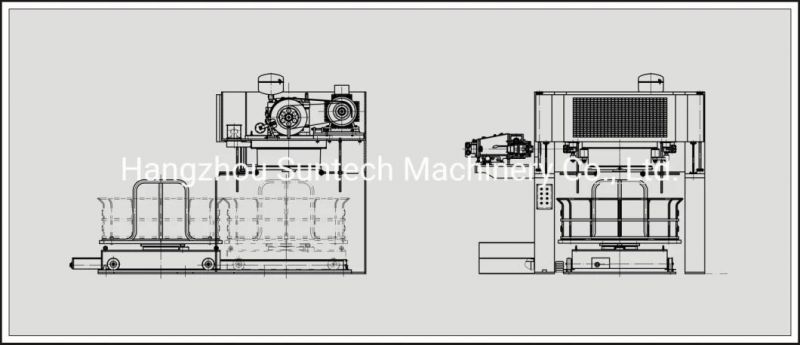

Headstand Type Wire Drawing Machine
I. Features of Machine:1) Transmission system:The wire drawing machine adopts the transmission way of AC frequency conversion motor+ joint group narrow V belts+ decelerator with hard gear surface+ joint group narrow V belts.
2) Blocks: The block is accurately made of high qualityductile cast iron, sprayed with tungsten carbide.The block surface fineness Ra≥0.8, the surface rigidity is ≥HRC60.
3) Die box: Die box is composed of "#shape" rollers, lubricating chamber, and die chamber. Die box is welded by steel plates and can be adjusted towards right, left, up and down. Inlet water volume is adjusted by ball valve. II. Main Technical Parameters:
| No. | Item | Unit | Data |
| 1 | Inlet diameter | mm | Max.40mm |
| 2 | Capstan diameter | mm | Φ500-φ1400mm |
| 3 | compression ratio | % | 10%-25% |
| 4 | Surface of block | With tungsten coating, ≥HRC58 | |
| 5 | Main Motor power | KW | 37KW-150KW |
| 6 | Cooling of block | Water cooling + Air cooling | |
| 7 | Trolley power | KW | 1.7KW |

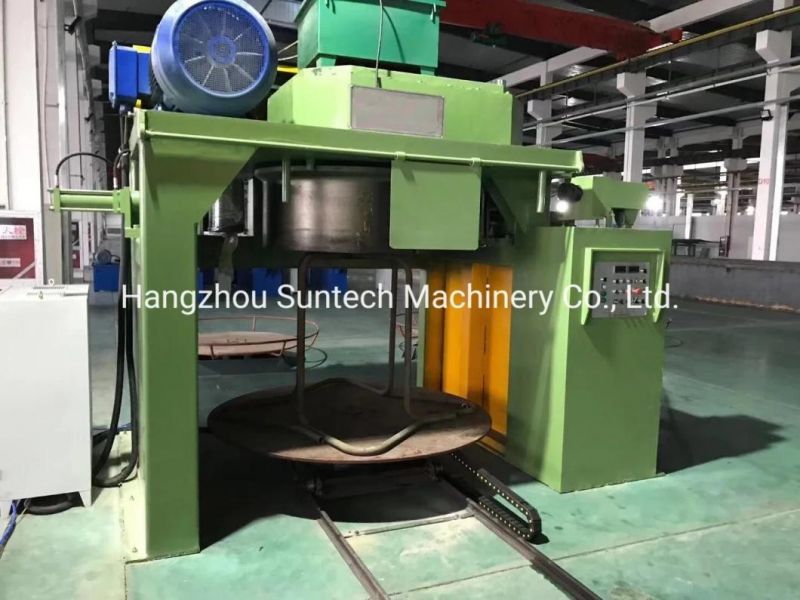

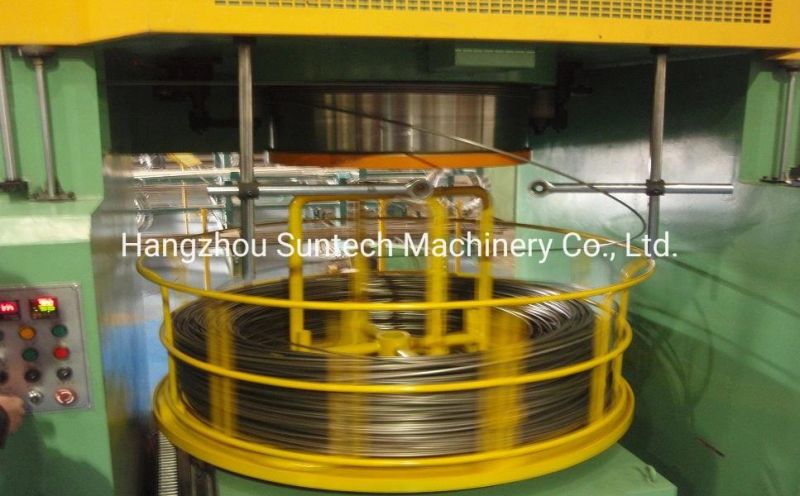

III. Details of machine for reference:
IV. Our Workshop:
VI. Clients list for reference:
